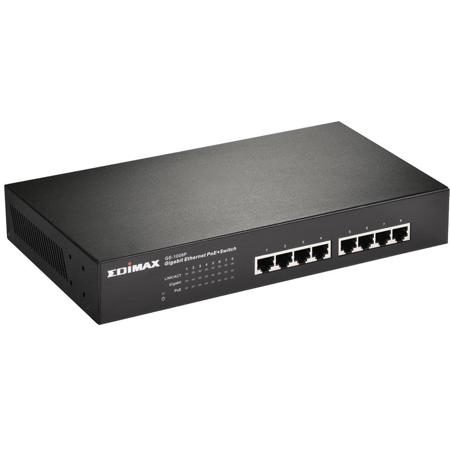

Edimax GS-1008P 8-Port Gigabit Ethernet PoE+ Switch

Edimax GS-1008P 8-Port Gigabit Ethernet PoE+ Switch

SKU: EDMGS1008P
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Edimax GS-1008P Specifications

  • Standards

    IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3af/802.3at PoE
    IEEE 802.3x Flow Control
    IEEE 802.3az Energy Efficient Ethernet

  • Filtering/Forwarding Rates

    1000Mbps Port - 1,488,000pps
    100Mbps Port - 148,800pps
    10Mbps Port - 14,880pps

  • Transmission Media

    10BASE-T Cat. 3, 4, 5 UTP/STP
    100BASE-TX Cat. 5 UTP/STP
    1000BASE-T Cat. 5E UTP/STP

  • LED Indicators

    Power: Green LED
    LNK/ACT: Green LED (Port 1 - Port 8)
    PoE: Green LED (Port 1 - Port 8)

  • Power Requirement

    100 to 240V AC, 50/60Hz
    Consumes 5 Watts (Max)

  • PoE Power Budget

    145W
    PoE Ports Full Load:
    30W x 4P = 120W
    15.4W x 8P = 123.2W

  • Temperature

    Operating: 0 to 50deg.C
    Storage: -40 to 70deg.C

  • Humidity

    Operating:10 to 90% RH (non-condensing)

  • Certifications

    FCC Class B, CE

  • Dimensions (L x W x H)

    266 x 184 x 44 mm / 10.47 x 10.47 x 1.73"

  • Weight

    1.5 kg / 3.30 lbs

About Edimax GS-1008P

The Edimax GS-1008P is an 8-port 10/100/1000BASE switch with 8 PoE ports, designed for use in small or medium sized network environments. This product is compact in size, making it ideal for users with limited space. It also gives users the option of installing it in a 19" cabinet with rack-mount kits or underneath a desk.

Edimax GS-1008P Features

  • The GS-1008P features 8 IEEE 802.3at Power over Ethernet (PoE) ports, which supply up to 30 watts of power per port. It can convert standard 100-240V AC power into low-voltage DC, which runs over existing LAN cables to supply power to IEEE 802.3at compliant network accessories
  • The standard Cat-5 Ethernet cable is used to link the GS-1008P and the powered devices. This Ethernet cable can transmit both data and power. No separate power cable is needed for the powered devices, thus reducing installation time and costs
  • Since the fan-less design ensures quiet operation in small office spaces, the GS-1008P is an ideal solution for SOHO environments

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • It can convert standard 100-240V AC power into low-voltage DC
  • 8 IEEE 802.3at Power over Ethernet (PoE) ports 30ws per port
  • No separate power cable is needed
  • This Ethernet cable can transmit both data and power
  • Since the fan-less design
