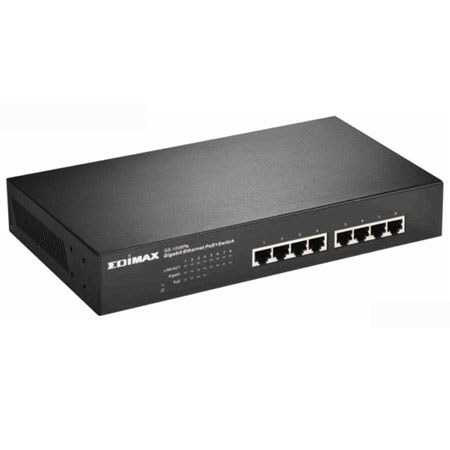

Edimax GS-1008PH 8-Port Gigabit Ethernet Switch With 4 PoE+ Ports

Edimax
SKU: EDMGS1008PH MFR: GS-1008PH
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Our Price

$121.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • PoE Switches & Modules

About Edimax GS-1008PH

The Edimax GS-1008PH is an 8-port 10/100/1000BASE switch with 4 PoE ports, designed for use in small or medium sized network environments. This product is compact in size, making it ideal for users with limited space. It also gives users the option of installing it in a 19" cabinet with rack-mount kits or underneath a desk.

Edimax GS-1008PH Features

  • The GS-1008PH features 4 IEEE 802.3at Power over Ethernet (PoE) ports, which supply up to 30 watts of power per port. It can convert standard 100-240V AC power into low-voltage DC, which runs over existing LAN cables to supply power to IEEE 802.3at compliant network accessories
  • The standard Cat-5 Ethernet cable is used to link the GS-1008PH and the powered devices. This Ethernet cable can transmit both data and power. No separate power cable is needed for the powered devices, thus reducing installation time and costs
  • Since the fan-less design ensures quiet operation in small office spaces, the GS-1008PH is an ideal solution for SOHO environments

Edimax GS-1008PH Specifications

Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3af/802.3at PoE
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet
Filtering/Forwarding Rates
1000Mbps Port - 1,488,000pps
100Mbps Port - 148,800pps
10Mbps Port - 14,880pps
Transmission Media
10BASE-T Cat. 3, 4, 5 UTP/STP
100BASE-TX Cat. 5 UTP/STP
1000BASE-T Cat. 5E UTP/STP
LED Indicators
Power: Green LED
LNK/ACT: Green LED (Port 1 - Port 8)
PoE: Green LED (Port 1 - Port 4)
Power Requirement
100 to 240V AC, 50/60Hz
Consumes 5 Watts (Max)
PoE Power Budget
75W
PoE Ports Full Load: 0W x 2P = 60W
15.4W x 4P = 61.6W
Temperature
Operating: 0 to 50deg.C
Storage: -40 to 70deg.C
Humidity
Operating:10 to 90% RH (non-condensing)
Certifications
FCC Class B, CE
Dimensions (L x W x H)
266 x 184 x 44 mm / 10.47 x 10.47 x 1.73"
Weight
1.35 kg / 2.97 lbs
Mfr #
GS-1008PH
SKU
EDMGS1008PH
