Item Includes
Edirol/Roland Multi Format Converter - Owner's Manual - Rubber Feet x 4 - Power Cord - Edirol/Roland 1 Year Limited Warranty
|
Description

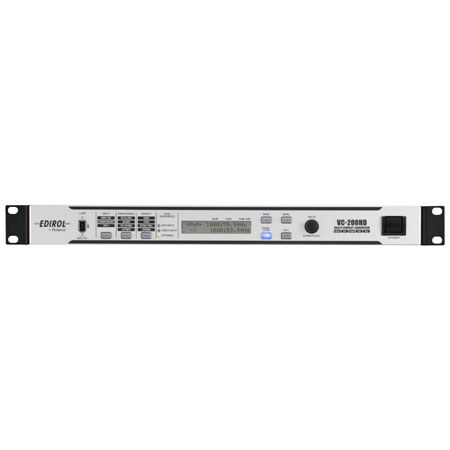

The Edirol/Roland VC-200HD Bi-Directional Multi-Format Converter with Audio Delay from Edirol / Roland is a device designed to convert the format of a wide variety of video and audio signals. This model is designed to work with HDV, DV, component and DVI video signals and IEEE1394 and analog audio signals. It will also accept signals and direct connections from RGB sources. Output devices such as projectors and flat-panel displays can be directly connected to this unit.
Conversion is managed with high-quality A/D and D/A converters for input and output along with internal 4:4:4 10-bit signal processing. The device is also compatible with a wide variety of HDV cameras and VTRs from Sony, Canon and JVC and offers a processor for encoding and decoding HDV in real time, as well as simultaneous processing of the audio signal.
It also offers automatic detection of the input source and simultaneous output of the converted signal to multiple formats, which enables the recording or display of a single source to multiple devices. Other features include bi-directional conversion & scaling, genlock with external devices, time code and embedded audio and an audio delay function. |
Features
 |
Designed for the Highest Quality Image: The VC Series uses high quality A/D and D/A converters for input and output along with internal 4:4:4 10 bit signal processing. From simple format conversion to MPEG encode/decode to complex frame rate conversions, the VC Series delivers professional results. |
|
Compatible with HDV devices: Compatible with wide variety of HDV cameras and VTR's from Sony, Canon and JVC, the VC Series offers a high quality processor for encoding and decoding HDV in real-time. EDIROL's audio technology also makes simultaneous processing of the audio signal possible. |
|
Supports 24p Frame Rates: Cinema frame rates like 24p and 23.98p are now supported to enable conversion of footage shot with a variety of cameras. Supported frame rates vary depending on Input/Output terminals. |
|
4-Point Gamma Correction: The newly added 4 points Gamma Correct function enables adjustment of bright/dark part independently. Enhances images to have a more film-like color. |
|
Image Quality: Carefully optimized algorithm of the built-in scaler has resulted in further improvements in the image quality of the VC. Highly accurate processing is achieved in all types of conversion - up, down and cross conversion. |
|
SDI Thru Output Function: You can select the SDI (HD/SD) output to be pre-processor or post-processor. This enables a monitor output or split output capability. |
|
Copy Protection on i.LINK output: You can add CGMS-D (Copy Generation Management System - Digital) to the output signal. This enables limitation to copy of digital content. |
|
Remote Control: You can now remotely control parameter setup of the VC from external devices, like a PC, via RS-422A Remote Terminal. This can be also used for parameter data backup. |
|
User Presets: Parameters like input signal, conversion or processing can be saved to an internal memory. Up to 3 presets can be saved and enables convenient recall. |
|
Auto format detection and simultaneous output from multiple terminals: The VC 300HD/VC-200HD features automatic detection of the input source and simultaneous output of the converted signal to multiple terminals such as SDI, IEEE 1394, DVI and analog component. |
|
Bi-directional conversion and scaling: Bi-directional conversion of different formats including 59.94p, 50i, etc. are possible with the VC Series. Multiple resolutions like 480i/p,720p or 1080i can be input/output along with NTSC/PAL conversion. |
|
Gen lock with external devices: The input and output to and from the VC series can be gen-locked with external devices. The VC supports variety of sync signals including analog BB, Bi-level (SD) or Tri-level (HD). |
|
Time code and embedded audio: When performing HD-SDI/SDI <> HDV/DV conversion, the VC Series can pass the original time code and audio stream signals. The audio embedded in the HD-SDI or SDI signal can be separated and sent from the analog outputs. |
|
Audio Delay Function: Audio can be precisely delayed by milliseconds or frames to compensate for the video delay caused by frame synchronizing or conversion processing. The Audio Delay function makes the perfect "lip sync" possible. |
Specifications
| Video I/P IEEE1394 (i.LINK) | HDV: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
DV: 480/59.94, 576/50 |
| Video I/P Component | Y/Pb/Pr: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p,480/59.94p, 576/50p, 480/59.94i, 576/50i |
| Video I/P DVI-I | Digital (RGB):1600x1200/60Hz, 1400x1050/60/75Hz,1280x1024/60/75Hz, 1280x768/60Hz,1280x960/60Hz, 1152x864/75Hz, 1024x768/60/75Hz, 800x600/60/75Hz,640x480/60/75Hz
Analog (Y/Pb/Pr):1024x768/60Hz, 800x600/60/75Hz,640x480/60/75Hz |
| Video I/P HD-SDI/SDI (VC-300HD Only) | 1080/59.94i, 1080/50i, 720/59.94p, 720/50p,480/59.94i, 576/50i |
| Video I/P REF | BNC Type Black Burst, Bi-level, TriLevel Sync |
| Video I/P Video Sampling Rate | SD: 4:4:4 (Y/Cb/Cr), 10 bits, 13.5 MHz
HD: 4:4:4 (Y/Pb/Pr), 10 bits, 74.1758 MHz/74.25 MHz
RGB: 4:4:4 (R/G/B), 10 bits, 25 MHz to 90 MHz |
| Video Sampling Rate | SD: 4:4:4 (Y/Cb/Cr), 10 bits, 13.5 MHz
HD: 4:4:4 (Y/Pb/Pr), 10 bits, 74.1758 MHz/74.25 MHz
RGB: 4:4:4 (R/G/B), 10 bits, 25 MHz to 90 MHz |
| Video O/P IEEE1394 (i.LINK) | HDV: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
DV: 480/59.94i, 576/50i |
| Video O/P Component | Y/Pb/Pr: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 480/59.94p, 576/50p, 480/59.94i, 576/50i |
| Video O/P DVI-I | Digital (RGB):1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 480/59.94p, 576/50p, 480/59.94i, 576/50i
Analog (Y/Pb/Pr):1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 480/59.94p, 576/50p, 480/59.94i, 576/50i |
| Video O/P HD-SDI/SDI (VC-300HD Only) | 1080/59.94i, 1080/50i, 720/59.94p, 720/50p,480/59.94i, 576/50i |
| Video O/P REF | BNC Type, Loop Thru Output |
| Audio I/P IEEE1394 | HDV: MPEG1 Layer II 16 bit 48 k Hz 384 k bps
DV: Linear PCM 16 bit 48 k Hz,Nonlinear PCM 12 bit 32 k Hz(2ch) |
| Audio I/P Analog | Balanced XLR Type (ch1,ch2):+4 dBu, -2 dBu, -4 dBu, -10 dBu Selectable
Unbalanced RCA phono type(ch3,ch4):+0 dBu, -6 dBu, -8 dBu, -14 dBu Selectable
Audio Sampling Rate: 24 bit, 48 k Hz / 32 k Hz |
| Audio I/P HD-SDI/SDI Embedded Audio | Linear PCM 24 bit 48 k Hz (VC-300HD Only) |
| Audio I/P IEEE1394 | HDV: MPEG1 Layer II 16 bit 48 k Hz 384 kbps
DV : Linear PCM 16 bit 48 k Hz,Nonlinear PCM 12 bit 32 k Hz(2ch) |
| Audio I/P Analog | Balanced XLR Type (ch1,ch2:+4 dBu, -2 dBu, -4 dBu, -10 dBu Selectable
Unbalanced RCA phono type(ch3,ch4): +0 dBu, -6 dBu, -8 dBu, -14 dBu Selectable
Audio Sampling Rate: 24 bit, 48 k Hz / 32 k Hz |
| Audio I/P HD-SDI/SDI Embedded Audio | Linear PCM 24 bit 48 k Hz(VC-300HD Only) |
| Video Processing Scaling | Scaling between the specified input and output |
| Video Processing Frame Sync | Built in frame synchronizer and genlock to external device |
| Video Processing Frame Rate Conversion | From 59.94 to 50 Hz etc. |
| Video Processing I/P Conversion: | De-interlace function built-in |
| Audio Processing Delay | Adjustment with Milli-Second or Frame |
| Audio Processing Sample Rate Conversion | From 32 to 48 k Hz etc. |
| Video Connectors | IEEE1394 Connector(i.LINK)6-pin Type, conforms to IEEE1394, HDV standards, Same connector on front and rear |
| COMPONENT Input Connector | HD/SD Y/Pb/Pr BNC Type 75 ohms, Bi-level, TriLevel Sync |
| DVI-I Input Connector | DVI 29pin single link RGB (8 bit each)
Digital RGB dot clock: 25-161MHz (VGA to UXGA)
Analog RGB: R/G/B 0.7 Vp-p, 75 ohms, H/V 5VTTL, RGB dot
clock: 25-90MHz(VGA to XGA) |
| HD-SDI/SDI Input Connector | BNC Type Supports embedded audio Conforms to SMPTE259M, SMPTE272M, SMPTE292M, SMPTE299M(VC-300HD Only) |
| COMPONENT Output Connector | HD/SD Y/Pb/Pr BNC Type 75 ohms, Bi-level, TriLevel Sync |
| DVI-I Output Connector | DVI 29pin single link RGB (8 bit each)
Digital RGB: same timing as analog component
Analog Component: Y/Pb/Pr 75 ohms |
| HD-SDI/SDI Output Connector | BNC Type Supports embedded audio Conforms to SMPTE259M, SMPTE272M, SMPTE292M, SMPTE299M(VC-300HD Only) |
| Audio Connectors | Input Jacks 1ch, 2ch XLR type, 20 k ohms
Input Jacks 3ch, 4ch RCA phono type, 20 k ohms
Output Jacks 1-2 XLR type, 600 ohms
Output Jacks 3-4 RCA phono type, 1 k ohms |
| Power Supply | AC 117 V, AC 230 V, AC 240 V (50/60 Hz) AC 220 V (60 Hz) |
| Power Consumption | 60 W |
| Dimensions | 19 (16-15/16 without Rack Mount Bracket) (W) x 12-3/16 (D) x 1-3/4 (H) inches
((482 (430 without Rack Mount Bracket) (W) x 309 (D) x 44 (H) mm)) |
| Weight | 9 lbs 15 oz (4.5 kg) |
| Warranty | Edirol/Roland 1 year limited warranty |
| | |
|
