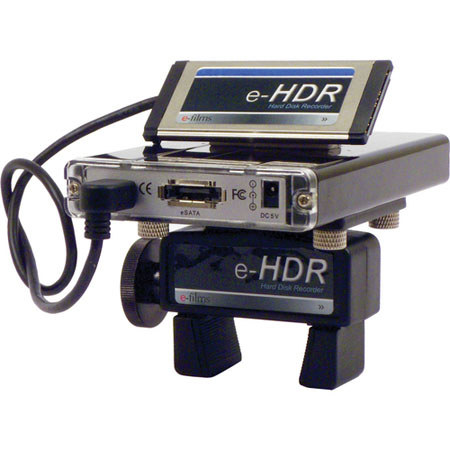

E-films Hard Disk Recording System for Sony EX Cameras
E-films

E-films Portable Hard Disk Recording System with Powered Expresscard and Cable, HDD Enclosure, Camera Handle Mount, Carry Case

SKU: EFEHDRHDD MFR: 1604
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$217.55
Free shipping
Qty:

Add to Wishlist

About this item

The E-films Hard Disk Recording System e-HDRM-HDD is optimized to give any Sony EX camera user the ability to record Full HD directly to a Hard Disk Drive (HDD) from their camera. Insert the Expresscard into a free slot on the camera, mount the e-HDRM unit on the camera handle, plug the Expresscard cable into the e-HDR and press record.

The unit consists of a custom made Expresscard and cable, quick release camera handle mounting system and HDD enclosure. Mounting the unit to the camera takes seconds and it is ready to record, 5 hours on EX1 and EX3 and for all other cameras, (EX1R, PMW-320, PMW-350, PMW-500, F3), the size of the HDD attached determines the record time, (e.g. 500GB will record 30hrs of 1920x1080 - 35Mb/Full HD). Once recording has finished, the unit can be attached to the edit station via it's own USB2.0 or high speed e-SATA II connectors.

There is no need to download the footage for editing, you can edit directly off the unit. The camera will swap to and from SxS or E-films - MxR, e-LCR and MxR Extreme cards and even swap to another e-HDRM-HDD, for very long recording projects. Some users prefer to complete the project on the e-HDRM and replace the HDD unit when finished, so they can archive the complete project.

What's Included With This Item

  • E-films Portable Hard Disk
  • Expresscard
  • Heavy Duty Cable with 5pin Mini-USB Connector
  • USB2.0 and e-SATA Connectors
  • Heavy Duty Camera Handle Clamp
  • Zipper Case
  • E-films Warranty

Key Features

  • USB2.0 and e-SATA connectors
  • Enables Hi-Speed USB to SATA II 3.0G, twice the download speed of other SATA I solutions
  • PCB: Compliance with USB 2.0 electrical
  • PCB: Compliance with Serial ATA International Organization: Serial ATARevision 2.5
  • PCB: Support SATA 1.5G/3.0G Speed Negotiation
  • PCB: Support SATA II Asynchronous Signal
  • PCB: Support USB 2.0 High-Speed and Full-Speed Operation
  • PCB: Signal Bit Rate 3.0 Gbps/SATA and 480 Mbps/USB
  • PCB: Can be powered by USB connector or by 5v input
  • PCB: Sleek Black Aluminum design
  • PCB: Using highest speed JMicron chipset
  • PCB: Use any SATA I or SATA II HDD
  • Camera Handle: Heavy duty camera handle support
  • Camera Handle: 2 second tool-less attach and release from camera
  • Camera Handle: Tool less mount of enclosure to support clamp
  • Camera Handle: Ability to mount other items like radio mike, lights etc

Technical Specs

Compatibility Sony EX camera
Signal Bit Rate 3.0 Gbps/SATA and 480 Mbps/USB
