Eizo

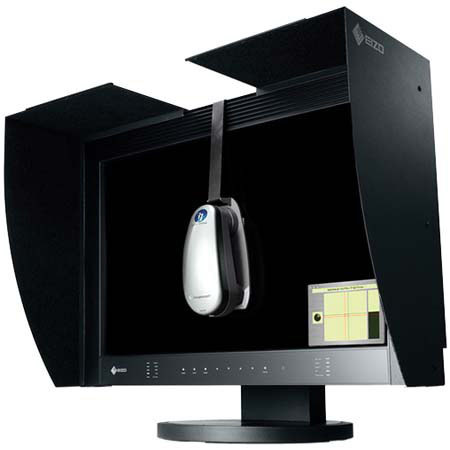

Eizo CG221 ColorEdge 22.2" Color TFT LCD Graphic Monitor with Hood, 1920 ® 1200 Native Resolution, Color: Black, with Height Adjustable Stand
Mfr. Part: CG221BK SKU: EICG221BK
enlarge image
|
|
 |
We ran out of this Item Temporarily.
Please note: You can order this now and have us ship it as soon as it arrives.
We will not charge your card for any backordered items, until it is ready to actually ship. |
|
|
Item Includes
Eizo CG221 ColorEdge 22.2" LCD Monitor - AC Power Cord - Signal Cables (DVI-D - DVI-D, DVI-I - D-Sub mini 15 pin) - USB Cable - Setup Guide - EIZO LCD Utility Disk (ColorNavigator Software, HTML User's Manual, ICC Profile) - Adjustment Certificate - ScreenCleaner - Monitor Hood - Quick Reference - Warranty Registration Card - Eizo 5 Year Warranty
|
Description
This is an EIZO CG221 ColorEdge 22.2" Color TFT LCD graphic monitor with hood. The CG221 reproduces the Adobe RGB color space and incorporates a newly developed integrated circuit to produce uniform color and brightness from corner to corner. With the bundled ColorNavigator software and a 12-bit look-up table, the CG221 delivers accurate and reliable hardware calibration so soft proofing can be done with confidence.
The CG221 has an expanded color space that reproduces Adobe RGB, meaning it not only covers the sRGB color space supported by many standard monitors, but also CMYK color spaces used for printing. The extra-wide 22.2-inch screen supports 1920 x 1200 resolution (16:10 aspect ratio), meaning that it can display a two-page A4 spread with no clipped edges.
To ensure that the ColorEdge CG221 produces the most accurate and consistent color gradations possible, EIZO carefully measures and sets every shade of R, G, and B from 0 - 255 on the production line with the monitor's 12-bit Look-Up Table (LUT), to produce a monitor gamma value of 1.8. If a different value is preferred, the bundled ColorNavigator software can be used to assign a value ranging from 1.0 - 2.6 in increments of 0.1. |
Features
 |
Brightness and color uniformity from corner-to-corner with Eizo's latest ASIC (Application Specific Integrated Circuit). |
|
16-bit internal processing for grayscale rendering that is on a par with high-end CRT monitors. |
|
Monitor hood with sliding top cover and screen cleaner kit are bundled with the monitor. |
|
Adobe RGB Coverage: The CG221 has an expanded color space that reproduces Adobe RGB, meaning it not only covers the sRGB color space supported by many standard monitors, but also CMYK color spaces used for printing. |
|
22.2-Inch Screen Supports 1920 ® 1200 Resolution: The extra-wide 22.2-inch screen supports 1920 ® 1200 resolution (16:10 aspect ratio), meaning that it can display a two-page A4 spread with no clipped edges. |
|
Brightness and Color Uniformity with 12-Bit LUT: Achieving uniform levels of brightness and color across the screen has been all but impossible with LCD monitors. To correct this problem, EIZO has developed an ASIC (Application Specific Integrated Circuit) and incorporated it into the ColorEdge CG221. |
|
16-bit Processing: The 16-bit internal calculation produces grayscale rendering that is on a par with high-end CRT monitors. |
|
Factory Adjustment of Gamma: To ensure that the ColorEdge CG211 produces the most accurate and consistent color gradations possible, EIZO carefully measures and sets every shade of R, G, and B from 0 - 255 on the production line with the monitor's 12-bit Look-Up Table (LUT), to produce a monitor gamma value of 1.8. |
|
ColorNavigator Calibration Software: This EIZO-developed software comes bundled with ColorEdge models and offers 12-bit hardware calibration when used with a GretagMacbeth measurement device. |
|
Macintosh ADC Support: Supports the Macintosh ADC (Apple Display Connector) port with an ADC-DVI converter (sold separately). |
Specifications
| Panel Size and Type | 56.4 cm (22.2") TFT color LCD panel |
| Viewing Angles (H, V) | 170°, 170° (at contrast ratio of 10:1) |
| Brightness | 200 cd/m2 (maximum)
100 cd/m2 (recommended) |
| Contrast | 400:1 |
| Response Time | 30 ms (typical) |
| Native Resolution | 1920 ® 1200 |
| Active Display Size (H, V) | 478 ® 299 mm / 18.8 ® 11.8" |
| Viewable Image Size | Diagonal: 563 mm / 22.2 " |
| Pixel Pitch | 0.249 ® 0.249 mm |
| Display Colors | 16.77 million from a palette of 68 billion |
| Available Cabinet Colors | Black |
| Dot Clock | Analog: 202.5 MHz, Digital: 162 MHz |
| Scanning Frequency (H, V) | Analog: 31- 94 kHz, 49 - 86 Hz
Digital: 31- 76 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz) |
| Input Signals | Analog: RGB Analog, Digital: DVI Standard 1.0 |
| Input Terminals | DVI-I 29 ® 2 (switchable) |
| USB Ports / Standard | 1 upstream, 2 downstream / USB Standard Rev. 2.0 |
| Plug & Play | VESA DDC 2B |
| Power Requirements | AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz |
| Power Consumption | 100 W (typical) |
| Power Save Mode | Less than 2 W |
| Height Adjustment Range | 100 mm |
| Tilt / Swivel / Pivot | 30° Up, 3° Down / 35° Right, 35° Left / - |
| Auto Brightness Functions | Auto Brightness Stabilization |
| Auto Adjustment Functions | Auto Adjustment, Range Adjustment |
| Display Mode Options | Fine Contrast (sRGB, Custom, Calibration, Emulation) |
| Screen Adjustment | Clock, Phase, Position, Resolution, Range Adjustment (Auto) , Signal Filter, Screen Size (full screen, enlarge, normal) , Smoothing (5 stages) , Border Intensity |
| Color Adjustment | Brightness, Temperature (in 500 K increments from 4,000 K - 10,000 K) , Gamma, Saturation, Hue, Gain, Independent 6-Color Control, Reset |
| Power Save Settings | Analog: PowerManager (VESA DPMS)
Digital: PowerManager (DVI DMPM) |
| Other Settings | Signal Settings, Input Priority, Product Information (product name, serial number, resolution, operating time) , OSD Menu Settings, Adjustment Lock, Languages (English, French, German, Italian, Japanese, Spanish, Swedish) , Off Timer, Reset |
| Certifications and Standards | c-Tick, CE, CB, UL (cT’Vus) , CSA (cT’Vus) , FCC-B, Canadian ICES-003-B, T’V/S, VCCI-B, EIZO Eco Products 2004 |
| Dimensions (W x H x D) | With Stand: 565 ® 452.5 - 552.5 ® 272 mm / 22.2 ® 17.8 - 21.8 ® 10.7 "
Without Stand: 565 ® 394.5 ® 101 mm / 22.2 ® 15.5 ® 4.0 " |
| Net Weight | With Stand: 14.5 kg / 31.9 lbs
Without Stand: 10.4 kg / 22.9 lbs |
| Warranty | Eizo 5 year warranty |
| | |
|
|
|
|
|
|
|
|
|
|
