Eizo

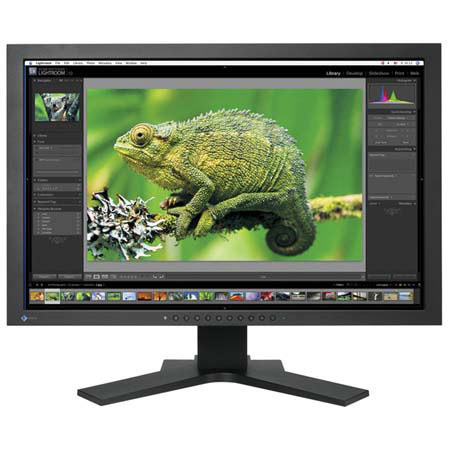

Eizo CG241W ColorEdge 24.1" Color TFT LCD Graphic Monitor with Hood 1920 x 1200 Native Resolution, Color: Black, with Height Adjustable Stand
Mfr. Part: CG241WBK SKU: EICG241WBK
|
|
 |
|
|
|
Item Includes
Eizo CG241W ColorEdge 24.1" Color TFT LCD Graphic Monitor - AC Power Cord - Signal Cables (DVI-D - DVI-D, DVI-I - D-Sub Mini 15 Pin) - USB Cable - Setup Guide - EIZO LCD Utility Disk (ColorNavigator CE Software, UniColor Pro Software, PDF User's Manual, ICC Profile) - Adjustment Certificate - ScreenCleaner - Monitor Hood - Quick Reference - 4 Screws for Mount Option - Warranty Card - Eizo 5 Year Warranty
|
Description
The Eizo CG241W ColorEdge 24.1" Color TFT LCD Graphic Monitor features 12-bit hardware calibration and a 6 ms response time which displays both still and moving images equally well, making it ideal for a wide range of high-end graphics work including pre-press, digital photography, video editing and post production.
Brightness and color compensation with EIZO's Digital Uniformity Equalizer (DUE) function for a Delta-E difference of 3 or less across the screen. It has 16-bit internal processing for grayscale rendering that is on a par with high-end CRT monitors. Monitor hood with sliding top cover and screen cleaner kit are bundled with the monitor. The ColorNavigator Calibration Software comes bundled with ColorEdge model and offers 12-bit hardware calibration when used with X-Rite or ColorVision measurement device. The wide gamut LCD panel reproduces 96% of the Adobe RGB color space so it can display most colors in a photograph taken in Adobe RGB mode.
It also covers CMYK color spaces used for printing so the monitor can produce a reliable soft proof when calibrated. The wide screen format with its 16:10 aspect ratio offers more horizontal viewing space than conventional monitors. Two applications such as a text document and web browser can be viewed side-by-side, or graphics applications can be opened and work palettes displayed simultaneously without any overlap. |
Features
 |
ColorNavigator Calibration Software |
|
Wide Color Gamut |
|
Widescreen Format |
|
Factory Adjustment of Gamma: To ensure that each ColorEdge CE monitor produces the most accurate and consistent color gradations possible |
|
6 ms Midtone Response Time: To enhance moving image playback capabilities, an overdrive circuit is included. An overdrive circuit vastly improves the LCD panel's response time for changing between midtones or gray levels, which is necessary to display color images without blurring |
|
Brightness Stabilization Function: Ensures stable brightness - necessary for the proper display of color - with EIZO patented technology. A drift correction sensor quickly stabilizes the brightness level after startup or coming out of power saving mode |
|
Protanopia and Deuteranopia Simulation in Real Time: Simulates two types of red-green color vision deficiency - protanopia and deuteranopia. The ColorEdge CG241W does all the color conversion processing in real time - even moving images |
|
Placement Flexibility: The stand is height adjustable through an 82 mm range and provides 40° tilt and 70° swivel so every user can easily set the ideal position. It also pivots 90° for portrait mode viewing |
Specifications
| Panel Size and Type | 61 cm (24.1") TFT color LCD panel |
| Viewing Angles (H, V) | 178°, 178° (at contrast ratio of 10:1) |
| Brightness | 300 cd/m2 (maximum)
120 cd/m2 or less (recommended) |
| Contrast | 850:1 |
| On/Off Response Time | 16 ms (typical) |
| Midtone Response Time | 6 ms (typical) |
| Native Resolution | 1920 ® 1200 |
| Native Resolution | 1920 ® 1200 |
| Active Display Size (H ® V) | 518.4 ® 324 mm |
| Viewable Image Size | Diagonal: 611 mm |
| Pixel Pitch | 0.270 ® 0.270 mm |
| Gamut Coverage sRGB | 98% |
| Gamut Coverage Adobe RGB | 96% |
| Display Colors | 16.77 million from a palette of 68 billion |
| Look-Up Table | 12-bits per color |
| Internal Processing | 16-bits per color |
| Cabinet Colors | Black |
| Dot Clock | Analog: 202.5 MHz
Digital: 164.5 MHz |
| Scanning Frequency (H, V) Analog | 24 - 94 kHz, 47.5 - 86 Hz |
| Scanning Frequency (H, V) Digital | 26 - 78 kHz, 47.5 - 63 Hz (VGA Text: 69 - 71 Hz) |
| Input Signals | Analog: RGB Analog
Digital: DVI Standard 1.0 |
| Input Terminals | DVI-I 29 pin ® 2 (switchable), HDCP supported |
| USB Port / Standard | 1 upstream, 2 downstream / USB Standard Rev. 2.0 |
| Plug & Play | VESA DDC 2B |
| Power Requirements | AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz |
| Power Consumption | 110 W (maximum) |
| Power Save Mode | Less than 2 W |
| Height Adjustment Range | 82 mm |
| Tilt / Swivel / Pivot | 40° Up, 0° Down / 35° Right, 35° Left / 90° |
| Auto Brightness Functions | Auto Brightness Stabilization, BrightRegulator |
| Auto Adjustment Functions (analog only) | Auto Adjustment, Range Adjustment |
| Display Mode Options | Fine Contrast (Custom, sRGB, Calibration, Emulation) |
| Screen Adjustment | Clock, Phase, Position, Resolution, Range, Signal Filter, Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity |
| Color Adjustment | Brightness, Independent 6-Color Control, Gamma, Temperature (in 500 K increments from 4,000 K - 10,000 K including 9,300 K), Saturation, Hue, Gain, Reset |
| Power Save Settings Analog | PowerManager (VESA DPMS), Off Timer |
| Power Save Settings Digital | PowerManager (DVI DMPM), Off Timer |
| Other Settings | Input Priority, Product Information (product name, serial number, resolution, operating time), OSD Menu Settings, Adjustment Lock, Languages (English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese), Beep, Reset |
| Certifications and Standards | CUDO certified mark, TCO'03, T’V/Ergonomics (including ISO 13406-2), T’V/GS, c-Tick, CE, CB, UL (cT’Vus), CSA (cT’Vus), FCC-B, Canadian ICES-003-B, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, CCC, EIZO Eco Products 2006 |
| Dimensions (W ® H ® D) | With Stand: 22.3 ® 18"- 21.2 ® 9.1" (566 ® 456 - 538 ® 230 mm)
Without Stand: 22.3 ® 15.6 ® 3.35" (566 ® 367 ® 85 mm) |
| Net Weight | With Stand: 24.3 lbs / 11 kg
Without Stand: 16.3 lbs / 7.4 kg |
| Warranty | Eizo 5 year warranty |
| | |
|
|
|
|
|
|
|
|
|
|
