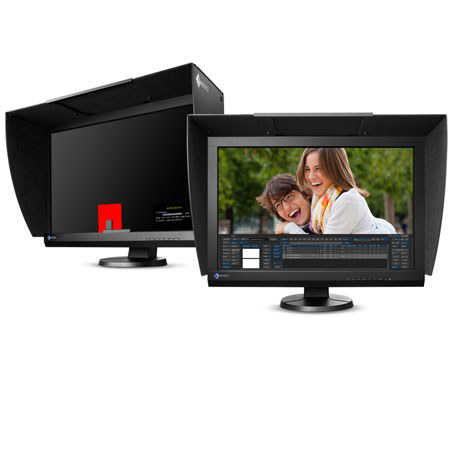

Eizo ColorEdge CG246 24.1" Hardware Calibration LCD Monitor with Hood, 1000:1 Contrast Ratio, 300 cd/m2 Brightness, DisplayPort and Dual DVI-I Inputs

SKU: EICG246WBK MFR: CG246BK
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,399.00 Special Price Available $78 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

Protect your investment

About the Eizo CG246

The Eizo ColorEdge CG246 24.1" Hardware Calibration LCD Monitor delivers outstanding color and performance for professionals who work with still or moving pictures. It has a wide color gamut, built-in calibration sensor, several presets for broadcast standards.

Eizo CG246 Includes

  • Eizo ColorEdge CG246 24.1" Hardware Calibration LCD Monitor
  • AC Power Cord
  • Signal Cables (DVI-D
  • DVI-D, Mini DisplayPort
  • DisplayPort)
  • USB Cable
  • Setup Guide
  • Eizo LCD Utility Disk (ColorNavigator Software, PDF User's Manual)
  • Adjustment Certificate
  • ScreenCleaner
  • Monitor Hood
  • Eizo 5 Years Warranty

Eizo CG246 Features

  • Automate your calibration with the built-in SelfCalibration sensor that is housed within the monitor's bottom bezel and swings up onto the screen only when calibrating. This sensor eliminates the need for a third-party calibration device and even operates in portrait mode
  • Using either the OSD menu or the bundled ColorNavigator software, you can schedule the monitor to self-calibrate at specific times. Even if the monitor is switched off or not connected to a computer, it will stick to its preset schedule and self-calibrate
  • The monitor can be correlated to the measurement results of an external calibration sensor. After correlating, the built-in sensor will automatically recalibrate to the settings
  • All ColorEdge models come with an ASIC (application specific integrated circuit) developed by EIZO to meet the needs of the graphics market. The ASIC has its own algorithms used in high-precision color processing to produce smooth color tones
  • From the time it is turned on it typically takes 30 minutes or longer for a monitor's brightness, chromaticity and tone characteristics to stabilize. EIZO has shortened this warm-up time by more than 75% to a mere 7 minutes
  • The monitor incorporates Eizo's patented digital uniformity equalizer (DUE) technology to ensure a Delta-E difference of 3 or less across the screen when the monitor leaves the factory
  • The gamma level for each ColorEdge monitor is adjusted at the factory. This is accomplished by measuring the R, G and B gamma values from 0 - 255, then using the monitor's 16-bit look-up table (LUT) to select the 256 most appropriate tones to achieve the desired value
  • A wide color gamut reproduces 97% of the Adobe RGB color space so images shot in RAW can be converted to Adobe RGB or images shot in Adobe RGB will be displayed correctly
  • The wide color gamut also ensures that the monitor reproduces almost the entire ISO-coated and US web-coated CMYK color spaces used in printing
  • Using the DisplayPort input, the monitor offers 10-bit simultaneous color display from a 16-bit look-up table which means it can show more than one billion colors simultaneously
  • The bundled ColorNavigator software makes calibration both simple and quick. Just input target values for brightness, white point and gamma. The built-in sensor directly utilizes the monitor's look-up table and creates an ICC profile within minutes
  • With content published on so many different types of printed and digital media it's critical to know how your clients will see color. A ColorEdge monitor and the bundled ColorNavigator software let you do just that as they are designed for both softproofing and digital device emulation
  • DisplayPort, HDMI and DVI-D inputs are included for connecting to various types of graphics boards, The HDMI input also offers direct connection with digital cameras
  • Two USB upstream ports allow two computers to be connected at once so it's not necessary to reconnect the USB cable when using the ColorNavigator software and switching between the two computers
  • Adjust the screen to the most comfortable angle for you and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt and swivel adjustments as well as portrait mode display
  • For dimly lit work environments like post production studios, the monitor comes with backlit control buttons and an on-screen button guide to indicate what each button is for
  • Most shading hoods can only be used in landscape mode, but this monitor comes bundled with a unique hood that is designed for portrait mode as well. Now you can keep the glare off your screen no matter which mode you work in
  • When viewing the screen from an angle in a dimly lit room, dark tones typically appear washed out due to the display characteristics of LCD backlights. The monitor has a high contrast ratio which allows the dark tones to retain their depth
  • Film is usually shot at 24 frames/second and looks unnatural when played back on a typical monitor that displays 60 frames/second. The HDMI input supports a video signal display rate of 1080/24p frames-per-second so you can edit the film as it was meant to be viewed
  • The HDMI input supports I/P (interlace/progressive) conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display
  • A 3D LUT is included which adjusts colors individually on an RGB cubic table. With the bundled ColorNavigator software's emulation function, the 3D LUT applies a film look to the image so creators can check how it will be seen by their audience
  • The 3D LUT also improves the monitor's additive color mixture (combination of RGB), which is a key factor in its ability to display neutral gray tones
  • A button on the front of the monitor provides quick access to several broadcast-standard color modes reset color modes: Rec. 709, EBU, SMPTE-C and DCI. In addition, sRGB and Adobe RGB modes are also available
  • A safe area marker designates the area of the screen that will be displayed when the monitor is connected to a particular device. This allows you to check that subtitles and other text will be visible. This color of the marker is changeable to ensure it remains with any imagery
  • For video editing or post production work, an overdrive circuit is included to reduce gray-to-gray response time to 7.7 ms and ensure that moving images look clean and sharp with a minimum of ghosting

Eizo CG246 Specifications

Panel Type IPS
Panel Size 24.1" / 61 cm (611 mm diagonal)
Native Resolution DisplayPort, DVI: 1920 x 1200 (16:10 aspect ratio)
HDMI: 1920 x 1080 (16:9 aspect ratio)
Display Size (H x V) 518.4 x 324 mm
Pixel Pitch 0.270 x 0.270 mm
Grayscale Tones DisplayPort: 1024 tones (a palette of 65281 tones)
DVI, HDMI: 256 tones (a palette of 65281 tones)
Display Colors DisplayPort: 1.07 billion from a palette of 278 trillion
DVI, HDMI: 16.77 million from a palette of 278 trillion
Viewing Angles (H / V, typical) 178deg., 178deg.
Brightness (typical) 300 cd/m2
Recommended Brightness for Calibration 120 cd/m2 or less
Contrast Ratio (typical) 1000:1
Response Time (typical) 7.7 ms (Gray-to-gray)
Wide Gamut Coverage (typical) Adobe RGB: 97%
Input Terminals DVI-I 29 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP)
Digital Scanning Frequency (H / V) DisplayPort, DVI: 26 - 78 kHz, 23.75 - 63 Hz (VGA Text: 69 - 71 Hz)
HDMI: 15 - 68 kHz, 23.75 - 61 Hz
Analog Scanning Frequency (H / V) 26 - 78 kHz, 47.5 - 61 Hz
USB Standard USB 2.0
Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption 98 W
Typical Power Consumption 41 W
Power Save Mode Less than 0.5 W
Standby Mode Less than 0.5 W
Power Management Power Save (VESA DPM, DisplayPort Version 1.1a and DVI DMPM)
Self-Calibration Yes
Brightness Stabilization Yes
Preset Modes Color Mode (Custom, Adobe RGB, sRGB, Rec709, EBU, SMPTE-C, DCI, Calibration)
Digital Uniformity Equalizer Yes
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Height Adjustment Range 128 mm
Tilt 30deg. Up, 0deg. Down
Swivel 344deg.
Pivot 90deg.
Hole Spacing (VESA Standard) 100 x 100 mm
Temperature 0 - 35 deg.C
Humidity (R.H., non condensing) 20 - 80 %
Dimensions (WxHxD) Landscape: 575x417-545x245.5mm / 22.63x16.41-21.45x9.66"
Portrait: 398x594.5-642.5x245.5mm / 15.66x23.40-25.29x9.66"
Without Stand: 575x398x75mm / 22.63x15.66x2.95"
Landscape with Hood: 582.5x425-553x369mm / 22.93x16.73-21.77x14.52"
Portrait with Hood: 406x602.5-650.5x369mm / 15.98x23.72-25.61x14.52"
Weight 9.9 kg / 21.8 lbs
Without Stand: 7.2 kg / 15.9 lbs
With Hood: 10.7 kg / 23.6 lbs
