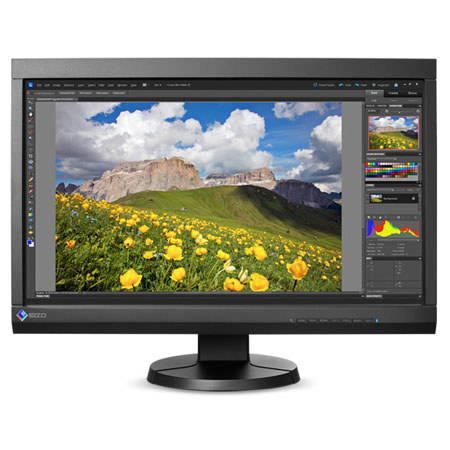

Eizo ColorEdge CS230 23" 1080p Hardware Calibration LCD Monitor with ColorNavigator Software, DisplayPort/DVI-I/HDMI Inputs, 2 USB 2.0, 6 Preset Modes

Eizo
SKU: EICS230BKCN MFR: CS230-BK-CN

Regular Price: $826.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $44.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $69.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $109.95
21% Off

Special Price

$655.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Ways To Save up to $60.00

Product Highlights

  • 6 preset modes are included
  • 23" Screen
  • 20" to 29" Computer Monitors
Eizo S230: Picture 1 regular $655.00

About Eizo S230

For limited time only, save 21.00% on the Eizo S230 dropping from $826.00 to $655.00 when you buy this item at Adorama.com and Shipping is free!.

Designed for entry-level users doing photo editing and other creative work, the Eizo ColorEdge CS230 23" 1080p Hardware Calibration LCD Monitor with ColorNavigator software offers professional features of other ColorEdge monitors like automatic color adjustment with the built-in SelfCorrection sensor.

ColorNavigator calibration software makes calibration simple and produces predictable color results. ColorNavigator works with a wide range of measurement devices and provides hardware calibration by directly utilizing the monitor's look-up table. The monitor's built-in correction sensor automatically maintains the calibration settings by self correcting at specific intervals determined by the user.

With this software, you adjust your screen to color match your prints through visual perception. This is a simple color matching solution for entry-level users because no external sensor is required and the monitor automatically maintains its color settings with the built-in correction sensor.

The Eizo ColorEdge CS230 is equipped with a built-in correction sensor housed within the front upper bezel. This sensor records your adjustment results, and maintains the white point and brightness values by automatically readjusting the settings at specific intervals that you determine. Even if the monitor is switched off or not connected to a computer, it will stick to its preset schedule and self correct. The built-in correction sensor works with both ColorNavigator and ColorNavigator Elements to automatically maintain your settings.

It comes with an ASIC (application specific integrated circuit) developed by Eizo to meet the needs of the graphics market. The ASIC has its own algorithms used in high-precision color processing to produce smooth color tones. Fluctuations in brightness and chromaticity on different parts of the screen are a common trait of LCD monitors. To counteract this, the monitor incorporates EIZO's patented digital uniformity equalizer (DUE) technology.

The gamma level for each ColorEdge monitor is adjusted at the factory. This is accomplished by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up table (LUT) to select the 256 most appropriate tones to achieve the desired value.

Using the DisplayPort input, the monitor offers 10-bit simultaneous color display from a 16-bit look-up table which means it can show more than one billion colors simultaneously. This is 64 times as many colors as you get with 8-bit display which results in even smoother color gradations and reduced Delta-E between two adjacent colors. E

Eizo S230 Features

  • DisplayPort, HDMI and DVI-I inputs are included for connecting to various types of graphics boards
  • The HDMI input also offers direct connection with digital cameras. Two USB upstream ports allow two computers to be connected at once so it's not necessary to reconnect the USB cable when using the ColorNavigator software and switching between the two computers
  • For video editing or post production work, an overdrive circuit is included to reduce gray-to-gray response time to ensure that moving images look clean and sharp with a minimum of ghosting
  • Adjust the screen to the most comfortable angle for you and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt and swivel adjustments as well as portrait mode display
  • 6 preset modes are included: Paper, sRGB, Calibration and three user- adjustable modes. With the bundled ScreenManager for Pro (compatible with Windows OS only), you can assign a mode to an application so that mode will automatically be come active when you call up an application
  • The LED backlight used with the LCD panel contains no mercury so it will have minimal environmental impact when it is eventually disposed of
  • When the monitor is turned off via the power button on its front bezel it consumes no electricity

Eizo S230 Specifications

Panel Type
IPS
Panel Size
23" / 58 cm (584 mm diagonal)
Native Resolution
1920 x 1080 (16:9 aspect ratio)
Display Size (H x V)
509.2 x 286.4 mm
Pixel Pitch
0.2652 x 0.2652 mm
Grayscale Tones
DisplayPort: 1024 tones (a palette of 65281 tones)
DVI, HDMI: 256 tones (a palette of 65281 tones)
Display Colors
DisplayPort: 1.07 billion from a palette of 278 trillion
DVI, HDMI: 16.77 million from a palette of 278 trillion
Viewing Angles (H / V, typical)
178deg., 178deg.
Brightness (typical)
300 cd/m2
Recommended Brightness for Calibration
120 cd/m2 or less
Contrast Ratio (typical)
1000:1
Response Time (typical)
10.5 ms (Gray-to-gray)
Input Terminals
DVI-I 29 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP)
Digital Scanning Frequency (H / V)
DisplayPort, DVI: 26 - 68 kHz, 23.75 - 63 Hz (VGA Text: 69 - 71 Hz)
HDMI: 15 - 68 kHz, 23.75 - 61 Hz
Analog Scanning Frequency (H / V)
26 - 68 kHz, 47.5 - 61 Hz
USB Function
2 ports for monitor control
2-port USB hub
USB Standard
USB 2.0
Power Requirements
AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption
54 W
Typical Power Consumption
21 W
Power Save Mode
Less than 0.5 W
Standby Mode
Less than 0.5 W
Power Management
Power Save (VESA DPM, DisplayPort Version 1.1a and DVI DMPM)
Self-Correction
Yes
Brightness Stabilization
Yes
Digital Uniformity Equalizer
Yes
Preset Modes
Color Mode (User1, User2, User3, Paper, sRGB, Calibration)
Auto EcoView / BrightRegulator
Yes
OSD Languages
English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Height Adjustment Range
154 mm
Tilt
30deg. Up, 0deg. Down
Swivel
344deg.
Pivot
90deg.
Hole Spacing (VESA Standard)
100 x 100 mm
Temperature
0 - 35 deg.C
Humidity (R.H., non condensing)
20 - 80 %
Certifications & Standards
CUDO certified mark, TCO Certified Displays 6.0, TUV/S, TUV/Ergonomics (including ISO 9241-307 [Pixel fault class I]), TUV/GS, cTUVus, CE, c-Tick, CB, VCCI-B, FCC-B, Canadian ICES-003-B, RoHS, WEEE, GOST-R
Dimensions (W x H x D)
Landscape: 544 x 372.5 - 526.5 x 245.5 mm / 21.41 x 14.66 - 20.72 x 9.66"
Portrait: 353 x 563.5 - 627 x 245.5 mm / 13.89 x 22.18 - 24.68 x 9.66"
Without Stand: 544 x 353 x 75 mm / 21.41 x 13.89 x 2.95"
Weight
7.5 kg / 16.5 lbs
Without Stand: 4.8 kg / 10.6 lbs
Mfr #
CS230-BK-CN
SKU
EICS230BKCN
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Jocelyn F  Will this monitor be compatible with a 2009 Mac Pro tower?
Andrew R  Depending on the OS version you're running, yes. Older versions of Mac OS X may not be compatible with the ColorNavigator software.
