Elinchrom 3000 Watts Asynchronous Power Set 2 with 600RX Monolight, 2400RX Power Pack ,A3000N Head and Skyport
Mfr. Part: 103232 SKU: EL103232
enlarge image
|
|
 |
|
|
|
Item Includes

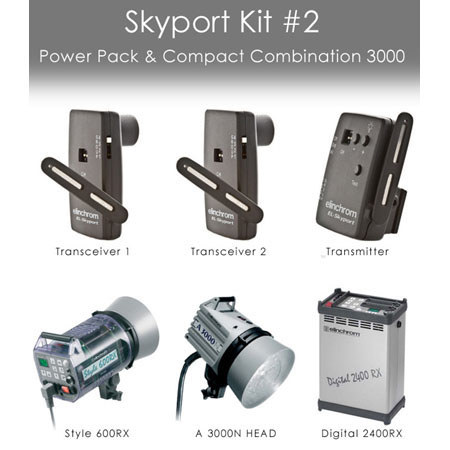

Elinchrom Digital Style 600RX 600 Watt/Second Monolight (120VAC) - Digital RX 2400 Watt/Second Power Pack - A3000N Lamp Head - EL-Skyport RX Dedicated Radio Slave System - Elinchrom Warranty
|
Description
The Elinchrom 3000 Watts Asynchronous Power Kit provides greater accuracy at all power settings with an extended power range to cover extreme requirements. Precise repeatability, whether at two second or two week intervals is possible with the ultra-stable electronics controlled by accurate digital displays in both the Digital Style 600RX Monolight and the 2400RX Power Pack. The 2400RX power Pack has the same accuracy and fine design as the monolight, plus surge resistant circuits.
The included "A" series head offers short flash intervals of 1/1700 (with two heads plugged in at the same time). This is a 3000 total w/s kit that includes a 600RX Monolight, 2400RX Power Pack with a high-speed A3000N flash head. It also includes a Skyport Radio Slave System. Power variation is from 600 to 18 w/s in 0.1 stop increments. Applying the renowned Elinchrom reliability, consistency and color temperature, the new RX series is even more precise. |
Features
 |
Four Workgroups: adjust and sync individual units or groups |
|
Eight Channels: Work across each workgroup |
|
The "All" switch on the transmitter controls all four workgroups |
|
Save on Batteries: No battery is necessary for the RX Transceivers as power comes from each RX flash unit |
|
Adjustable Range: Movable antenna optimizes reception and working distance |
|
Red letters indicate power settings |
|
LED indicates charge and operating modes |
|
Test Button for manual flash trigger |
|
Lower sync-line voltage (5V) eliminates need to buy a separate Safe-Sync. Your camera's sensitive circuitry is safe |
|
Universal Accessory Mount: The integral reflector is designed to maximize power efficiency and provide optimum results with Elinchrom's extensive range of accessories |
|
Auto-Dump: Both the monolight and the power pack allow resetting to a lower power rating without having to discharge the power through the flashtube |
|
Computer Operation Possible: Remote control (optional) all functions, 2-way with read out. Extension cables are available for overhead track or wall installations |
|
Sturdy: Fire retardant, robust body shell encasing the die cast alloy chassis |
|
Modeling Light: Bright, variable control, constant full-on, or off |
|
Flashtubes: User-replaceable, plug-and-play |
Specifications
| Maximum Watt/Seconds | 600RX Monolight: 600
2400RX Power Pack: 2400
A3000N Flash Head: 3000 |
| Guide Number | 600RX Monolight: f/90 @ 3.3' @ISO 100, 1/250, with 48° Reflector
2400RX Power Pack: f/180 @ 3' with 48° reflector |
| Recycle Time | 600RX Monolight: 1.5 sec @ full power
2400RX Power Pack: 3.2 sec @ full power |
| Flash Duration | 600RX Monolight: 1/2050 sec
2400RX Power Pack: 1/1700 sec with 2 A Heads |
| Flash Variability | 600RX Monolight: 6 f/stops; 600 - 18 w/s
2400RX Power Pack: 2400 - 75 w/s |
| User Replaceable Flashtube | 600RX Monolight: Yes (24029)
A3000N Flash Head: Yes (24053) |
| Changeable Reflector | Yes - optional |
| Modeling Light Wattage | 600RX Monolight: 150W (ESP)
A3000N Flash Head: 300W (23030) |
| Voltage Stabilization | Yes, +/- 1% |
| Flash Ready Indicator | Ready Light/Open Flash, Switchable Audible Beep |
| Operating Voltage | 115-140VAC, 50/60hz |
| Sync Voltage | 5VDC |
| Built-in Slave Cell | Yes - Optical, plus EL Skyport Radio Slave System |
| Circuit Protection | 2.5A AGC Modeling Lamp Fuse, 8A AGC Flashtube Fuse |
| Fan Cooled | Yes |
| Auto Dump | Yes |
| Dimensions | 600RX Monolight: 11.75 x 5.5" (30 x 14cm)
2400RX Power Pack: 8.7 x 5 x 12.6" (22 x 13 x 32cm)
A3000N Flash Head: 8.6 x 5.5" (22 x 14cm) |
| Weight | 600RX Monolight: 7.5 lbs (3.45kg)
2400RX Power Pack: 14.5 lbs (6.6kg)
A3000N Flash Head: 5.4 lbs (2.5kg)
Kit Weight: 50 lbs (22.7kg) |
| Warranty | Elinchrom warranty |
| | |
|
|
|
|
|
|
|
|
|
