About Elinchrom

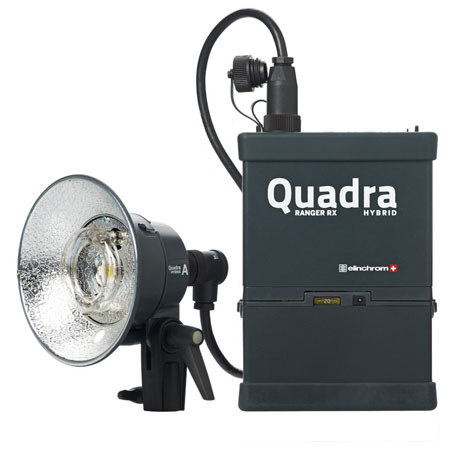

The Elinchrom Quadra Hybrid Li-Ion Standard Set A Heads is a compact portable 400Ws battery flash system for studio and outdoors use. Complete with fast recycling times, wireless trigger and remote options via the EL-Skyport, the Quadra Hybrid RX really are a perfect system for anyone who likes to work away from the mains. With the Lithium-Ion battery, the whole pack only weighs 2 kg and allows you -320 flashes at full power while being an incredible 15x8.5x18cm.

Latest firmware manages flash power consistency, remote power variation, LED modeling lamp and even more RX features than are currently available on any other unit. The Action heads in these sets are ideal for sport photography, fashion photography and Action Freezing photography.

Elinchrom Features

  • El-Skyport (built-in): Radio remote control of power settings and flash triggering
  • Unique control: full control over the units with the EL-skyport app for apple devices via the optional Wi-Fi module or with the EL-skyport software via the optional USB transceiver RX
  • Power options: two outlets - 2: 1 ratio. single high power channel and single superfast channel
  • Versatility: Pre-flash detector system to enable the use of Quadra Hybrid with speedlights
  • Battery: Lithium-ion for best performance/weight
  • Security: 5V sync socket for maximum protection of digital cameras and secured battery
  • Stability: Power auto-Dump & power controlled
  • Portability: Only 2 kg with Lithium battery. Super small and lightweight heads - compact and only 0.25 kg
  • Family: With the EL-Reflector adapter all accessories and Rotalux softboxes up to 135 cm can be used

Elinchrom Specifications

Energy (Ws/J)
400
Power distribution
Asymmetrical 2:1 ratio
F-Stop (1m, 100 ISO, reflector 48deg.)
At 100%: 64.5
Power range f-stop
6.6
Power range Ws
100%: 25 - 400 - 66%
Output A: 17 - 268 - 33%
Output B: 8.2 - 132
Power range
1/1 - 1/32
Power increments in f-stop
1/10 to programmable 5/10 - 1/1
Flash duration
t0.5 at max. power in s: RQ S / A head
Output A (100%): 1/1200 / 1/2800
Output B (33%): 1/3000 / 1/5700
Output A+B (100%): 1/1500 / 1/4000
Recycling, FAST in s
Output A: 0.36 - 2.0
Output B: 0.17 - 0.73
Recycling, SLOW in s
Output A: 0.86 - 6.6
Output B: 0.33 - 2.3
Color temperature in deg.K
At max. power: 5500
Auto Power Dumping
Adjusts power settings automatically
Power stability
± 0.5%
Modeling lamp mode
On, off, programmable timer and continuous
Flashes out of one charged battery
At min. power, SLOW / FAST recycle: 4800 / 4200
At max. power, SLOW / FAST recycle: 320 / 280
Battery
Lithium-Ion 16.8 V / 3.3 Ah
Quick charger: approx. recharge time
1 h 30 min
EL-Skyport (Built-in)
Integrated transceiver, 8 Frequency Channels and 4 Groups with full RX features
Sync voltage
5 V (compatible with all cameras)
Sync socket
3.5 mm Jack
Dimensions
Ranger Quadra Hybrid including Battery box: 15x8.5x18.5cm / 5.90x3.34x7.28"
Weight
2kg / 4.40lbs

Reviews about this item

Reviewed by 1 customers


5.0

Love this!

By

from Woodbridge, VA  -  Pro Photographer

I can fit a up to a 2 head kit SLR and zoom lense in a thinktank retrospective 30-awesome! This is the studio/location flash you will take with you. I mix it in with Elinchrom ELC 500 HD strobes inside.

Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  Will someone please enlighten me on how this works with speedlites as slaves? I use 4 Canon 600EX-RTs, and tighter them with a ST-E3-RT. I'm having trouble getting enough power in bright sunlight. I'm hoping this kit will help me.
JOSEPH S  The Elinchroms are way stronger so they will help you for sure. You should be able to set your speedlights menu so that they activate the photocell option , then when the Elinchroms fire , the speedlights should detect flash and fire along with the Elinchroms. Trigger the Elinchroms with the Skyport unit and you are all set. I use Nikon speedlights with my Elinchroms just like that. The Elinchrom units are a different animal though , the power that you get from such a small and light setup is amazing. I am at the point where the Elinchroms are the first choice before the speedlights.
