Elmo MO-1: Picture 1 regular $683.99

About Elmo MO-1

The Elmo MO-1 Visual Presenter Black and CRA-1 Wireless Tablet features a mobile interactive camera and a wireless tablet that lets you walk around the room controlling the camera's live-projection functions from up to 50 feet away.

The MO-1 Visual Presenter is an on-the-go document camera, about the size of an envelope and very lightweight - it can easily be carried inside a jacket pocket or small handbag. It features a 5 megapixel, full HD video camera that produces true and vivid color reproduction and it's very simple to operate. Offering local and web communication ability, software packed with useful and effective presentation tools and almost instant integration with projectors and displays, the MO-1 is a productive presentation companion for educators, attorneys and business professionals.

The main aspect of the MO-1 is a 300deg. movable camera head. It serves as a video camera, a webcam and a photo camera/scanner. It has a zoomable lens that lets you focus in on parts of a scene or magnify details of a document (from as close as 2.7 inches away).

A built-in microphone lets you use the webcam function to conduct online meetings. Connected to a computer, any images captured with the photo camera/scanner function can be saved to an SD card. Connected to a projector or HDTV, you can apply various enhancements to the images, enhancements such as split-screen, highlight, mask, picture-in-picture, color filters and annotations, all applicable from the software that comes included. The MO-1 can also optionally connect to an Elmo CRA-1 wireless tablet with which you can deliver your presentations wirelessly from as far as 50 feet away while walking around the room. The included software's enhancement features can also be applied from the tablet. The MO-1 comes with an AC adapter but can alternatively get its power by simple USB cable connection to a computer.

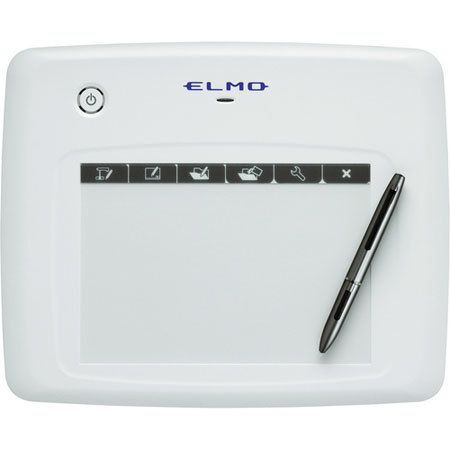

The CRA-1 Tablet lets you control most of the camera's features and functions wirelessly from up to 50 feet away. You can walk around the classroom or boardroom and make annotations to documents being projected onto a wall (projected from the camera through an optional projector). Without the Tablet, you would make annotations using the mouse of the computer you'd have the camera connected to. But with the Tablet, all the work is done on the Tablet screen using an included Tablet Pen. The CRA-1 wirelessly connects by an included USB transceiver to the same computer the camera connects to and it thus replaces the computer. (The computer must be Windows-based. Although the camera is compatible with both Macs and PCs, the tablet is only Windows-compatible.).

The Tablet comes with its own software called Image Mate Accent, which has all the features of the camera's software and some additional ones on top of those. You'll get picture-in-picture, split-screen, screen stamps, time-lapse photography, highlights, masks, color filters, mosaic and an annotation tool.

Elmo MO-1 Features

  • Multi-Functional On-the-Go Camera: Video, photo / scanner and webcam functionality
  • Multi-Functional On-the-Go Camera: Connects to Mac or PC and to a projector or digital TV
  • Multi-Functional On-the-Go Camera: Applies features like picture-in-picture to projected material
  • Multi-Functional On-the-Go Camera: Webcam function and built-in mic let you hold online meetings
  • Multi-Functional On-the-Go Camera: The size of an envelope and only 1.3 lbs -- fits into a jacket pocket
  • Multi-Functional On-the-Go Camera: The camera arm is adjustable and lets you shoot from various angles
  • Multi-Functional On-the-Go Camera: A zoomable lens lets you magnify and emphasize details of a document
  • Multi-Functional On-the-Go Camera: Connects to an optional wireless tablet so you can walk around presenting
  • Wireless Tablet to Replace a Computer: Controls the camera's live-projection functions from 50 ft away
  • Wireless Tablet to Replace a Computer: Wirelessly connects by USB to the same computer the camera does
  • Wireless Tablet to Replace a Computer: Replaces the computer and lets you control features like picture-in-picture
  • Wireless Tablet to Replace a Computer: Walk the room and annotate on documents that the camera projects on a wall

Elmo MO-1 Specifications

MO-1 Visual Presenter: Sensor
1/3.2" 5MP CMOS sensor
MO-1 Visual Presenter: Effective Pixels
2048 H x 1536 V
MO-1 Visual Presenter: Zoom
8x digital
MO-1 Visual Presenter: Lens
F2.9
MO-1 Visual Presenter: Shooting Area
10.1 x 13.4" (25.7 x 34.2 cm) - WXGA / XGA / VGA
MO-1 Visual Presenter: Focus
Auto (one-push) / Manual
MO-1 Visual Presenter: Functions
Flicker Correction
Auto (one push) / Manual White Balance:
Internal Sync System
Pause
Still Image Capture
MO-1 Visual Presenter: HDMI Output
1080i at 30fps
720p at 30fps and 60fps
MO-1 Visual Presenter: Analog RGB Output
WXGA / XGA at 20fps
720p at 30fps
MO-1 Visual Presenter: USB Output
Mini-B
WXGA / XGA at 20fps
VGA at 20fps
1080p at 15fps
720p at 30fps
MO-1 Visual Presenter: Image Switch
HDMI / RGB / USB / external input
MO-1 Visual Presenter: Input Terminal
Analog RGB on D-Sub
HDMI type A
MO-1 Visual Presenter: Image Rotation
Live camera image: 0deg. / 180deg.
Saved image: 0deg. / 90deg. / 180deg. / 270deg.
MO-1 Visual Presenter: SD Card Slot
Yes
MO-1 Visual Presenter: Security LockSlot
Yes
MO-1 Visual Presenter: Illumination
White LED
MO-1 Visual Presenter: Power
5V DC, 2A (AC 100 - 240V, 50/60 Hz)
Powered by USB (when in USB mode)
MO-1 Visual Presenter: Power Consumption
4.2W (standby 0.25W) / USB 3.3W
CRA-1 Tablet: Communication Range
Approx. 49.2' (15 m)
CRA-1 Tablet: Reading Range
8 x 5" (20.3 x 12.7 cm)
CRA-1 Tablet: Reading Resolution
.0127 mm
CRA-1 Tablet: Reading Accuracy
.42 mm
CRA-1 Tablet: Reading Speed
120 rps
CRA-1 Tablet: Pen Pressure
1,024 levels
CRA-1 Tablet: Wireless Bandwidth
2.4 GHz
CRA-1 Tablet: Power Supply
Lithium-ion battery
CRA-1 Tablet: Runtime
Approx. 16 hours
CRA-1 Tablet: Auto Power Off
Approx. 30 minutes
CRA-1 Tablet: Full Charge Time
Approx. 4 hours
CRA-1 Tablet: Consumption Current
When using USB: 5 V 500 mA
When using lithium-ion battery: 3.7 V 60 mA
CRA-1 Tablet: Computer
BM compatible computer equipped with a standard USB port and CD-ROM drive
Operation is not guaranteed for all computer environments)
CRA-1 Tab: Compatible Operating Systems
Windows 7 (32-bit) / Vista SP1 (32-bit) / XP SP2 (32-bit)
CRA-1 Tablet: Operating Temperature
32-104deg.F (0-40deg.C)
Dimensions
MO-1 Visual Presenter: Set up: 3.97 x 8.89 x 13.3" (10.08 x 22.5 x 33.7 cm)
Folded: 3.97 x 8.89 x 1.1" (10.08 x 22.5 x 2.7 cm)
CRA-1 Tablet: 12.4 x 10.1 x .9" (314.9 x 256.5 x 22.8 mm)
Weight
MO-1 Visual Presenter: 1.3 lbs (.58 kg)
CRA-1 Tablet: 1.475 lbs (0.66 kg)
Mfr #
1337-27
SKU
EL133727
