Elinchrom EL-Skyport Wi-Fi Module, Control RX Flash Equipment with iPhone, iPad, iPod Touch

Elinchrom
Elinchrom EL-Skyport Wi-Fi Module: Picture 1 thumbnail Elinchrom EL-Skyport Wi-Fi Module: Picture 2 thumbnail

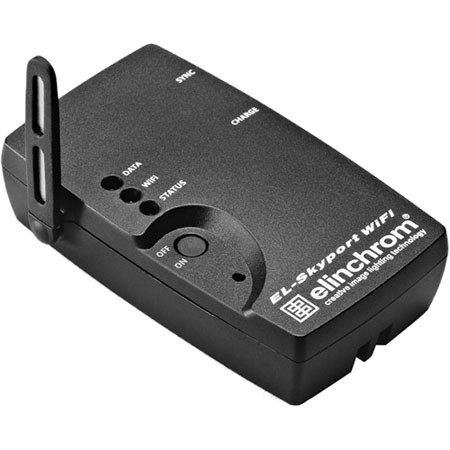

About Elinchrom EL-Skyport Wi-Fi Module

The Elinchrom EL-Skyport Wi-Fi Module gives you the opportunity to expand the capabilities of the iPhone, iPad or iPod Touch to include remote triggering of your Elinchrom RX series flash equipment. The module features 8 channels and runs on a Li-ion battery that fully charges in 3 hours and lasts for 10 hours of use. Its 40-bit security ensures interference-free Wi-Fi operation at distances up to 164 ft outdoors and 65.6 ft indoors.

The module can also be used as a non-Wi-Fi EL-Skyport radio transceiver at distances up to 328 ft outdoors and 131 ft indoors. The EL- Skyport Wi-Fi Module comes with a set of adapters and cords that enable connection to your RX flash gear.

Elinchrom EL-Skyport Wi-Fi Module Features

  • Internal rechargeable Li-ion battery, one charged battery lasts up to 10 hours
  • The Li-Ion battery recharges in approx. 3 hours
  • Integrated intelligent quick-charge circuit
  • Multi-Voltage, Multi-Connector EL-Skyport Universal Charger
  • Indication LED's for charge and operating modes
  • Multi-use, as EL-Skyport Universal Receiver module, when synchronized directly with a flash unit or as a EL-Skyport RX Wi-Fi module
  • 3.5 mm SYNC-socket for all common flash units, when used directly as a "Universal Receiver
  • EL-Skyport Normal Sync and Speed Sync mode settings
  • Settable 8 frequency channels and 4 workgroups
  • Interference operation with 40 bits security

Elinchrom EL-Skyport Wi-Fi Module Specifications

Compatible RX Units
Compacts: Style RX 300 / 600 / 1200
Battery Power Packs: Ranger Quadra RX / Ranger RX / Ranger RX Speed / Ranger RX Speed AS
Power Packs: Digital RX 1200 / 2400
WiFi Distance range
Up to 164' (50 m) outdoors and 65.6' (20 m) indoors
EL-Skyport Distance range
Up to 328' (100 m) outdoors and 131.23' (40 m) indoors
System Requirements to make it work
Apple iPhone 3G / 3Gs / 4, iPod Touch, iPad / 2
Elinchrom EL-Skyport Mobile Phone Application from the Apple APP STORE (free)
EL Skyport WIFI Module
Elinchrom "RX" flash units
Download and follow the EL Skyport WIFI Manual from Elinchrom's support area
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  Is the Elinchrom EL-Skyport Wi-Fi Module compatible with the Elinchrom Ranger RX-AS Kit with S Head? And will it work with my Nikon D700 without damaging the electronics?
Andrew R  This Elinchrom Wi-Fi module is compatible with the following RX units: Compacts: Style RX 300 / 600 / 1200 Battery Power Packs: Ranger Quadra RX / Ranger RX / Ranger RX Speed / Ranger RX Speed AS Power Packs: Digital RX 1200 / 2400 Connection to a D700 should work through an available PC connection and should not damage the electronics of the connected device.
