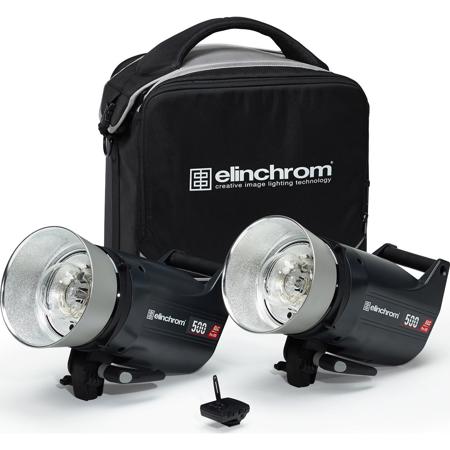

Elinchrom ELC Pro HD 500/500 To Go 2-Light Kit, Includes 2xELC Pro HD 500, 2x16cm 90deg. Umbrella, EL-Skyport Transmitter SPEED, ProTec Bag

Elinchrom

List Price: $2,443.39 Free Item Value: -$9.95

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $149.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $184.95
Kit Savings

Our Price

$2,199.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Elinchrom EL 20613.1

This Elinchrom EL 20613.1 Bundle comes with $9.95 worth of free accessories including a JumpStart Guide to Lighting, Studio Flash Photography and Shipping is free! .

The Elinchrom ELC Pro HD 500/500 To Go 2-Light Kit includes 2 x ELC Pro HD 500, 2 x Umbrella Wide Reflector 90deg. 16cm, EL-Skyport Transmitter SPEED and ProTec Bag. The Elinchrom ELC Pro HD 500 500W/s Compact Flash Head is packed with professional features that can be expected from a flash head of this caliber and added quite a bit more. Short recycling times coupled with fast flash durations make freeze-motion, stop-action shooting possible. In fact, up to 20 frames per second is possible at minimum power. An intelligent low noise, temperature-activated fan keeps the head cool and lengthens the life of both the flash tube and modeling lamp. A pre-flash detector lets you integrate your on-camera flash into your studio system.

Power, variable continuously from 7 to 500W/s, can be mimicked by the 300W proportional modeling lamp to preview your effects. Although Elinchrom provides one, you can swap the sync cord with a separately purchased 8-channel transceiver for wireless triggering from your camera. The head has one built-in to receive the signal. Flash modes allow you to address special situations. The Sequential Mode enables triggering up to 20 ELCs in bursts or in a continuous cycle. Delayed Mode offers a choice of first or second curtain syncing while Strobo Mode allows single frame stroboscopic action sequences. Finally, the auto-sensing multi-voltage power supply means that you can use the ELC Pro HD 500 anywhere in the world.

The reflector is designed to give a wide, even coverage. The important requirement of an Umbrella Reflector is that when used in conjunction with an umbrella it is evenly filled with light (no central hot spot) whilst keeping a minimum distance between the flash tube and the umbrella. It is also important that the profile of the reflector is not so wide that it masks the umbrella.

The ELS Transmitter Speed enables the triggering of units attached via a Universal Skyport module, all units with built-in Skyport and all Elinchrom units to which a Transceiver RX is attached. The additional control of power settings and modeling lamp on/off can be achieved on all Elinchrom units with built-in Skyport RX (D-lite RX One, D-lite RX 2/4, BRX 250/500 and Ranger Quadra Hybrid) and on all Elinchrom units, which require the Transceiver RX (Digital RX 1200/2400, Ranger RX/Speed/Speed AS and Style RX 300/600/1200).

The ProTec Bag Poly is a new robust shoulder bag, which can carry safely for example two Elinchrom compacts, such as D-lite RX, BRX and Style RX 300 / 600 or even two Quadra battery packs and two Quadra heads with some accessories.

Elinchrom EL 20613.1 Features

  • ELC Pro HD 500: Built-in EL-Skyport receiver for triggering
  • ELC Pro HD 500: EL-Skyport with 8 Frequency Channels with 4 Groups
  • ELC Pro HD 500: EL-Skyport Speed Sync mode for synchronization up to a 1/320 s on enabled SLR cameras
  • ELC Pro HD 500: Intelligent pre-flash detector system to enable the use of ELC units with speedlights
  • ELC Pro HD 500: 7 f-stop range
  • ELC Pro HD 500: Action freezing flash durations at full power - 1/2330 s. at t.05 - with flash durations up to a 1/5000 s
  • ELC Pro HD 500: Fastest recycling times always maintaining best stability
  • ELC Pro HD 500: Up to 20 flashes per second
  • ELC Pro HD 500: Super balanced color temperature with +/- 150Kdeg.
  • ELC Pro HD 500: Power Auto-dump
  • ELC Pro HD 500: Multi-voltage auto-detection: 90-270 V (excluding modeling lamp)
  • ELC Pro HD 500: Low 5 V sync voltage protecting all digital camera systems
  • ELC Pro HD 500: Intelligent low noise fan; The electronically controlled fan spins slower or faster depending on the internal temperature of the unit
  • ELC Pro HD 500: High impact resistant and fire retardant body shell
  • ELC Pro HD 500: Accessory bayonet allowing the complete range of light modifiers
  • ELC Pro HD 500: Uniquely Elinchrom: OLED display for information and clarity, Dashboard for an enhanced experience and Highly precise control
  • ELC Pro HD 500: Flash modes: Sequence Mode allows you to sequentially trigger up to 20 ELC's, in bursts or as a continuous cycle, to utilize the high frame rate of your camera
  • ELC Pro HD 500: Flash modes: Delayed Mode provides the option of first or second curtain sync and everything in-between
  • ELC Pro HD 500: Flash modes: Strobo Mode enables you to take a picture with stroboscopic effects within a single frame
  • EL-Skyport Transmitter SPEED: +/- buttons to change flash power settings and modeling lamp on/off
  • EL-Skyport Transmitter SPEED: Test button for manual flash trigger
  • EL-Skyport Transmitter SPEED: Switch selection for 8 different Frequency Channels
  • EL-Skyport Transmitter SPEED: Switch selection for 4 different Groups
  • EL-Skyport Transmitter SPEED: All switch to control all units of Group 1 to 4
  • EL-Skyport Transmitter SPEED: LED status for sync mode and battery level status. It has long life Lithium battery to provide over 30000 flashes and integrated hot-shoe with screw lock

Elinchrom EL 20613.1 Specifications

ELC Pro HD 500: Maximum Watt/Seconds
500
ELC Pro HD 500: Guide Number
212.6' (64.8 m) at 3.3' (1.0 m), ISO 100 with 48deg. reflector
ELC Pro HD 500: Recycle Time
At full power:
at 230VAC Slow: 2.0 sec, Default: 0.75 sec, Fast: 0.6 sec.
at 115VAC Slow: 2.5 sec, Default: 0.9 sec, Fast: 0.7 sec
Maximum flashes per sec at min power: 20
ELC Pro HD 500: Flash Duration
Min / Max: 1/2,940 / 1/2,330 at t0.5
At 53W/s: 1/5,000 (3.1 power setting)
ELC Pro HD 500: Flash Variability
7.0 Stops: 7.0 - 500W/s Power range display: 0.3 - 6.3
ELC Pro HD 500: Color Temperature
5,500K
ELC Pro HD 500: Flashtube
User Replaceable: Yes, S-Type, Omega plug-in
ELC Pro HD 500: Changeable Reflector
Yes
ELC Pro HD 500: Modeling Light Wattage
300W
ELC Pro HD 500: Modeling Light Control
Full, Free, Proportional
ELC Pro HD 500: Voltage Stabilization
Yes, +/- 0.1%
ELC Pro HD 500: Flash Ready Indicator
Audible and LED
ELC Pro HD 500: Operating Voltage
90 - 265VAC, 50/60Hz
ELC Pro HD 500: Sync Voltage
5.0V
ELC Pro HD 500: Sync Socket
3.5 mm Jack
ELC Pro HD 500: Umbrella Mount
Diameter: 7.0mm (0.27")
ELC Pro HD 500: Built-in Slave Cell
Optical/IR
Integrated transceiver: 8 frequency channels with 4 Groups with full RX features
ELC Pro HD 500: Circuit Protection
Fuse
ELC Pro HD 500: Power Consumption
at 230VAC, 50Hz
Slow: during charge: 350
Default: during charge: 700
Fast: during charge: 875
at 115VAC, 60Hz
Slow: during charge: 250
Default: during charge: 500
Fast: during charge: 625
ELC Pro HD 500: Pure Sine Wave Converter
AC/DC, slow charge: 600 with halogen
ELC Pro HD 500: Fan Cooled
Yes, temperature-controlled
ELC Pro HD 500: Auto Dump
Yes
Umbrella
90deg. 16cm (6.29")
EL-Skyport Transmitter: No of Frequency
8 Different Frequency Channels
EL-Skyport Transmitter: Number of Groups
4 Different Groups
EL-Skyport Transmitter: Battery Type
Lithium Battery (Provide over 30000 flashes)
ProTec Bag: Material
Poly
Dimensions
ELC Pro HD 500: with Protective Cap: 31.50 x 14.00 x 21.00cm (12.40 x 5.51 x 8.26")
EL-Skyport Transmitter: 4.00 x 5.00cm (1.57 x 1.96")
ProTec Bag (L x H x W): 37.50 x 37.00 x 27.50cm (14.76 x 14.56 x 10.82")
Weight
ELC Pro HD 500: 2.35kg (5.18lbs)
EL-Skyport Transmitter (Include Battery): 36g (1.26oz)
ProTec Bag: 2.62kg (5.77lbs)
Mfr #
EL20666.2
SKU
EL206662
