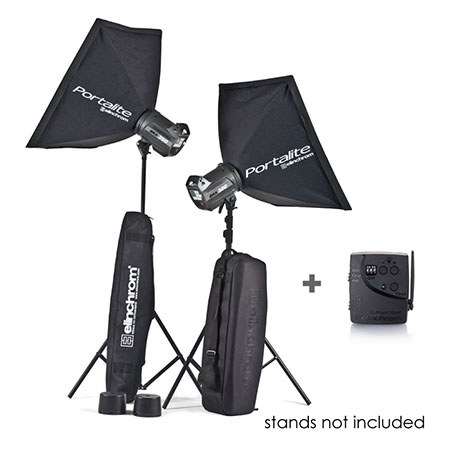

Elinchrom BRX 500 2x Head Portalite To Go Monolight Kit

Elinchrom
SKU: EL20758KIT MFR: EL 20758.2

About Elinchrom BRX 500 Portalite Kit

The BRX basic sets all fit it to one bag for easy transportation. Optional stand sets are available depending on your needs such as 34.5''-92.5'' (88-235 cm) stands or air cushioned 40''-104'' (102-264 cm) stands. All sets come with two Portalites, which when combined with the optional deflector set take advantage of the unique Elinchrom central shaft.

What's New
• Take full control of your units settings with the EL-Skyport App for IPod
• Touch/Ipad/Iphone with the optional WiFi module.
• Additional features can be found when used with the EL-Skyport Software*
such as • Flash-Delay for strobing-effects. (The optional USB Transceiver RX and Skyport Software 3.0 are required) • Flash-Delay for strobing-effects.
• Firmwrequired. option.
• Improved electronics for even better performance than before!

BRX Facts
• Built-in EL-Skyport receiver for triggering.
• EL-Skyport with 8 Frequency Channels with 4 Groups.
• EL-Skyport Speed Sync mode for synchronization up to a 1/320 s on enabled SLR cameras.
• Pre-flash detector system to enable the use of BXRX with speedlights.
• Visual Flash Confirmation option. The modeling lamp comes on to confirm the flash has been triggered.
• Proportional, maximum, minimum and independent adjustment of the modeling lamp.
• Variable f-stop steps: 1/1, ½, 4/10, 1/3, 2/10 or 1/10 steps are available.
• Programmable ready beep function.
• Power Auto-dump.
• Automatic temperature controlled ventilation.
• Action flashtube for sharper images.
• Multi-voltage auto-detection: 90-270 V (excluding modeling lamp).
• 5V sync socket for maximum protection of digital cameras.
• High impact resistant body shell.
• Accessory bayonet allowing the complete range of light modifiers.
• Rubberized handgrip with built-in fuse storage.

Elinchrom BRX 500 Portalite Kit Features

  • Built-in EL-Skyport receiver for triggering
  • EL-Skyport with 8 Frequency Channels with 4 Groups
  • EL-Skyport Speed Sync mode for synchronization up to a 1/320 s on enabled SLR cameras
  • Pre-flash detector system to enable the use of BXRX with speedlights
  • Visual Flash Confirmation option. The modeling lamp comes on to confirm the flash has been triggered
  • Proportional, maximum, minimum and independent adjustment of the modeling lamp
  • Variable f-stop steps: 1/1, ½, 4/10, 1/3, 2/10 or 1/10 steps are available
  • Programmable ready beep function
  • Power Auto-dump
  • Automatic temperature controlled ventilation
  • Action flashtube for sharper images
  • Multi-voltage auto-detection: 90-270 V (excluding modeling lamp)
  • 5V sync socket for maximum protection of digital cameras
  • High impact resistant body shell
  • Accessory bayonet allowing the complete range of light modifiers
  • Rubberized handgrip with built-in fuse storage

Elinchrom BRX 500 Portalite Kit Specifications

BRX 500: Flash power
500 J(Ws)
BRX 500: Power supply
90/260 V
BRX 500: F-stop, 1m, 100 ISO
90 with reflector 48deg.
BRX 500: Power range
31-500 J(Ws)
BRX 500: Variable flash power f-stops
5 f-stops 1/16 - 1/1
BRX 500: Recycling time min. / max.
0.36 / 1.13 s (230 V)
BRX 500: Recycling time, min. / max.
0.34 / 1.45 s (115 V)
BRX 500: Color temperature max. power
5410 deg.K
BRX 500: Flash duration (t 0,5) 1/1 s
1/1558
BRX 500: Flash duration (t 0,5) 1/2 s
1/1558
BRX 500: Voltage stabilization
± 0.5 % Maximum stability for digital imaging
BRX 500: Sync voltage V
5 V, maximum compatibility with digital cameras
BRX 500: Plug-in flashtube Code
24000
BRX 500: Modeling lamp 230 V Code
23002
BRX 500: Modeling lamp 115 V Code
23006
BRX 500: Fan cooled
Microprocessor controlled fan
BRX 500: EL-Skyport
Integrated transceiver, 4 Groups, 8 Frequencies
Dimensions
BRX 500: 26x19x14cm / 10.23x7.48x5.51" (each)
Weight
BRX 500: 2.05kg / 4.51lbs (each)
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  What Type Of Battery need for this?
TIMELINE MEDIA, L  These do not work with batteries - they need to be plugged into the wall or a power generator to work. Look at the Elinchrom Quadra or Ranger kits to work off of battery power.
