Elmo 2622 Camera Head for SUV-Camera, 80cm Cable
Elmo

Elmo 2622 Camera Head with 80cm Cable for SUV-Camera Recorder

SKU: EL2622 MFR: 2622
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 2 - 4 Weeks from date of order.
What's Included
What's Included With This Item:
  • Elmo 2622 Camera Head
  • 3.8mm Lens
  • Elmo Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$335.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

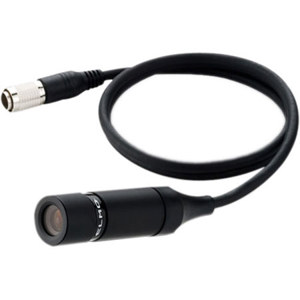

The Elmo 2622 is a camera head for use with an SUV-Cam II or SUV-Cam Professional recorder unit. In keeping with an SUV-Cam system's intended use in industrial and sports applications, this ultra compact camera features a durable metal cylindrical casing able to withstand a high degree of movement and shock.

The camera is also waterproof and can be submersed in water at depths of up to 132' (40 m). Another important feature of this camera is its stable focusing mechanism, designed to keep the lens from de-focusing under most operating conditions.

Included with the camera is a 3.8mm lens that can be swapped for an optional 8mm (2616-1), 2.8mm (2618) or 6mm (2616) lens.

What's Included With This Item

  • Elmo 2622 Camera Head
  • 3.8mm Lens
  • Elmo Warranty

Key Features

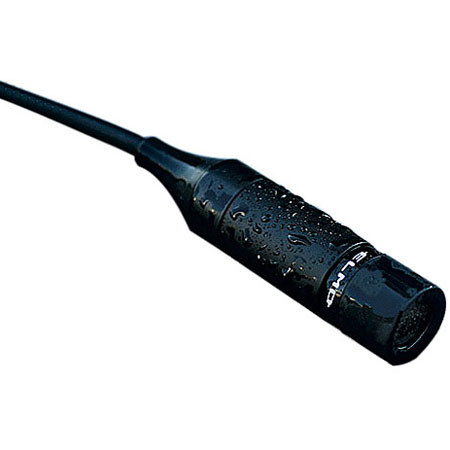

  • Waterproof Micro CCD Camera: Not only is the camera ultra compact but it is also built of a tough metal waterproof material, able to withstand water pressure at depths up to 132' (40m)
  • Stable Focusing Ring: The focusing ring on this camera was designed in such a way so that it won't become de-focused under most operating conditions

Technical Specs

Signal System NTSC/PAL (selectable)
Image Sensor 1/4" Color CCD
Number of Pixels 440,000
Horizontal Resolution 480 Lines
Lens: Focal Length 3.8mm
Lens: F Number 2
Lens: Angle of View 53.4 (V) x 40deg. (H)
Lens: Focus Manual
Lens: MOD 0.5m to infinity
Minimum Illumination 2 Lux
Microphone Built into the recorder
Controls White Balance
Electronic Shutter
Signal Connectors Proprietary video/power connector
Power Requirements 110VAC
Operating Temperature 14 - 122degF (-10 - +50degC)
Weather-Proof Rating IPX8
Dimensions (Diameter x Length) 0.8 x 3.3" / 20 x 84.8mm
Weight 4.1 oz / 115g
