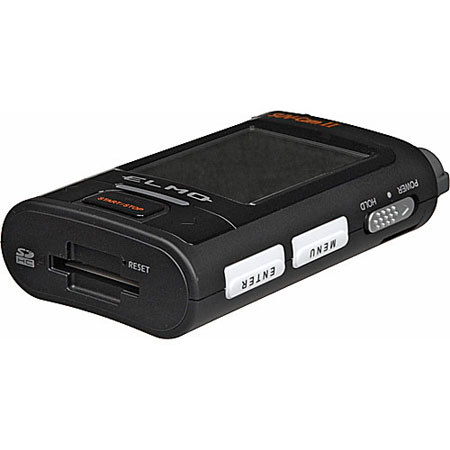

Elmo 2630 SUV-CAM II Micro Video Camera System with 3 Feet Cable, 2.2" Color TFT (QVGA) LCD Monitor, 1/4" Color CCD Image Sensor

Elmo
SKU: EL2630 MFR: 2630
Elmo 2630 SUV-CAM II: Picture 1 thumbnail Elmo 2630 SUV-CAM II: Picture 2 thumbnail Elmo 2630 SUV-CAM II: Picture 3 thumbnail Elmo 2630 SUV-CAM II: Picture 4 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95

Our Price

$879.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Elmo 2630 SUV-CAM II

Advances in sensor and flash memory technology have allowed both cameras and recorders to be built smaller and smaller. A micro video camera system has numerous uses in both security and non-security related applications. It can be used by security or law enforcement personnel in covert or portable surveillance applications, or mounted on a dashboard in a patrol car to record daily operations.

It can also be worn on a helmet, making it a sure hit with race car drivers, snowboarders, skydivers, mountain bikers or anybody else looking to record the action from their point of view. Accounts of supreme athletic feats that up until now have been met with skepticism can now be backed up with cold hard video images with the SUV-Cam II from Elmo.

Elmo 2630 SUV-CAM II Features

  • All-In-One Camera/Recorder System: Video is recorded in the MPEG-4 compression format and is stored to an SD or SDHC card inserted in the recorder
  • One-Push Recording: At the crack of the starter pistol, a user simply needs to press the Start/Stop button once and the unit instantly goes into recording mode even if its been turned off
  • Waterproof Micro CCD Camera: Not only is the camera ultra compact but it is also built of a tough metal waterproof material, able to withstand water pressure at depths up to 132 (40m)
  • Stable Focusing Ring & Fixed White Balance Function: The focusing ring on this camera was designed in such a way so that it wont become de-focused under most operating conditions. However, the manufacturer doesn't guarantee that the camera will remain focused in certain extreme circumstances

Elmo 2630 SUV-CAM II Specifications

Camera: Signal System
NTSC/PAL (selectable)
Camera: Image Sensor
1/4" Color CCD
Camera: Number of Pixels
440,000
Camera: Horizontal Resolution
480 Lines
Camera: Lens
Focal Length: 3.8mm
F Number: 2.0
Angle of View: 53.4 (V) x 40deg. (H)
Focus: manual
MOD: 0.5m to infinity
Camera: Minimum Illumination
2 Lux
Camera: Microphone
Built into the recorder
Camera: Controls
White Balance
Electronic Shutter
Camera: Signal Connectors
Proprietary video/power connector
Camera: Power Requirements
Powered by recorder
Camera: Operating Temperature
14 - 122 deg.F (-10 - +50 deg.C)
Camera: Weather-Proof Rating
IPX8
Recorder: Compression
MPEG-4
Recorder: Channels
1
Recorder: Resolution
704 x 480, 640 x 480, 320 x 240, 160 x 128
Recorder: Frame Rate
25, 15, 5, 3, 1 FPS
Recorder: Quality Setting
High, standard, low
Recorder: Modes
Video and audio, video only, audio only
Recorder: LCD Monitor
2.2" Color TFT (QVGA)
Recorder: Storage
SD Card (compatible with FAT12 and FAT16)
SDHC Card (compatible with FAT32)
Recorder: Microphone
Built-in
Video Output
3.5mm Mini A/V jack
Audio Output
Via mini A/V jack
Video Input
No
Audio Input
3.5mm Mini mono
USB
USB 2.0
Power Requirements
3.7VDC with battery power (includes lithium-ion battery)
5VDC with AC adapter (includes 110VAC adapter)
Power Consumption
2.8W with battery power
4.5W with AC adapter
Operating Temperature
32 - 104 deg.F (0 - 40 deg.F)
Camera: Dimensions (Diameter x Length)
0.8 x 3.3" (20 x 84.8mm)
Camera: Weight
5.3 oz (150g)
Recorder: Dimensions (W x H x D)
2.2 x 1.2 x 4" (56 x 30 x 102mm)
Recorder: Weight
4.6 oz (130g)
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

jeongmin l  hdo you have this item? i asked alot of time to other store, but they dont have one.
Andrew R  This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 2 - 4 Weeks from date of order.
