Elmo

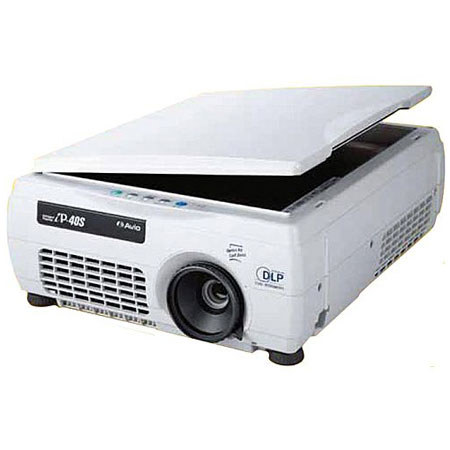

Elmo 7606 IP-40SE Digital Visual Presenter with Built-in High Definition 4.13 Million Pixel Document Camera, SD Cart Slot

SKU: EL7606 MFR: 7606
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 2 - 4 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$5,738.00 $223 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About this item

The Elmo IP-40SE Digital Visual Presenter is an ideal way to display educational or informational sources for classroom, boardroom or training room. At only 11 lb, the compact, portable IP-40SE's utilitarian exterior conceals a wealth of communication tools and is, in fact, a scanner, document camera and projector all rolled into one. Simply place a flat or solid object of any sort on the scanner surface and the 4.13 MP color CCD camera will project it onto screens or surfaces up to 300" diagonal. The 1-chip DLP color wheel with BrilliantColor is capable of displaying 16,770,000 colors at a crisp native resolution of 1024 x 768.

Leave the lights on if you like; 2,500 ANSI lumens of illumination means that the IP-40SE is up to the challenge of bright rooms, thus facilitating note-taking and handling of presentation materials. But that's just the beginning. Not only can projected images be added to the projector's memory (up to 100 images) for later use, but scroll, zoom, still and image rotation functions are possible.

Furthermore, a host of projector functions like keystone correction as well as whiteboard and blackboard modes are built in. Like most projectors, the IP-40SE is a world citizen able to run on virtually any voltage and use any color system employed over the planet. Finally, you can store scanned and projected data on an SD card via the built-in media slot or present display materials from others on the fly. For power, superior color reproduction, a multitude of features and PC-less presentation capability, the Elmo IP-40SE Digital Visual Presenter is hard to beat.

What's Included With This Item

  • Elmo 7606 IP-40SE Digital Visual Presenter
  • Power Cord
  • RGB+USB cable (2m, mini D-SUB 15 pins+USB)
  • Remote Controller and Battery
  • User's Manual
  • SD Memory Card
  • Lens Cap
  • iP Viewer Software Quick Reference
  • Elmo

Key Features

  • SD Cart Slot Equipped: By storing the data in the SD card and inserting that SD card into the slot, a presentation can be started without having a PC. You are relieved of carrying a heavy laptop PC or from troublesome setup delays
  • Built-in High Definition 4.13 million Pixel Document Camera: By simply placing a document or a solid object on the glass surface of IP-40SE, a clear image can be projected onto a screen
  • Highest Color Reproduction: BrilliantColor technology realizes a wider range of color reproduction and improves half tone brightness by employing a unique color processing algorithm and six-color wheel
  • Projection of a PC Screen or Video: Any PC can be connected regardless of the manufacturer or OS as long as an RGB output terminal is provided
  • Various PC Linked Functions: The system will boot up automatically by simply connecting the PC and IP-40SE using a USB cable. Software called "iP Viewer" enables capture of document camera images into the PC or writes them into presentation images

Technical Specs

Application Data Projector
Signal System NTSC/PAL/SECAM/PAL-N/PAL-M/NTSC4.43
Image Device 0.7 inches DLP Panel
Lens Manual Zoom: 1-1.16x
Number of Pixels 786,432 pixels (1024 x 768 dots)
Aspect Ratio 4:3
Contrast Ratio 1500:1
Resolution 1024 x 768
Brightness 2,500 Lumens
Screen Size 33-300" (0.8-7.6 m)
Projection Distance 4.2-36' (1.3-11.0 m)
Lamp 200W Super High-pressure Mercury lamp
Scanning Frequency Horizontal 24.8-68.7 kHz, Vertical 50-85 Hz
Camera 4.13 Mega-pixels color CCD camera
Number of Pixels 2,384 x 1,734 dots, Effective pixels: 2,272 x 1,704 dots
Scanning Size 11.3 x 8.5" (288 x 216 mm)
Reading Speed 3 frames/second
Output Scanner: Exif JPEG (2,272 x 1,704 dots)
System Requirements OS Compatibility: Windows XP English Ver.
Windows Vista English Ver. (64-bit version excluded)
Input/Output RCA Pin Jack 1 ch, S-Video (Mini DIN 4Pin) 1 ch x 1
PC Input: Stereo Mini Jack 1 ch x 1
USB x 1 (type mini B)
SD Memory Card/slot (format: FAT16) x 1
Audio output: 2W Mono
Color System NTSC/PAL/SECAM/PAL-N/PAL-M/NTSC4.43
Power Requirements 100-240VAC, 50/60 Hz
Keystone Correction Vertically ±15deg. (auto adjustable)
Power Source 100-120/220-240VAC, 50/60 Hz
Input Current: 3.1A (100-120VAC), 1.6A (220-240VAC)
Dimensions (W x D x H) 11.4" x 14.2" x 4.8" / 290 x 360 x 123 mm
Weight 11 lbs / 5.0 kg
