Elmo ECart12-221 Classroom Kit with TT-12 Document Camera, CRA-1 Wireless Slate/Tablet, CRC-1 Switcher & CRP-221 Projector

SKU: ELEC12221 MFR: ECART12-221
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,329.00 List Price

Our Price

$2,993.00
Qty:
Add to Wishlist In Stock

About the Elmo ECART12-221

The Elmo ECart12-221 Classroom Kit is a complete interactive classroom solution. It consists of a 3x2 ft cart with rolling wheels, a high image quality TT-12 document camera, a CRA-1 wireless tablet that links up to the camera, a CRC-1 switcher, a CRP-221 LCD projector, two extended-range 5-inch speakers and a 25 watt amplifier. The speakers and amplifier are mounted inside the front of the cart.

The camera lets you capture high-quality video and audio and connect to an optional projector to deliver powerful interactive presentations. You can display video, images and documents and emphasize their details with sophisticated features like split-screen, highlight, mask, picture-in-picture, color filters and annotations. The features are part of an included software called Image Mate and can be applied to images already captured or to those placed under the camera eye for live projection, or to both. The camera has a CMOS sensor that captures 3.4 million pixels worth of information.

The lens of the camera has a 12x optical zoom that combines with an 8x digital zoom to magnify even tiny details of documents or objects by up to 96 times, clearly, without any distortion. The camera arm is swivel-adjustable and lets you get shots from almost any angle, even from upside-down. Audio is captured by a built-in mic and an external mic can optionally be connected. Video is delivered in 1080p HD, in full-motion at 30 frames-per-second. Video, photos and audio can be saved internally via available USB and SD slots, or can be saved onto a connected computer. The TT-12 is compatible with Macs and PCs.

The tablet lets you wirelessly control the camera's presentation functions from up to 50 feet away. It comes with its own software called Image Mate Accent, which includes all the features of the camera's software plus a few additional ones. Without the tablet, the features would be applied using the computer that the camera would be connected to. But with the tablet, you can walk around the room and make annotations and apply other features right on the tablet screen. A special pen comes included for annotations. The tablet wirelessly connects by an included USB transceiver to the same computer that the camera connects to and thus replaces the computer. (The computer must be Windows-based. Although the camera is compatible with both Macs and PCs, the tablet is only Windows-compatible.)

The switcher allows you to switch between connected media sources -- computers, DVD players, portable music players and even other document cameras -- at the press of a button. It supports bi-directional RS-232 and IR communication and is pre-programmed with IR codes for eight leading brands of projectors. You can connect a microphone to the switcher and freely speak over any audio being played, as a "ducking" feature will prevent frequency clashes.

The projector features 2200 lumens of brightness and has enough projection power to allow students in a medium to large room to take notes even if some ambient lights are on. It is equipped with matrix LCD technology and supports resolutions up to XGA. Distortion due to wrong positioning is compensated by an auto vertical keystone correction thanks to which images are displayed clear and square. Lamp control adjusts the brightness of the images. Focus can be achieved by a digital zoom function and an auto setup button enables Input search, Auto Keystone correction and Auto PC adjustment. Connections are available for a computer input and a monitor output. Lamp and filter maintenance functions allow for effective and efficient maintenance. And power management functions allow lamp life to be maintained by reducing lamp power consumption. The projector supports 19 languages.

Elmo ECART12-221 Includes

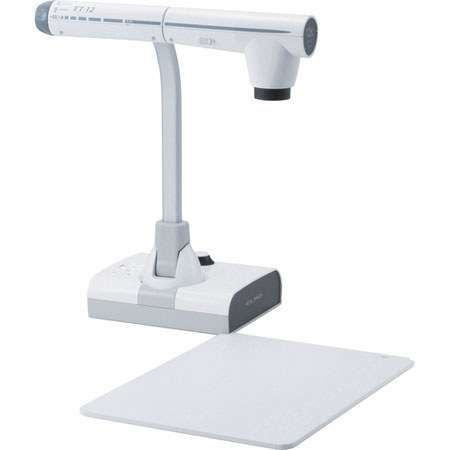

  • Elmo TT-12 Document Camera
  • CRA-1 Wireless Tablet
  • CRC-1 Switcher
  • CRP-221 LCD Projector
  • ECart
  • Two Extended-Range 5-Inch Speakers
  • 25 Watt Amplifier
  • Elmo Warranty

Elmo ECART12-221 Features

  • A 3x2 foot cart with rolling wheels
  • A high-image quality document camera
  • A wireless tablet that links up to the camera
  • A switcher, two speakers and a 25 watt amplifier
  • The speaker and amplifier are mounted inside the cart
  • Captures video / photos and projects images live
  • Connects to Mac or PC and to a projector or digital TV
  • Applies features like picture-in-picture to projected material
  • Captures class sessions to be posted online for students/parents
  • Saves files to computer or internally via USB/SD/SDHC memory slots
  • A 3.4MP CMOS sensor captures bright and colorful images
  • A 12x optical zoom helps magnify even tiny details by up to 96 times
  • The camera arm is adjustable and lets you shoot even from upside-down
  • A built-in mic captures sound and an external mic can optionally be connected
  • Video outputs in full-motion, at 30 frames per second, in resolutions up to 1080p HD
  • The tablet wirelessly controls the camera's presentation functions
  • Walk around the room, apply annotations and features right from the tablet
  • Apply sophisticated features like split-screen, picture-in-picture and color filters
  • Switch between connected media sources at the press of a button
  • Speak over any audio being played and "ducking" will prevent frequency clashes
  • The CRP has 2200 lumens of brightness
  • Lamp control adjusts the brightness of images
  • Auto keystone correction compensates for distortion
  • An auto setup button enables corrections and adjustments
  • Connections are available for a computer input / monitor output

Elmo ECART12-221 Specifications

TT-12 Camera: Sensor 1/2.8" CMOS
3,400,000 pixels
TT-12 Camera: Total Pixels 2,144 (H) x 1,588 (V)
TT-12 Camera: Effective Pixels 1,920 (H) x 1,536 (V)
TT-12 Camera: Frame Rate 30 fps
TT-12 Camera: Resolution Analog RGB: 800 (H) x 800 (V) TV lines or more
Video output: 500 (H) TV lines or more
TT-12 Camera: Zoom Powered, 12X optical
TT-12 Camera: Lens F3.2 - 3.6
f=4.0 mm - 48.0 mm
TT-12 Camera: Shooting Area 1080p:
Max. 16.56 x 9.18" (42 x 23.3 cm)
Min. 1.93 x 1.06" (4.8 x 2.7 cm)
720p:
Max. 16.56 x 9.18" (42 x 23.3 cm)
Min. 1.93 x 1.06" (4.8 x 2.7 cm)
SXGA:
Max. 16.56 x 13.12" (42 x 33.4 cm)
Min. 1.93 x 1.5" (4.8 x 3.8 cm)
WXGA:
Max. 16.56 x 10.18" (42 x 25.9 cm)
Min. 1.93 x 1.18" (4.8 x 3.05 cm)
XGA:
Max. 16.56 x 12.31" (42 x 31.3 cm)
Min. 1.93 x 1.43" (4.8 x 3.6 cm)
TT-12 Camera: Focus Auto / Manual / Zoom Sync
TT-12 Camera: Functions-1 White balance: Auto / One-Push / Manual
Image mode: Text1 / Text2 / Text3 / Graphics1 / Graphics2
Edge enhancement: Provided (only for graphics mode)
Pause: Provided
Still image storage: Provided
Movie storage: Provided
Digital zoom: 8X
Gamma setting: Provided (only for graphics mode)
Graphical OSD (on-screen display): Provided
Slide show: Provided (image data)
TT-12 Camera: Functions-2 Image save: SD memory card / SDHC memory card / USB flash drive
State presetting: Up to 3 user settings
Annotation: Provided (on PC screen)
Brightness control: Auto (with level adjustment) / Manual
Support functions: Highlight, Mask, Scroll (in digital zoom), Mosaic, Split screen, PinP (Picture-in-Picture), Color filter, Microscope, Image rotation (0deg./180deg.), Positive/negative conversion, Color/B&W selection.
TT-12 Camera: Input Selection Main / External
TT-12 Camera: Output Terminals RGB output mini D-sub 15-pin connector, female x 1
Composite video output RCA pin jack / 75 Ohms unbalanced x 1
(NTSC/PAL) HDMI output terminal x 1
Line Out terminal 3.5 mm-diameter stereo mini jack x 1RGB input mini D-sub 15-pin connector, female x 1
Mic In/Line Out terminal (shared), 3.5 mm-diameter stereo mini jack x
TT-12 Camera: Input Terminals RGB input mini D-sub 15-pin connector, female x 1
Mic In/Line Out terminal (shared), 3.5 mm-diameter stereo mini jack x 1
TT-12 Camera: External Control Terminal USB device (2.0 compliant) Mini-B receptacle x 1
TT-12 Camera: Analog RGB Output 1080p: 1,920 x 1,080 @ 60 Hz
720p: 1,280 x 720 @ 60 Hz
SXGA: 1,280 x 1,024 @ 60 Hz
WXGA: 1,280 x 800 @ 60 Hz
XGA: 1,024 x 768 @ 60 Hz
TT-12 Camera: HDMI Output Image output: 1080p/720p
Audio output: PCM 44.1 kHz sampling frequency
TT-12 Camera: Video O/P Selection Switch Provided (NTSC/PAL)
TT-12 Camera: Memory Interface SD memory card slot x 1, USB host (2.0 compliant) Type A receptacle x 1
TT-12 Camera: Illumination White LED lamp
TT-12 Camera: Security Lock Slot Yes
TT-12 Camera: Power Source 12V DC (AC adapter AC 100-240V)
TT-12 Camera: Power Consumption 17.5W
CRA-1 Tablet: Communication Range Approx. 49.2' (15 m)
CRA-1 Tablet: Reading Range 8 x 5" (20.3 x 12.7 cm)
CRA-1 Tablet: Reading Resolution .0127 mm
CRA-1 Tablet: Reading Accuracy .42 mm
CRA-1 Tablet: Reading Speed 120 rps
CRA-1 Tablet: Pen Pressure 1,024 levels
CRA-1 Tablet: Wireless Bandwidth 2.4 GHz
CRA-1 Tablet: Power Supply Lithium-ion battery
CRA-1 Tablet: Runtime Approx. 16 hours
CRA-1 Tablet: Auto Power Off Approx. 30 minutes
CRA-1 Tablet: Full Charge Time Approx. 4 hours
CRA-1 Tablet: Consumption Current When using USB: 5 V 500 mA
When using lithium-ion battery: 3.7 V 60 mA
CRA-1 Tablet: Computer IBM compatible computer equipped with a standard USB port and CD-ROM drive
(Operation is not guaranteed for all computer environments)
CRA-1 Tablet: Compatible OS Windows 7 (32-bit) / Vista SP1 (32-bit) / XP SP2 (32-bit)
CRA-1 Tablet: Operating Temperature 32-104deg.F (0-40deg.C)
CRC-1 Switcher: Analog RGB RGB / RGB 1 / RGB 2:
Connector: D-sub 15-pin female
Video signal: 0.7 Vp-p/75 Ohms
Synchronizing signal level: TTL level
Video frequency characteristics: 400 MHz, 3 dB or higher
Resolution: VGA to SXGA, 1080p
CRC-1 Switcher: Video Video:
Connector: RCA pin jack
VBS signal: 0.7 Vp-p/75 Ohms
Video Output:
Connector: RCA pin jack
VBS signal: No output distortion or attenuation
CRC-1 Switcher: Audio-1 Audio:
Connector type: 3.5 mm-diameter stereo mini jack
Audio frequency band: 280 Hz - 20 kHz
Output impedance: 500 Ohms (right/left)
Output level variable range: 2.0V
Audio 1:
Connector type: 3.5 mm-diameter stereo mini jack
Input impedance: 8000 Ohms (right/left)
Max. input level: max. volume at 1.0 V: Gain=1.89
CRC-1 Switcher: Audio-2 Audio 2:
Connector type: 3.5 mm-diameter stereo mini jack
Input impedance: 8000 Ohms (right/left)
Max. input level: max. volume at 1.0 V: Gain=1.89
Video (L/R):
Connector type: RCA pin jack
Input impedance: 8000 Ohms (right/left)
Max. input level: max. volume at 1.0 V: Gain=1.89
CRC-1 Switcher: Microphone Mic:
Connector type: 6.5mm microphone jack
Microphone type: Condenser microphone, moving-coil microphone
Input impedance: 21400 Ohms
CRC-1 Switcher: RS232C-1 Connector type: D-sub 9-pin female
No. of tables: 8
No. of commands: 6
Baud rate: 4800/9600/19200/38400/115200 bps
Data bits: 7 bits, 8 bits
Stop bits: 1 bits, 1.5 bits, 2 bits
Parity bit: Non/odd/even
Cable length: 15 m (standard value)
Cable type: when using a specified projector, use the supplied cable. In other cases, a commercially available cable is required<
CRC-1 Switcher: RS232C-2 br>Supported projectors:
1. Use the RS cable's D-sub 9 connector:
ELMO: CRP series
Sanyo: LP-XW200 / LP-XW250 / LP-XW300
Hitachi: CP-X308J / CP-X417J / CP-X3010J / CP-X2510J
NEC: NP600SJ / NP500WSJ / NP215J / NP210J / NP115J / NP110J
Epson: EB-410W / EB-826W / EB-825 / EB-85
Sharp: PG-F255W / PG-F312X / PG-F212X
Canon: LV-7375 / LV-7370 / LV-7275 / LV-8300
EIKI: LC-XS25D / LC-XS30D
CRC-1 Switcher: RS232C-3 InFocus: IN2100 / IN2104EP
2. Use the RS cable's Mini DIN 8 connector:
Sanyo: LP-XW60 / LP-XW65 / LP-WXL46
EIKI: LC-XB42
CRC-1 Switcher: Infrared Learning:
Operating distance: Max. 3 cm
No. of learning items: 7 buttons
Frequency: 30 kHz - 42 kHz
Output:
No. of operations: 7
ON, OFF, BLANK, SYNC, Computer, Document Camera, VIDEO
Cable type: Use the supplied cable
CRC-1 Switcher: Power Voltage 12V DC (AC adapter AC 100 - 240V)
CRC-1 Switcher: Power Consumption No device connected: 2.1W
All connected: 3.3W
CRC-1 Switcher: Operating Temperature 32deg.F - 104deg.F (0 - 40deg.C)
CRP-221 Projector: System PAL / SECAM / NTSC / NTSC 4.43 / PAL-M/N
CRP-221 Projector: PC Compatibility UXGA / WXGA / SXGA / XGA / SVGA / VGA / Mac
CRP-221 Projector: Brightness 2200 lumens
CRP-221 Projector: Resolution XGA (1024 x 768)
CRP-221 Projector: Uniformity 85%
CRP-221 Projector: Panel .55" (1.4 cm) TFT Poly x 3
CRP-221 Projector: Number of Pixels 2,359,296
CRP-221 Projector: Contrast Ratio 500:1
CRP-221 Projector: Image Size 3.33 - 25 ft (1 - 7.6 m)
CRP-221 Projector: Aspect Ratio 4:3
CRP-221 Projector: Projection Lamp 220W UHP
CRP-221 Projector: Scanning Frequency H 15 - 100kHz / V 50 - 100Hz
CRP-221 Projector: Dot Clock 140 MHz
CRP-221 Projector: Voltage 100 - 240V
Document camera power port: 12V DC 1.1A
CRP-221 Projector: Power Consumption 212W (eco)
TU rating: 723 (eco)
CRP-221 Projector: Projection Lens F 2.00 - 2.15 / f 0.72 - 0.87" (1.8 - 2.2 cm)
CRP-221 Projector: Throw Distance 4.3 - 38.7' (1.31 - 11.8 m)
CRP-221 Projector: Throw Ratio 1.62 - 1.92
CRP-221 Projector: Zoom Manual
CRP-221 Projector: Zoom Ratio 1:1.2
CRP-221 Projector: Up / Down Ratio 6:1
CRP-221 Projector: Screen Projection Yes
CRP-221 Projector: Ceiling Mountable Yes
CRP-221 Projector: Inputs/Outputs Analog Interface: D-sub 15-pin, RCA
RS-232: D-Sub 9-pin
Audio Output: Stereo Mini
PC Output: Yes
CRP-221 Projector: Keystone Correction V +/- 30deg. (Auto Keystone)
CRP-221 Projector: Digital Zoom 16x - 1/4x
CRP-221 Projector: Speaker Output 1W
CRP-221 Projector: Fan 29dBa (eco)
CRP-221 Projector: Remote Control IR remote
CRP-221 Projector: Lamp Life 6000 hours (eco) / 5000 hours (normal)
CRP-221 Projector: Language Support 19 languages
Dimensions CRC-1 Switcher: 6.6 x 3.5 x 1.7" (16.8 x 9 x 4.3 cm)
CRA-1 Tablet: 12.4 x 10.1 x .9" (31.5 x 25.7 x 2.3 mm)
TT-12 Camera: Setup: 14 x 14.68 x 16.81" (35.5 x 37.3 x 42.6 cm)
TT-12 Camera: Folded: 7.68 x 11.56 x 18.43" (19.5 x 29.4 x 46.9 cm)
Cart: 37.25 x 27.75 x 27.75" (94.6 x 70.5 x 70.5 cm)
The 27.75" width extends open to a maximum of 68.5" (1.73 m)
CRP-221 Projector: 13.1 x 3.4 x 9.7" (33.2 x 8.6 x 24.6 cm)
Weight CRC-1 Switcher:0.67 lbs (0.3 kg)
CRA-1 Tablet: 1.475 lbs (0.67 kg)
TT-12 Camera: 7.1 lbs (3.2 kg)
Cart: 240 lbs (109 kg)
CRP-221 Projector:5.5 lbs (2.49 kg)
