Elmo 26222 Camera Head for SUV-Cam Pro, 9.8' Cable
Elmo

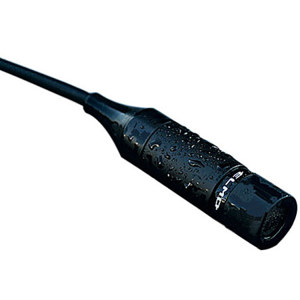

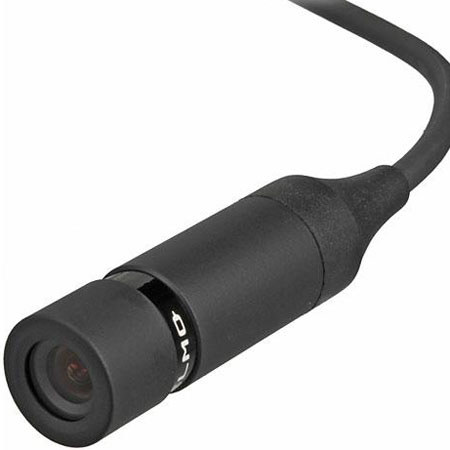

Elmo 26222 Camera Head with 9.8' Cable for SUV-Cam Professional Recorder

SKU: ELM26222 MFR: 26222
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 2 - 4 Weeks from date of order.
What's Included
What's Included With This Item:
  • Elmo 26222 Camera Head with 9.8' Cable for SUV-Cam Professional Recorder
  • 3.8mm Lens
  • Elmo Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$455.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Elmo 2622-2 is a camera head for use with an SUV-Cam Professional recorder unit. In keeping with an SUV-Cam system's intended use in industrial and sports applications, this ultra compact camera features a durable metal cylindrical casing able to withstand a high degree of movement and shock.

The camera is also waterproof and can be submersed in water at depths of up to 132' (40 m). Another important feature of this camera is its stable focusing mechanism, designed to keep the lens from de-focusing under most operating conditions.

Included with the camera is a 3.8mm lens that can be swapped for an optional 8mm (2616-1), 2.8mm (2618) or 6mm (2616) lens.

What's Included With This Item

  • Elmo 26222 Camera Head with 9.8' Cable for SUV-Cam Professional Recorder
  • 3.8mm Lens
  • Elmo Warranty

Key Features

  • Not only is the camera ultra compact but it is also built of a tough metal waterproof material, able to withstand water pressure at depths up to 132' (40m)
  • Pleasure divers and career marine biologists alike will appreciate the opportunity it presents for recording the wondrous sights and sounds under the sea. Users should note however that the recorder part of this system cannot be immersed in water
  • The focusing ring on this camera was designed in such a way so that it won't become de-focused under most operating conditions. However, the manufacturer doesn't guarantee that the camera will remain focused in certain extreme circumstances

Technical Specs

Signal System NTSC/PAL (selectable)
Image Sensor 1/4" Color CCD
Number of Pixels 440,000
Horizontal Resolution 480 Lines
Lens Focal Length 3.8mm
Lens F Number 2
Lens Angle of View 53.4 x 40 deg. (V x H)
Lens Focus Manual
Lens MOD 0.5m to infinity
Minimum Illumination 2 Lux
Microphone Built into the recorder
Controls White Balance
Electronic Shutter
Signal Connectors Proprietary video/power connector
Power Requirements 110VAC
Operating Temperature 14 - 122 deg.F (-10 - +50 deg.C)
Weather-Proof Rating IPX8
Dimensions (Diameter x Length) 0.8 x 3.3" (20 x 84.8mm)
Weight 4.1 oz (115g)
