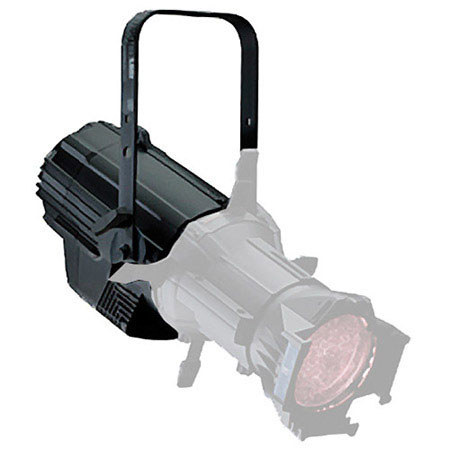

Electronic Theatre Controls ETC Source Four Tungsten LED Light Engine without Lens Tube or Shutter Barrel, 100-240VAC, Black

Electronic Theatre Controls
SKU: ET7460A1060 MFR: 7460A1060
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Electronic Theatre Controls

The Source Four LED line is the result of the marriage of the Source Four and Desire product lines yielding the control of a Source Four with color control of the Desire fixture. This ETC Source Four Tungsten LED Light Engine without Lens Tube or Shutter Barrel (100-240VAC, Black) is comprised of the light engine only. It is intended for those who want to retrofit an existing fixture. There is no shutter barrel on the engine. It is compatible with zoom lens barrels only and requires one for use.

Among the many benefits of the light engine are multiple control options via DMX, superior color rendition, multi-voltage operation and long (50,000 hour) lamp life.

Electronic Theatre Controls Features

  • 60 Luxeon Rebel LED emitters
  • Multiple dimming curve options
  • Preset colors and sequences for stand-alone (no console required) operation
  • White point selection - white light and color behavior based on a specific color temperature white light, i.e. 3200K, 5600K, etc
  • Loss of data behavior options - instant off, hold last look for two minutes, etc
  • Output modes - three output options that offer the user a choice between maximum output and maximum consistency
  • DMX512 in/thru via five-pin XLR connectors
  • Up to nine fixtures can be linked via power in/thru connectors
  • Multiple control options including RGB, strobe and console-free Master/Slave mode
  • 15-bit virtual dimming engine provides smooth, high quality theatrical fades and minimizes color shift during dimming
  • RDM functionality for address and setting changes
  • Thermally insulated rear handle, knobs and shutter handles make handling and aiming easier; gels, patterns and shutters last longer and your performance space stays cooler
  • Die-cast aluminum construction, 20 gauge stainless steel focusing shutters
  • Tool-free lamp centering and peak/flat adjustment knobs are built in
  • Functions with 110-240 AC voltage
  • User-friendly control interface with multiple modes and fixture settings
  • Positive locking Double-clutch fixture body
  • Neutrik power in and thru connections
  • Active electronic thermal management for droop-free operation
  • Quiet fan cooling. Fixture is designed for continuous operation up to 104deg.F (40deg.C) ambient temperature and requires free flow of air around fixture housing
  • Uses Source Four 15 - 30deg. and 25 - 50deg. Zoom tubes only

Electronic Theatre Controls Specifications

Light Source
60 Luxeon Rebel LED emitters
Lamp Life
50,000 hours
Lens (Condenser)
None, optional
Die-cast all-metal housing
M12 hole with C-clamp, safety cable optional
Twin flat blade steel fork, 2 mounting positions
15 - 30deg. and 25 - 50deg. Zoom tubes only
Color Temperature
Color Accuracy
CRI 86, CQS 86, Color Fidelity 86, Duv 0.001
DMX 512 Connectors
Power Requirements
100 to 240VAC 50/60 Hz
Operating Temperature
-4deg. to 104deg.F (-20deg. to 40deg.C)
Approximately 14.3 lbs (6.48 kg)
Mfr #
