Electronic Theatre Controls

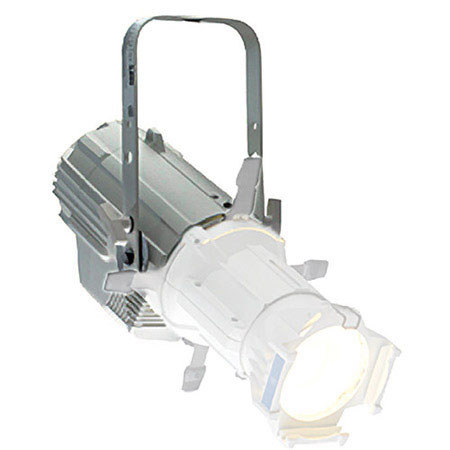

ETC Source Four Daylight LED Light Engine without Lens Tube or Shutter Barrel, 100-240VAC, Silver

SKU: ET7460A10705 MFR: 7460A1070-5
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$2,340.00
Free Shipping
Qty:

Add to Wishlist

About this item

The Source Four LED line is the result of the marriage of the Source Four and Desire product lines yielding the control of a Source Four with color control of the Desire fixture. This ETC Source Four Daylight LED Light Engine without Lens Tube or Shutter Barrel (100-240VAC, Silver) is comprised of the light engine only. It is intended for those who want to retrofit an existing fixture. There is no shutter barrel on the engine. It is compatible with zoom lens barrels only and requires one for use.

Among the many benefits of the light engine are multiple control options via DMX, superior color rendition, multi-voltage operation and long (50,000 hour) lamp life.

What's Included With This Item

  • ETC Source Four Daylight LED Light Engine without Lens Tube or Shutter Barrel
  • 400CC C Clamp for Source 4 Ellipsoidal Spotlights
  • ETC Warranty

Key Features

  • 60 Luxeon Rebel LED emitters
  • Multiple dimming curve options
  • Preset colors and sequences for stand-alone (no console required) operation
  • White point selection - white light and color behavior based on a specific color temperature white light, i.e. 3200K, 5600K, etc
  • Loss of data behavior options - instant off, hold last look for two minutes, etc
  • Output modes - three output options that offer the user a choice between maximum output and maximum consistency
  • DMX512 in/thru via five-pin XLR connectors
  • Up to nine fixtures can be linked via power in/thru connectors
  • Multiple control options including RGB, strobe and console-free Master/Slave mode
  • 15-bit virtual dimming engine provides smooth, high quality theatrical fades and minimizes color shift during dimming
  • RDM functionality for address and setting changes
  • Thermally insulated rear handle, knobs and shutter handles make handling and aiming easier; gels, patterns and shutters last longer and your performance space stays cooler
  • Die-cast aluminum construction, 20 gauge stainless steel focusing shutters
  • Tool-free lamp centering and peak/flat adjustment knobs are built in
  • Functions with 110-240 AC voltage
  • User-friendly control interface with multiple modes and fixture settings
  • Positive locking Double-clutch fixture body
  • Neutrik power in and thru connections
  • Active electronic thermal management for droop-free operation
  • Quiet fan cooling. Fixture is designed for continuous operation up to 104deg.F (40deg.C) ambient temperature and requires free flow of air around fixture housing
  • Uses Source Four 15 - 30deg. and 25 - 50deg. Zoom tubes only

Technical Specs

Light Source 60 Luxeon Rebel LED emitters
Lamp Life 50,000 hours
Material Die-cast all-metal housing
Mounting M12 hole with C-clamp, safety cable optional
Yoke Twin flat blade steel fork, 2 mounting positions
Compatibility 15 - 30deg. and 25 - 50deg. Zoom tubes only
Color Temperature 5,600K
Color Accuracy CRI 71, CQS 70, Color Fidelity 69, Duv 0.001
DMX 512 Connectors Yes
Power Requirements 100 to 240VAC 50/60 Hz
Operating Temperature -4deg. to 104deg.F (-20deg. to 40deg.C)
Weight Approximately 14.3 lbs (6.48 kg)
