Electro-Voice

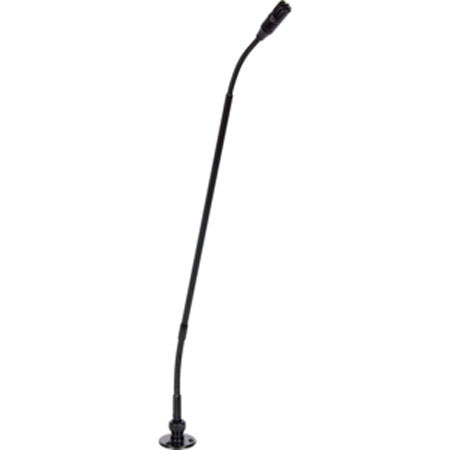

Electro-Voice PolarChoice PC-12/FL 12" Flange Mount Miniature Multi-Pattern Gooseneck Podium Microphone, 50Hz-20000Hz, 200 Ohms Output Impedance

SKU: EVPC12FL MFR: F.01U.117.617
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$456.00 List Price

Our Price

$447.00 $18 per week
Free Expedited Shipping
Qty:
Add to Wishlist

Protect your investment

About the Electro-Voice PC-12/FL

The Electro-Voice PolarChoice PC-12/FL 12" Flange Mount Miniature Multi-Pattern Gooseneck Podium Microphone is highly-shielded from RFI/GSM. Multi-pattern miniature gooseneck podium microphones are designed for sound reinforcement systems where sound quality and gain-before-feedback is of major importance. The multi-pattern versatility of the PolarChoice microphone makes it true "problem solver". With three directional and one non-directional polar pattern available, the PolarChoice microphone is ideal for virtually any installation. Polar patterns can be easily changed, using a small flat bladed screwdriver with the front mounted rotary control on the external electronics module. The control switch has the following settings.

Altering the polar pattern does not change the on-axis sonic character of the microphone; therefore changes in equalizer settings are unnecessary. The PC-12/FL is acoustically designed for high-quality sound reinforcement and broadcast applications. The frequency response is tailored for wide-range sound reproduction with very natural sound pick-up for either distant or close-up use.

The PC-12/FL microphone can be mounted in several different ways. They can be mounted on any fixture that has a standard 5/8" X 27 microphone thread (such as a microphone stand), or they can be mounted to any flat surface using the included threaded flange. Additionally, they can be mounted using the included shock mount and adapter. The cable can be easily changed to exit from either the side, or through the bottom of the microphone.

The small, dual diameter gooseneck has two supple joints and a rigid center tube. The rigid tube prevents unsightly twisting of the gooseneck but permits the user to exactly position the microphone. The electronics module is terminated with a male XLR-type 3-pin connector that allows the microphone to be plugged directly into an existing panel-mount XLR receptacle. The electronics module can also be surface mounted using the included mounting clips. The housing is machined brass for ruggedness and superior EMI/RFI attenuation. The PC-12/FL is designed to be phantom-powered with a wide voltage range of 12-52V dc (DIN Standard 45 596).

The PC-12/FL can be used on lecterns, podiums, desk and tabletops, or other applications that require a threaded or flange mounted gooseneck microphone. To maximize gain-before- feedback the PolarChoice's three directional polar patterns allow the user to pick the directional polar pattern for optimum effect. For those applications where gain before feedback is not a problem, an omnidirectional pattern is included. Applications requiring speaking close to the microphone at podiums, lecterns, or pulpits normally require a windscreen to control breath noise and P-popping or, in some cases, wind noise from circulating air.

Electro-Voice PC-12/FL Includes

  • Electro-Voice PolarChoice PC-12/FL 12" Flange Mount Miniature Multi-Pattern Gooseneck Podium Microphone
  • Windscreen
  • 2-Piece Shock Mount
  • Electronics Module Mounting Clip
  • Electro-Voice 3 Year Warranty

Electro-Voice PC-12/FL Specifications

Generating Element Dual condenser, back electrets
Frequency Response 50Hz to 20000Hz
Polar Patterns Omni directional, Cardioid, Supercardioid, Hypercardioid
Sensitivity Open Circuit Voltage, 1kHz: 5.6mV/Pascal
Clipping Level (1% THD) > 127 dB SPL
Equivalent Noise < 26 dB SPL "A" weighted (0 dB=20 micropascals)
Dynamic Range > 101 dB
Output Impedance, 1 kHz 200 Ohms
Power Requirements Phantom, 12-52VDC
Current Consumption < 5mA with P48 supply
Polarity Pin 2 positive, referenced to pin 3, with positive pressure on the diaphragm
Dimensions Gooseneck Length: 316.4mm (12.45")
Head Diameter: 14.6mm (0.57")
Gooseneck Diameter: 6.4/7.9mm (0.25/0.31")
Electronics Module Diameter: 20mm(0.78")
Connector Diameter: 19mm (0.74")
Weight 111g / 3.92oz
