how do you attach the fiber optic cable connection to the water proof camera housing?
i. The fiber optic cable consists of two ends: One is attached to a white plastic fitting (flat white plastic at the end of the cable with Allen screw inside), and the other is loose. Insert the exposed end of the fiber optic cable (the end without the fitting) into the
small hole of the black Nano Adaptor unit, starting from the end that features a screw and pushing it towards the end that features an O-ring, until the fiber optic cable reaches the end of the adaptor.
ii. Use the tool included in the Nano Adaptor Kit in order to tighten the screw on the adaptor. Tighten it enough to stabilize the fiber optic cable inside the adaptor, but don't tighten it too strongly. Tightening the screw too much might damage the fiber optic cable.

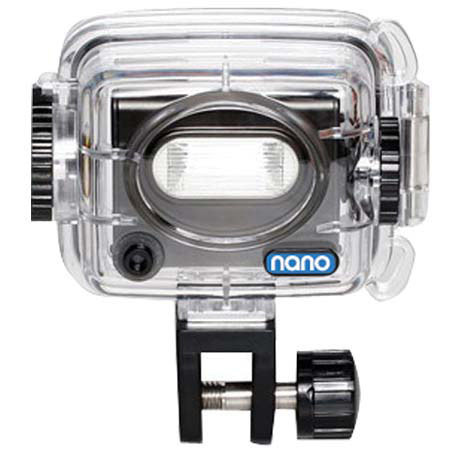

iii. Install the black and clear plastic diffuser cover on the Nano Flash Housing.
iv. Insert the Nano Adaptor inside the lower right grommet (the one with the wider hole) of the black diffuser cover, so that the adaptor screw doesn't get in its way. Insert it all the way to the end, and do not use force once you encounter any resistance ).
v. If attaching the Fiber Optic Cable to a Fantasea FP7000 Housing or any other housing that features a dedicated fiber optic cable attachment configuration, please refer the housing instruction manual for specific instructions regarding attaching the
fiber optic cable to the camera housing. If attaching the Fiber Optic Cable to any other standard camera housing, please follow the instructions below.
vi. The other end of the fiber optic cable attaches outside of the camera housing opposite the camera internal flash by using both sides of the Velcro strip included in the kit. The white plastic fitting normally comes with the Velcro tape attached and therefore you are only required to apply the other side of the Velcro strip on the housing to receive it. If your housing features a built-in flash diffuser, the Velcro strip should be attached beneath it, directly to the housing.
