Fostex

Fostex 3-Channel Audio Mixer / Stereo Recorder, 24bit/96kHz Recording Capability

SKU: FTXAMSDCR302 MFR: DC -R302
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

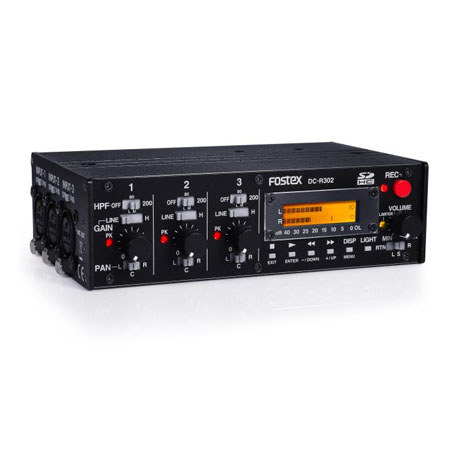

The Fostex 3-Channel Audio Mixer / Stereo Recorder is a professional, portable audio recorder designed specifically for use with DSLR cameras. It features three XLR mic preamps each with its own limiter, high pass filter, volume control and 48V phantom power. With its onboard line-mixer and rugged, extruded aluminum chassis the DC-R302 is an ideal solution for field recording.

It also helps simplify the capture process by allowing you to operate the recorder and camera simultaneously. Not only does the DC-R302 capture and sync high-quality 24bit/96kHz audio with your DSLR's video footage, it also offers metering capabilities and a built-in headphone monitoring system.

The DC-R302 captures directly to SDHC cards and transfers both audio and data via USB. The DC-R302 includes a DSLR mounting bracket, allowing a camera to mount its top panel. 3 screw holes on the bottom panel allow the DC-R302 to be mounted on a tripod.

What's Included With This Item

  • Fostex 3-Channel Audio Mixer / Stereo Recorder
  • Camera Mount Bracket
  • Fostex Warranty

Key Features

  • Features three XLR inputs each with its own Limiter and High Pass Filter
  • Independent 48V Phantom power for use with condenser microphones
  • Headphone monitoring of left, stereo, right and return
  • Convenient Auto Slate Tone (1kHz / sine wave) function for subsequent synchronization
  • USB file transfer and audio output for PC recording and live streaming
  • Powered by four AA batteries or external DC 9 to 24V power adapter
  • Rugged and lightweight extruded aluminum chassis
  • Includes DSLR mounting bracket that attaches to the top
  • 3 screw holes on the bottom allow the DC-R302 to mount on a tripod
  • Can be used as independent mixer/recorder without DSLR or a computer
  • Compatible with wired remote controls such as the Panasonic DMW-RS1 or equivalent

Technical Specs

Inputs 3 x XLR balanced
Reference Input Level: Hi -60, Mid -55, Low -50 dBu (Mic), -10 dBu (Line)
Maximum Input Level: Hi -32, Mid -27, Low -22 dBu (Mic), +10 dBu (Line)
Input Impedance: more than 10k ohm
Phantom power: P48V+-4V (10mA/CH) (Mic)
RTN Input Connector: 3.5mm, stereo mini (unbalanced)
Reference Input Level: -10 dBV
Maximum Input Level: +2 dBV
Input Impedance: more than 10 kohm
Main Output Connector: RCA pin / unbalanced
Reference Output Level: -10 dBV (at reference level input and -12 dBFS signal
Maximum Output Level: +2 dBV (at 0 dBFS)
Load Impedance: more than 10 kohm
Mic Output Reference Output Level: -50 dBV (at reference level input)
Maximum Output Level: -30 dBV
Load Impedance: more than 10k ohm
Performance Frequency response:
Line In - Main out: 20 - 20 kHz +-1dB (at reference level)
Mic In - Main out: 40 - 20 kHz +-3dB (at reference level)
S/N ratio (A-weighted):
Line: more than 95 dB (Input Gain -10 dBV)
MIC: more than 55dB (Max. Input Gain - 150 ohm loaded)
Total harmonic distortion:
Line: less than 0.01% at 1 kHz (Input gain: Line)
Mic: less than 0.1% at 1 kHz (Input gain: Hi)
Power Internal batteries: 4 x AA (alkaline or NiMH) rated range DC 4.8 to 6V
External power supply: AC adapter or equivalent, rated range DC9 to 24V
Dimensions (WxHxD) 5.98x1.65x4.21" / 15.18x4.19x10.69cm (without camera mount)
5.98x2.06x4.21" / 15.18x5.23x10.69cm (with camera mount)
Weight 1.52lbs / 0.68kg
