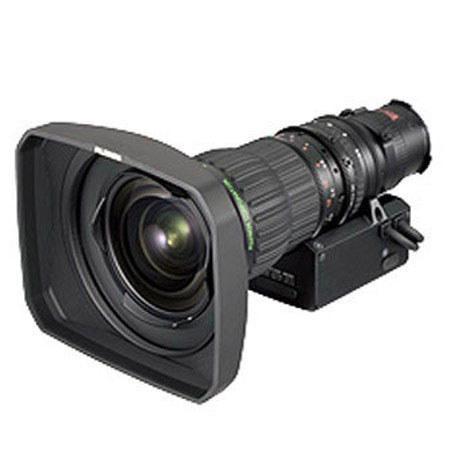

Fujinon ZA12X4.5BEMD-DSD 4.5-54mm f/1.8-2.4 Professional Video Lens with Motor Drive, 12x Zoom Ratio and 2x Extender


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Fujinon ZA12X4.5BEMD-DSD

The Fujinon 4.5-54mm f/1.8-2.4 Lens with Digital Servo provides 2/3" cameras with a super wide angle-of-view, a 35mm equivalent of approximately 17.7-212.2mm. The lens features a very fast maximum aperture of f1.4 at 4.5-41mm and f/2.4 at 54mm. Motor Drive makes this lens suitable for full servo remote control as part of a pan and tilt system. This servo cannot be controlled while on the shoulder. An integrated 2x extender effectively doubles the focal range.

Internal focusing minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end of the lens to check focus. Releasing the button automatically returns the lens to the previously selected focal length. Zoom Limit purposefully constrains the focal range to only desirable focal lengths.

Fujinon ZA12X4.5BEMD-DSD Features

  • Super wide angle for 2/3" format cameras
  • 35mm equivalent of approximately 17.7-212.2mm
  • Very fast f/1.8 max aperture at 4.5-41mm and f/2.4 at 54mm
  • Motor Drive for full servo remote control
  • Innerfocus, QuickZoom and Zoom Limit

Fujinon ZA12X4.5BEMD-DSD Specifications

2/3" Sensors
Focal Length
4.5 - 54mm
Zoom Ratio
4.5 - 41mm: f/1.8
54 mm: f/2.4
Minimum Focus Distance
From Image Plane: 23.23" (59 cm)
From Front of Lens: 11.81" (30 cm)
Object Dimensions @ M.O.D. (16:9)
4.5mm: 29.8 x 16.7" (75.7 x 42.5 cm)
54mm: 2.3 x 1.3" (5.9 x 3.3 cm)
Angular Field of View (16:9)
4.5mm: 93deg.38' x 61deg.50'
54mm: 10deg.09' x 5deg.43'
Filter Size
M127 with 0.75 pitch (filter attaches to the lens hood)
Dimensions (Dia. x L)
2.74 x 9.35" / 69.59 x 237.49cm
4.41 lbs / 2 kg
