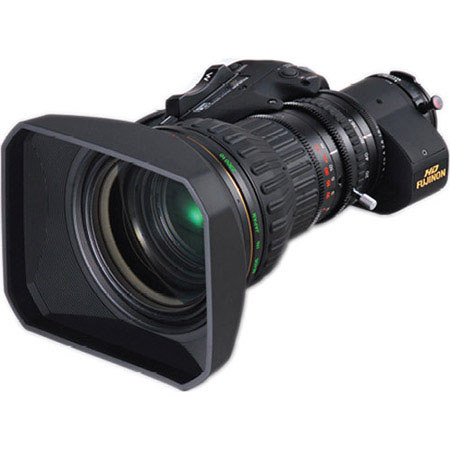

Fujinon ZA12x4.5BRD-S6 4.5-54mm f/1.8-2.4 Professional Video Lens with Servo for Focus and Zoom


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Fujinon ZA12x4.5BRD-S6

The Fujinon ZA12x4.5BRD-S6 4.5-54mm Lens with Servo for Focus and Zoom is a 4.5-54mm lens, designed to provide 2/3" cameras with an ultra wide to telephoto angle-of-view. The lens has a zoom ratio of 12x. The maximum aperture is a fast f/1.8 at 4.5-41mm and stops down to f/2.4 at 54mm. The lens also includes a digital servo for focus and zoom, which enables full studio control via RS-232.

Innerfocus minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating electronic and mechanical parameters.

Fujinon ZA12x4.5BRD-S6 Features

  • 4.5-54mm wide to telephoto 12x zoom lens for 2/3" cameras
  • Fast f/1.8 max aperture at 4.5-41mm and f/2.4 at 54mm
  • Digital servo for focus and zoom and full studio control via RS-232
  • Innerfocus, QuickZoom and Zoom Limit
  • Focused Intelligent Network Diagnosis

Fujinon ZA12x4.5BRD-S6 Specifications

2.3" sensors
Focal Length
4.5 - 54 mm
Zoom Ratio
Maximum Aperture
4.5 - 41 mm: f/1.8 (T2.0)
54 mm: f/2.4 (T2.9)
M.O.D. From Image Plane
1.93' (0.59 m)
M.O.D. from Front of Lens
0.98' (0.3 m)
Object Dimensions at M.O.D. (16:9)
4.5 mm: 29.8 x 16.73" (757 x 425 mm)
54 mm: 2.32 x 1.3" (59 x 33 mm)
Angular Field of View (16:9)
4.5 mm: 93deg. 38' x 61deg. 50'
54 mm: 10deg. 09' x 5deg. 43'
Filter Thread
M127 x 0.75
3.74 x 9.35" (95 x 237.5 mm) without lens hood
4.19 lbs (1.9 kg) without lens hood
