Fujinon

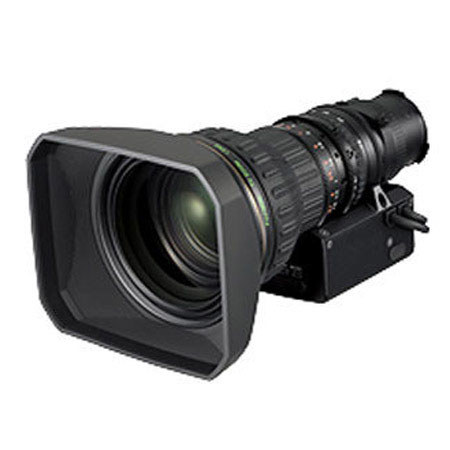

Fujinon ZA22X7.6BMD-DSD 7.6-167mm f/1.8-2.5 Lens with Motor Drive, 22x Zoom Ratio and 2x Extender

SKU: FU2276BMDDSD MFR: ZA22X7.6BMD-DSD
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$21,174.95
Free Expedited Shipping
Free Shipping
Qty:
Add to Wishlist

About the Fujinon ZA22X7.6BMD-DSD

The Fujinon 7.6-167mm f/1.8-2.5 Lens with Motor Drive and 2x Extender provides 2/3" cameras with a slightly wide to super telephoto focal range. The lens features a 22x zoom ratio and a fast maximum aperture of f/1.8 at 7.6-120mm and f/2.5 at 167mm. Motor Drive makes this lens suitable for full servo remote control as part of a pan and tilt system. This servo cannot be controlled while on the shoulder.

Internal focusing minimizes the effects of lens breathing, ensuring a more consistent focal length when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Zoom Limit function purposefully constrains the focal range to only desirable focal lengths.

Fujinon ZA22X7.6BMD-DSD Features

  • 7.6-167mm focal length, a 22x zoom ratio for 2/3" cameras
  • Fast maximum aperture of f/1.8 at 7.6-120mm and f/2.5 at 167mm
  • Motor Drive for full servo remote control
  • Innerfocus, QuickZoom and Zoom Limit

Fujinon ZA22X7.6BMD-DSD Specifications

Format 2/3" sensors
Focal Length 7.6 - 167mm
Zoom Ratio 22x
Aperture 7.6 - 120mm: f/1.8 (T1.9)
167mm: f/2.5 (T2.6)
Minimum Focus Distance From Image Plane: 3.51' (1.07 m)
From Front of Lens: 2.62' (0.8 m)
Object Dimensions @ M.O.D. (16:9) 7.6mm: 36.02 x 20.24" (91.5 x 51.4 cm)
167mm: 1.69 x 0.94" (4.3 x 2.4 cm)
Angular Field of View (16:9) 7.6mm: 64deg.30' x 39deg.03'
167mm: 3deg.17' x 1deg.51'
Filter Size M95 (x1, filter attaches to the lens hood)
M107 (x1, filter attaches to the lens hood)
Dimensions (Dia. x L) 3.84 x 8.76" (9.75 x 22.25cm)
Weight 3.79 lb (1.72 kg)
