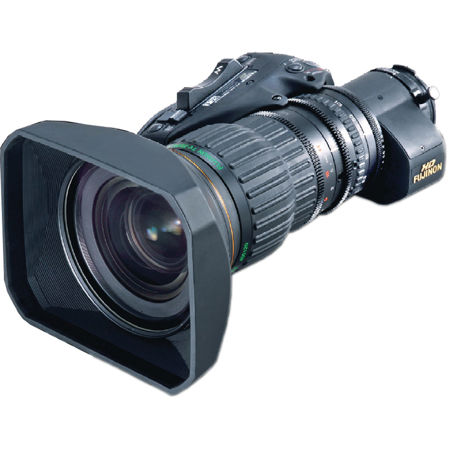

Fujinon HA18X7.6BERD-S6B 7.6-137mm ENG Lens with Digital Servo for Focus & Zoom, 18x Zoom Ratio, 2x Extender

Fujinon
SKU: FUHA18X76S6B MFR: HA18X7.6BERD-S6B

Our Price

$22,650.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Fujinon HA18X7.6BERD-S6B

The Fujinon HA18X7.6BERD-S6B 7.6-137mm ENG Lens with Digital Servo for Focus & Zoom is a 7.6-137mm lens, designed to provide 2/3" cameras with a wide to telephoto angle-of-view. The lens has a zoom ratio of 18x and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 7.6-105mm and stops down to f/2.4 at 137mm. The lens also includes a digital servo for focus and zoom, which enables full studio control via RS-232.

Innerfocus minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating electronic and mechanical parameters.

Fujinon HA18X7.6BERD-S6B Features

  • 7.6-137mm wide to telephoto zoom lens for 2/3" cameras
  • 18x zoom ratio and 2x extender
  • Fast f/1.8 max aperture at 7.6-105mm and f/2.4 at 137mm
  • Digital servo for focus and zoom and full studio control via RS-232
  • Innerfocus, QuickZoom and Zoom Limit
  • Focused Intelligent Network Diagnosis

Fujinon HA18X7.6BERD-S6B Specifications

Format
2.3" sensors
Focal Length
7.6-137mm
Zoom Ratio
18x
Extender
2x
Maximum Aperture
7.6-105mm: f/1.8 (T1.9)
137mm: f/2.4 (T2.6)
M.O.D. From Image Plane
2.76' (0.84m)
M.O.D. from Front of Lens
1.97' (0.6m)
Object Dimensions at M.O.D. (16:9)
7.6mm: 27.4 x 15.43" (695.96 x 391.92mm)
137mm: 1.61 x 0.91" (40.89 x 23.11mm)
Angular Field of View (16:9)
7.6mm: 64deg.30' x 39deg.03'
137mm: 4deg.01' x 2deg.15'
Filter Thread
M82 x 0.75
Dimensions
3.35 x 8.03" / 85.09 x 203.96mm (without lens hood)
Weight
3.64lbs / 1.65kg (without lens hood)
