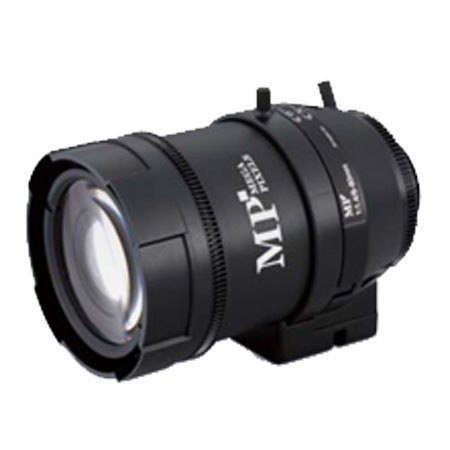

Fujinon Fujifilm 1/2" 8-80mm C-Mount Vari-focal Lens, 3MP, 10x Zoom, F1.4-Close Iris Range, 491mm Exit Pupil Position

Fujinon
SKU: FUJ10X8SA1 MFR: DV10X8SA-1

About Fujinon 8-80mm

The Fujifilm Fujinon 1/2" 8-80mm C-Mount Vari-focal Lens has a manual iris range of f1.4 and is ideally suited for 1/2"-type image sensors. Detailed imagery is offered even at low-intensity lighting. The lens allows manual operation of zoom, focus and iris. Intended for applications that require a greater object distance between the lens and the camera, the lens has a focal length that ranges from 8-80mm and a 10x zoom.

Designed with a glass that offers low-dispersion and a high refractive index, the high-accuracy aspheric lens maximizes optical performance. A C-type mount (metal) is integrated into the lens assembly.

Fujinon 8-80mm Features

  • Iris range of f1.4 enhances the performance even at low-intensity lighting
  • Compatible with 1/2"-type image sensors
  • Uses manual zoom, iris and focus
  • Focal length ranges from 8-80 mm and offers 10x zoom - ideal for applications that require a greater object distance between the lens and the camera
  • Glass offers low dispersion and a high refractive index
  • High-accuracy aspheric lens maximizes optical performance
  • Equipped with a C-type metal mount

Fujinon 8-80mm Specifications

Mount
C
Focal length
8 mm - 80 mm (10x)
Focus
Manual
Iris Range
F1.4 - Close
Iris
Manual
Zoom
Manual
Back Focal Distance (In Air)
15.61 mm
Exit Pupil Position (From Image Plane)
491 mm
Object Dimensions at M.O.D
4: 3 Aspect Ratio:
1/2": 1247x918 mm / 148x111 mm
1/3": 918x681 mm /111x83 mm
1/4": 604x453 mm / 74x 56 mm
16: 9 Aspect Ratio: 1/2": 1369x744 mm / 161x91 mm
1/3": 1005x554 mm / 121x68 mm
1/4": 659x371 mm / 81x45 mm
Angular Field of View
4: 3 Aspect Ratio:
1/2": 44deg.21' x 33deg.25' / 4deg.38' x 3deg.30'
1/3": 33deg.25' x 25deg.06' / 3deg.30' x 2deg.38'
1/4": 22deg.20' x 16deg.50' / 2deg.20' x 1deg.45'
16: 9 Aspect Ratio:
1/2": 48deg.11' x 27deg.20' / 2deg.52' x 5deg.02'
1/3": 36deg.22' x 20deg.31' / 3deg.48' x 2deg.09'
1/4": 24deg.19' x 13deg.49' / 2deg.33' x 1deg.26'
Focusing Range (From Front of the Lens)
infinity - 1.5 m
Coil Resistance
Drive Coil: 190 Ohms
Damping Coil: 1,150 Ohms
Current Consumption
23 mA (Max.) at DC 4V
Weight
160 g / 5.64 oz
Mfr #
DV10X8SA-1
SKU
FUJ10X8SA1
