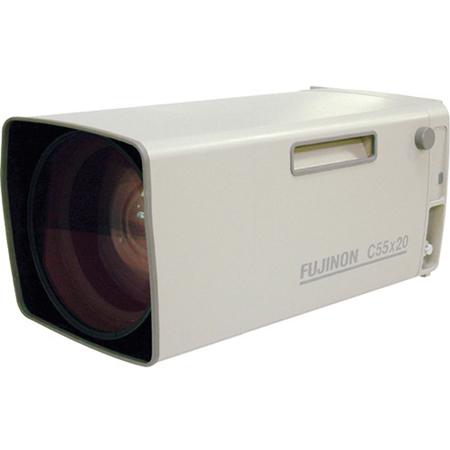

Fujinon 20-1100mm Telephoto Zoom Lens for Day/Night Cameras, F3.0 - T1500 Iris Range, 55x Zoom, 40-2200mm (2x Extender) Focal Length

SKU: FUJ20R2QEP1B

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Fujinon 20-1100mm Specifications

  • Compatibility

    Day/Night Cameras

  • Mount

    C

  • Focal length

    1x: 20 - 1100mm (55x)
    2x: 40 - 2200mm (55x)

  • Focus

    Servo Control

  • Iris Range

    1x: F3.0 - T1500 (Equivalent to F1500)
    2x: F6.0 - T3000 (Equivalent to F3000)

  • Iris

    Auto (Video Type) or Servo Control

  • Zoom

    Servo Control

  • Back Focal Distance (In Air)

    28.04 mm

  • Angle of View

    1x
    1": 35deg.29'x26deg.59' / 0deg.40'x0deg.30'
    2/3": 24deg.49'x18deg.44' / 0deg.27'x0deg.21'
    1/2": 18deg.10'x13deg.41' / 0deg.20'x0deg.15'
    2x
    1": 18deg.10'x13deg.41' / 0deg.20'x0deg.15'
    2/3": 12deg.25'x9deg.22' / 0deg.44x0deg.10'
    1/2": 9deg.05'x6deg.52' / 0deg.10'x0deg.08'

  • Minimum Object Distance (M.O.D.)

    infinity - 2.4 (1x and 2x)

  • Object Dimensions at M.O.D.

    1x
    1": 1400x1051mm
    25x19mm
    2/3": 963x23mm
    17x13mm
    1/2": 700x525mm
    13x10mm
    2x
    1": 700x525mm
    13x10mm
    2/3": 482x361mm / 9x7mm
    1/2": 350x263mm / 6x5mm

  • Extender

    2x

  • Dimensions (WxHxD)

    10.8x10x22.6" (274.32x254x574.04mm)

  • Weight

    21kg / 46.29lbs

About Fujinon 20-1100mm

The Fujifilm Fujinon 20-1100mm Telephoto Zoom Lens (55x Zoom) with near-infrared wavelength selection mechanism is suitable for use with day/night cameras. In addition to 55x zoom, the lens with 2x extender has a focal length that ranges from 40-2200mm and an aperture of f/3 (extendable up to f/6). When used with 1/2" cameras, the lens can achieve telephoto at the field angle of 0deg.10', making it suitable for long distance monitoring (when used on 1/2" cameras). The lens coating reduces reflections from the lens' surface and helps maintain image quality over various lighting conditions - from visible light to near-infrared light.

Equipped with a C-type lens mount (metal), the telephoto lens is compatible with 1", 2/3" and 1/2" cameras. It allows servo control operation of zoom and focus and features auto (video type) or servo control iris and a built-in ND filter of T3000 (2x) and RS-232C interface for advanced control. The Telephoto Zoom Lens can be equipped with a stabilize adaptor.

Fujinon 20-1100mm Features

  • Near-infrared wavelength selection mechanism
  • Suitable for use with day/night cameras
  • Focal length of 40-2200 mm, aperture of f/3 (extendable up to f/6) and 2x extender
  • 55x zoom
  • Back focal distance - 28.04mm
  • Can achieve telephoto at the field angle of 0deg.10', hence is suitable for long distance monitoring (when used on 1/2" cameras)
  • Lens coating reduces reflections from the lens' surface and helps maintain image quality over various lighting conditions - from visible light to near-infrared light
  • Features a built-in ND filter of T3000 (2x)
  • RS-232C interface for advanced control
  • Equipped with a C-type lens mount (metal)
  • It can be equipped with a stabilize adaptor
  • Compatible with 1", 2/3" and 1/2" cameras
  • Allows servo control operation of zoom and focus
  • Features auto (video type) or servo control iris

Key Features

  • Near-infrared wavelength selection mechanism
  • Suitable for use
  • 55x zoom
  • Back focal distance - 28.04mm
  • Features a built-in ND filter of T3000 (2x)
  • RS-232C interface for advanced control
