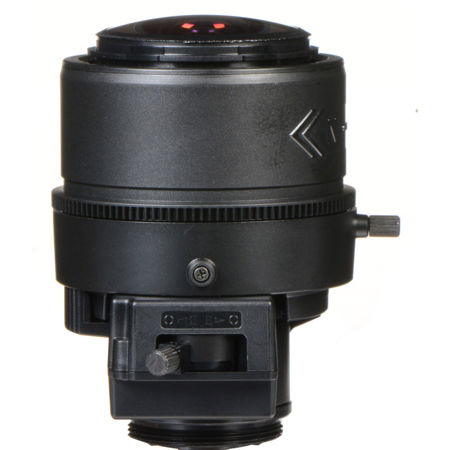

About Fujinon 3.8-13mm F/1.4

The Fujifilm Fujinon 1/2" 3.8-13mm Manual C- Mount Vari-focal Lens has an iris range of F1.4 and a 97deg. horizontal angle of view at 3.8mm. It allows for manual operation of the zoom, focus and iris and is compatible with 1/2", 1/3" and 1/4" type image sensors.

Designed for use with indoor security applications, the 3MP Vari-focal Lens has a focal length that ranges from 3.8-13 mm and a zoom capability of 3.4x. Equipped with a glass that offers low dispersion and a high refractive index, the high-accuracy aspheric lens maximizes optical performance. A C-type lens mount (metal) is integrated into the lens assembly.

Fujinon 3.8-13mm F/1.4 Features

  • Iris range of F1.4 and a 97deg. horizontal angle of view at 3.8mm
  • Allows for manual operation of the zoom, focus and iris
  • Compatible with 1/2", 1/3" and 1/4" type image sensors
  • Designed for use with indoor security applications
  • Focal length ranges from 3.8-13mm and zoom capability is 3.4x
  • Equipped with a glass that offers low dispersion and a high refractive index
  • High-accuracy aspheric lens maximizes optical performance
  • Equipped with a C-type lens metal mount

Fujinon 3.8-13mm F/1.4 Specifications

Mount
C
Focal length
3.8 mm - 13 mm (3.4x)
Focus
Manual
Iris Range
F1.4 - T360 (Equivalent to F360)
Iris
Manual
Zoom
Manual
Back Focal Distance (In Air)
10.60 mm
Exit Pupil Position (From Image Plane)
461 mm
Object Dimensions at M.O.D
4: 3 Aspect Ratio:
1/2": 715x452 mm / 170x126 mm
1/3": 452x313 mm/ 126x94 mm
1/4": 313x225 mm / 94x70 mm
16: 9 Aspect Ratio: 1/2": 851x347 mm / 185x103 mm
1/3": 511x248 mm / 138x77 mm
1/4": 347x181 mm / 103x57 mm
Angular Field of View
4: 3 Aspect Ratio:
1/2": 97deg.34' x 71deg.47' / 28deg.23' x 21deg.18'
1/3": 71deg.47' x 53deg.25' / 21deg.18' x 15deg.59'
1/4": 53deg.15' x 39deg.41' / 15deg.59' x 11deg.59'
16: 9 Aspect Ratio:
1/2": 107deg.12' x 58deg.10' / 30deg.55' x 17deg.25'
1/3": 78deg.34' x 43deg.18' / 23deg.12' x 13deg.04'
1/4": 58deg.10' x 32deg.20' / 17deg.25' x 9deg.48'
Focusing Range (From Front of the Lens)
infinity - 0.3 m
Coil Resistance
Drive Coil: 190 Ohms
Damping Coil: 500 Ohms
Current Consumption
23 mA (Max.) at DC 4V
Weight
80 g / 2.82 oz
Mfr #
DV3.4X3.8SA-1
SKU
FUJ4X38SA1
