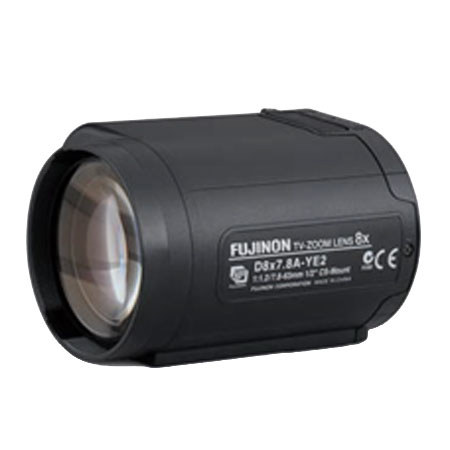

Fujinon 8x Standard Zoom Lens, F1.2-T400 Iris Range, 7.8-63mm Focal Length, 1/2" Imager Size
What's Included With This Item:
- Fujinon 8x Standard Zoom Lens
- Iris Control Cable
- Connector (10-pin)
- Fujinon Warranty
The Fujinon 8x Standard Zoom Lens (7.8-63mm) is a standard security zoom lens with has a wide aperture of f/1.2 and offers optimal performance in low-lighting conditions, rendering it suitable for security and monitoring applications. The lens has a focal length that ranges from 7.8-63mm and an 8x zoom. the lens can be easily installed in discreet small CCTV housings. In addition to offering motor-driven operation of zoom and focus, the lens provides for auto (DC-type) operation of the iris. The T400-based built-in ND (Neutral Density) filter allows you to use the lens with highly sensitive cameras. Integrated into the lens is a built-in preset potentiometer for ease of operation. You can use the 8x Standard Security Zoom Lens at multiple power levels including ±6V and ±12V. A CS-type metal mount is integrated into the lens assembly and the unit also comes with an iris control cable and a connection connector.
|Imager Size||1/2" (also 1/3", 1/4")|
|Focal Length||7.8-63 mm (8x)|
|Iris Range||F1.2-T400 (equivalent to F400)|
|Zoom Operation||Motor drive|
|Focus Operation||Motor drive|
|Iris Operation||DC iris|
|Angle of View||1/2" Wide: 44deg.37'x34deg.12'
1/2" Tele: 5deg.49'x4deg.22'
1/3" Wide: 34deg.12'x25deg.59'
1/3" Tele: 4deg.22'x3deg.16'
1/4" Wide: 25deg.59'x19deg.38'
1/4" Tele: 3deg.16'x2deg.27'
|Minimum Object Distance (M.O.D.)||infinity - 1.2 m|
|Object Dimensions at M.O.D||1/2" Wide: 944x708
1/2" Tele: 117x88
1/3" Wide: 708x531
1/3" Tele: 88x66
1/4" Wide: 531x398
1/4" Tele: 66x49
|Back Focus||14 mm (in air)|
|Filter Size||M55 x 0.75mm|
|Dimensions (WxHxD)||2.8x2.4x3.8" (7.11x6.09x9.65cm)|
