Fujinon HF25HA-1B 2/3" 25mm F1.4-F22 Fixed Focal Lens for 1.5MP Cameras, Manual Iris, C-Mount, Industrial and Machine Vision Applications

Fujinon
SKU: FUJHF25HA1B MFR: HF25HA-1B

About Fujinon 25mm F1.4-F22

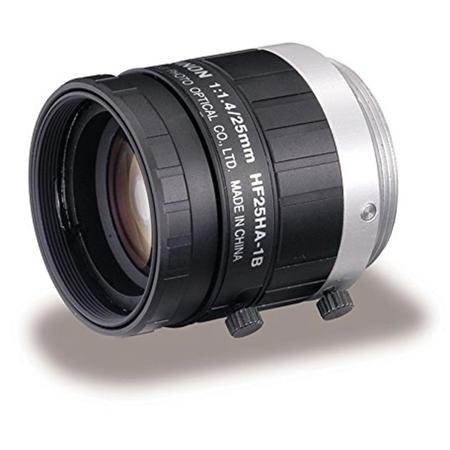

The Fujifilm Fujinon HF25HA-1B C-Mount 25mm f/1.4 2/3" Fixed Focal Machine Vision Lens is a very high quality C-mount lens designed for industrial applications like robotics and machine vision. It is intended to deliver quality images when working with cameras with sensors up to 1.5 megapixel resolution. Among its features this lens has locking focus and iris rings so it can operate consistently in jobs where the camera may experience significant vibration. This lens shows a narrow 10deg. horizontal angle of view.

Fujinon 25mm F1.4-F22 Features

  • This lens is designed with quality glass and advanced anti-reflective coatings to produce detailed images in harsh environments. Fujinon developed this lens to work on cameras with up to 1.5 megapixel sensors
  • The HF25HA-1B is a completely manual C-mount lens designed for high quality images in potentially difficult applications
  • The HF25HA-1B delivers a narrow angle of view so you'll see exactly what you need to see and nothing more. This lens produces a 10deg. horizontal angle of view, with a 8deg. vertical angle

Fujinon 25mm F1.4-F22 Specifications

Mount
C
Focal length
25 mm
Focus
Manual
Iris Range
F1.4-F22
Iris
Manual
Back Focal Distance (In Air)
14.58 mm
Exit Pupil Position (From Image Plane)
-32.4 mm
Object Dimensions at M.O.D.
53x40 mm
Angular Field of View
19deg.58' x 15deg.02'
Focusing Range (From Front of the Lens)
infinity - 0.15 m
Filter Thread
M25.5x0.5 mm
Weight
45g / 1.59oz
