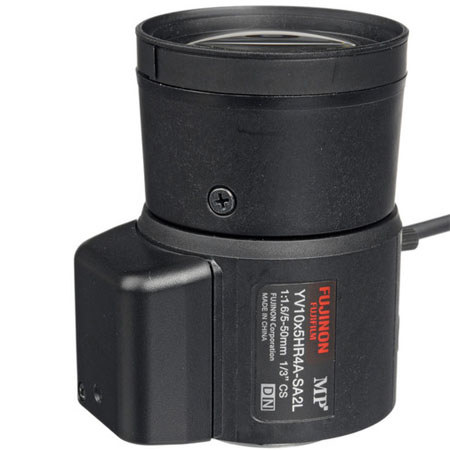

The Fujifilm Fujinon 1.3 Megapixel Varifocal T360 Lens (5-50mm, 10x Zoom) has a wide aperture of f/1.6, offering detailed imagery even at low light. In addition to 10x zoom, the lens has a broad range of focal length that ranges from 5-50mm. The lens is designed with a high-accuracy aspheric lens, low-dispersion glass and high refractive-index glass, which maximize the optical performance. It features a built-in ND filter of T360 to support high sensitivity cameras.
Equipped with a CS-type lens mount (metal), the varifocal lens is suitable for color, B&W and Day/Night cameras. It allows manual operation of zoom and focus and features DC auto iris.
|Imager Size||for 1/3" camera|
|Focal Length||5-50mm (10x)|
|Aperture||F1.6 - T360 (equivalent to F360)|
|Iris Operation||DC iris|
|Angle of View||1/3" Wide: 51deg.17' x 39deg.36'
1/3" Tele: 5deg.30' x 4deg.7'
1/4" Wide: 39deg.36' x 30deg.13'
1/4" Tele: 4deg.7' x 3deg.6'
|Minimum Object Distance (M.O.D.)||Infinity - 0.3m|
|Object Dimensions||(HxV at MOD in mm)
1/3" Wide: 304x228
1/3" Tele: 54x41
1/4" Wide: 228x171
1/4" Tele: 41x31
|Back Focal Distance||7.5mm (in air)|
|Exit Pupil Position||-43mm (from image plane)|
|Dimensions (Dia.xL)||1.6x2.3" (41x59mm)|
|Weight||0.2 lbs / 0.09 kg|
