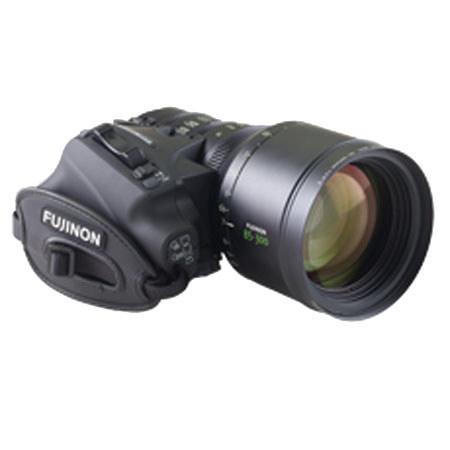

Fujinon 85-300mm T2.9 PL Mount Cabrio Compact Zoom Lens
What's Included With This Item:
- Fujinon 85-300mm T2.9 PL Mount Cabrio Compact Zoom Lens
- Detachable Digital Drive Unit
- Fujinon 1 Year Parts & Labor Warranty
While the Fujinon PL 85-300 is similar in size and weight as the PL 19-90, its longer focal length makes it ideal for shooting documentaries, nature and wildlife, and car commercials, among other demanding production scenarios. The PL 85-300 offers a focal length of 85-218mm at T2.9 and 300mm at T4.0, with 200-degree focus rotation.
Designed using the latest optical simulation technology, the PL 85-300 Cabrio not only offers exceptional optical performance in the center of the image but in the corners of the frame as well. Like the highly acclaimed PL 19-90 Cabrio, the PL 85-300 is equipped with the same indispensable features including flange focal distance adjustment, a MOD of 1.2m, a macro function for objects as close as 97cm (38-inches), and covers a 31.5mm diagonal sensor size.
The digital servo's 16-bit encoding assures operators that all lens data output such as the position of the zoom, iris, and focus is extremely accurate and the lens supports Lens Data System (LDS) and /i metadata formats. Like the PL 19-90 Cabrio, the new PL 85-300 features an exclusive detachable servo drive unit, making it suitable for use as a standard PL lens or as an ENG-style lens. And the PL 85-300 can be controlled using cinema industry standard wireless controllers as well as existing FUJINON wired and wireless units.
|Camera Format||PL Mount|
|Maximum Photometric Aperture T-No.||1 : 2.9 (85-218mm)
1 : 4.0 (300mm)
|Focus Rotation (degrees)||200|
|Zoom Rotation (degrees)||120|
|M.O.D. from Image Plane||1.2m|
|Object Dimensions at M.O.D (16:9)||85mm 274 x 154mm
300mm 79 x 44mm
|Angular Field of View||85mm 18°21' x 10°23'
300mm 5°14' x 2°57'
|Macro||Available as standard|
|Diameter x Length||4.5 x 9.8" (114 x 249mm)|
|Weight||6.6 lbs (3.0kg) with Drive
5.5 lbs (2.5kg) without Drive
