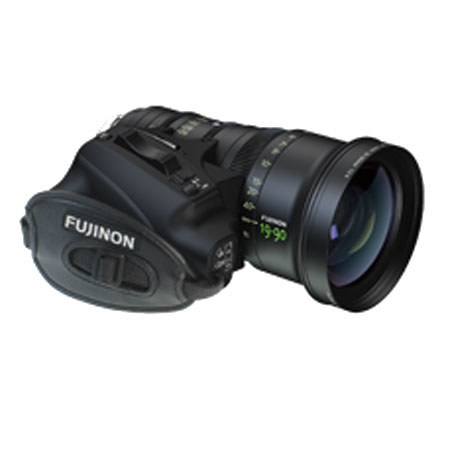

Fujinon 19-90mm T2.9 PL Mount Cabrio Compact Zoom Lens
What's Included With This Item:
- Fujinon 19-90mm T2.9 PL Mount Cabrio Compact Zoom Lens
- Detachable Digital Drive Unit
- Fujinon 1 Year Parts & Labor Warranty
Ways to Save
The Fujinon PL 19-90 Cabrio (ZK4.7x19) features an exclusive detachable servo drive unit, making it suitable for use as a standard PL lens or as an ENG-Style lens. The ZK4.7x19 also features flange focal distance adjustment, macro function, and is LDS (Lens Data System) and /i metadata compatible. With a 19-90mm focal range and weight of only 2.7kg including servo motors, this lens has the longest focal range available in a light weight zoom.
Videographers used to shooting video in a typical ENG-style will be very comfortable with the servo. Cinematographers will also be right at home with this lens. With the detachable drive removed, the lens is set to accept industry standard cine motors and matte boxes. Plus, the lens has all the lens data output that appeals to a Cine-style shooter. LDS and /i metadata compatibility is very useful when you want to record the position information of zoom, iris and focus for computer animation and other uses.
The digital servo on the PL 19-90 has 16-bit encoding, so operators can be assured that all lens data output is extremely accurate. The PL 19-90 covers 31.5mm sensor size on a digital cinema style camera. While sensors on standard broadcast cameras are all the same size, sensors on digital cine cameras vary greatly. This new zoom ensures the image captured will cover large sensors for optimal, full-frame resolution. A nine-blade iris part of the design as well, creating the most natural-looking imagery possi ble.
Barrel markings are luminous for visibility in dark shooting situations. Distances are listed in feet or meters and can be changed in the field. The PL 19-90 can be controlled using cinema industry standard wireless controllers, as well as existing Fujinon wired and wireless units. Whether you are from a film background or a video one, the Premier PL 19-90 offers uncompromising quality and unprecedented flexibility.
|Camera Format||PL Mount|
|Maximum Photometric Aperture T-No.||1 : 2.9|
|Focus Rotation (degrees)||200|
|Zoom Rotation (degrees)||120|
|M.O.D. from Image Plane||0.85m|
|Object Dimensions at M.O.D (16:9)||19mm 915 x 515mm
90mm 193 x 109mm
|Angular Field of View (16:9)||19mm 71°41' x 44°14'
90mm 17°20' x 9°48'
|Diameter x Length||4.5 x 8.8" (114 x 223mm)|
|Weight||6 lbs (2.7kg)|
