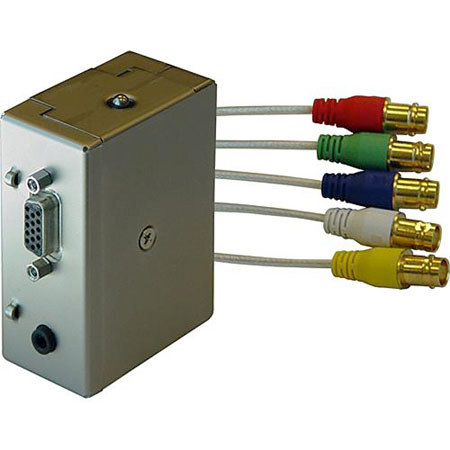

Furman Sound Panamax MIW-VGA In Wall Low Voltage Module

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

About this item

The Furman Sound MAX In-Wall VGA Module inserts into any MIW-POWER unit to protect against surges on both signal and power lines; thus, eliminating potential grounding problems by creating an Isolated Ground Reference for the remote equipment. The MIW-VGA accepts RGBHV, component video and/or stereo audio signal lines running between source components and remote equipment.

Devices connect to a 15 pin, high-density D-sub connector on the face of the module. A 3.5mm stereo mini-jack is provided for 12V triggering and IR signal transmission. Cabling inside the wall connects to positive-lock BNC connectors. Protect multiple signal lines with one module and the installation flexibility the MIW-VGA delivers.

Key Features

  • Low Voltage module for RGBHV
  • Connect devices to 15 pin high-density D-Sub connector on face of module
  • 3.5 mm Stereo mini-Jack for 12 Volt triggering and IR signal transmission
  • Use with MIW-POWER family of products, such as the MIW-DUAL SIGNAL BAY

Technical Specs

UL Listed (UL497B) Yes
Power Cord No
Application Custom Home Theater Systems
Wires Protected 5 RG179U cables
Protection Mode Signal/Sheath to Ground
Clamping 15V/9V
Attenuation <0.6db, 0-38MHz, <1.9dB at 100MHz
3.5MM Jack Stereo Audio - L/R, 3 Wire RS 232, IR Control
Dimensions (L x W x H) 5.5 x 1.19 x 2.88 in / 13.97 x 3.02 x 7.31 cm
Weight 0.60 lbs / 0.27 kg
