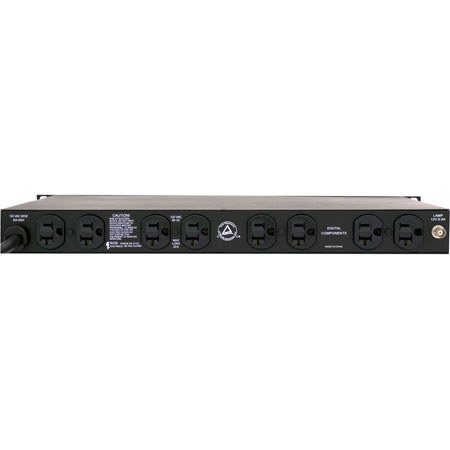

Furman Sound P-8 PRO II 8-Outlet Power Conditioner & Surge Protector
Furman Sound

Furman Sound P-8 PRO II Advanced Level 8-Outlet Power Conditioner & Surge Protector

SKU: FUP8PRO2 MFR: P8-PROII
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$269.95
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Furman Sound P-8 PRO II 8-Outlet 20 Amp Power Conditioner & Surge Protector offers advanced and comprehensive transient voltage surge suppression. Furman's proprietary Linear Filtering Technology (LiFT) suppresses AC noise evenly, assuring maximum performance from your system. SMP circuitry offers the highest degree of protection against electrical surges and spikes and does this without sacrificing itself or any of its components. The Extreme Voltage Shutdown circuit automatically turns off the unit when it is fed 140 volts or higher, protecting itself and connected equipment from the extreme voltage.

Key Features

  • SMP provides the highest level of protection available
  • LiFT significantly reduces AC line noise
  • E.V.S. protects equipment from dangerous overvoltage conditions
  • Zero ground contamination circuitry assures delivery of pure AC
  • BNC connector on the rear panel allows connection of any standard gooseneck lamp
  • Eight rear panel outlets and one front panel outlet
  • 20 amp rating, with high inrush capable magnetic circuit breaker
  • Front panel master power switch protected by hinged panel to prevent accidental power off
  • 10 foot, 12 gauge heavy-duty power cable

Technical Specs

Current rating 20 amps
Operating Voltage 90 to 140 VAC
Over Voltage Shutdown 140 VAC typically
Spike Protection Modes Line to neutral, zero ground leakage
Spike Clamping Voltage 188 VAC peak @ 3,000 Amps, 133 VAC RMS (tested to UL-1449 and USA / CIDA A-1-1, 6,000 VAC @ 3,000 Amps)
Response time 1 nanosecond
Maximum surge current 6,500 amps
Noise attenuation 10 dB @ 10 kHz, 40 dB @ 100 kHz, 100 dB @ 10 MHz
Linear attenuation curve from 0.05 - 100 Ohms line impedance
Construction Steel chassis, .125" brushed and black anodized aluminum front panel; glass epoxy printed circuit boards
Power consumption 6 watts
Safety Agency Listings CE, NRTL-C
Dimensions (H x W x D) 1.75" x 19" x 10.5" / 4.4 x 48.2 x 26.6 cm
Weight 11 lbs (5 kg)
