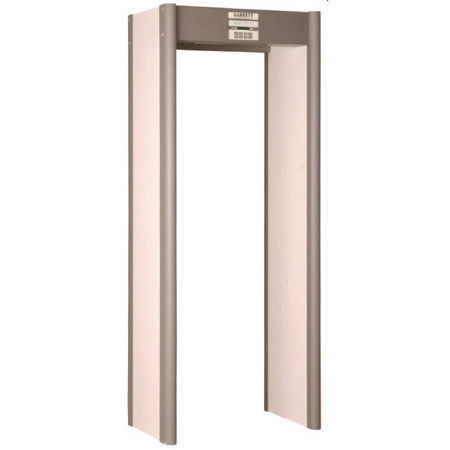

Garrett CS 5000 Walk-Through Metal Detector

SKU: GA1167410 MFR: 1167410
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$4,495.00 List Price

Our Price

$3,034.13 $118 per week
Free Shipping
Add to Wishlist

About this item

The Garrett CS 5000 30" Walk-Through Metal Detector is one of the industry's most economical and effective walkthrough metal detector. With microprocessor technology, it offers greater sensitivity for detecting weapons from the archway to the floor. The CS 5000 uses microprocessors in both detection and control circuits to ensure enhanced sensitivity and programming flexibility.

The CS 5000 offers an almost infinite number of precise and resettable program/sensitivity settings, enabling it to respond more effectively to weapons while ignoring harmless objects. Uniform detection from archway to floor meets the demanding needs of today's security professionals around the world. Eight touchpad controls perform all control functions on the CS 5000 and clearly report all calibration and operating information with alphanumeric displays. The Access Control Panel is designed for use by authorized personnel with specific security codes. It allows authorized users to change settings such as detection Program and Sensitivity.

Security of the detector's settings is maintained with a non-resettable sequence code, which indicates every attempt at access to the settings. A tamper alarm sounds within 10 seconds after the Access Touchpad is pressed, unless a proper access code is entered. The CS 5000 includes 20 standard programs, which are maintained in an electrically erasable non-volatile memory for the ultimate in security application versatility.

The unit maintains all settings even when disconnected from power and does not require recalibration when the unit is turned OFF and back ON. No battery is required for memory retention. When the unit is in operation, a self-test of all systems is performed continuously with any failures or problems reported on the LCD.

What's Included With This Item

  • Installation Instructions
  • Garrett Warranty

Key Features

  • Microprocessor technology in detection and control circuitry-includes 20 standard application programs
  • Overhead control unit: LCD, alarm light, LED bar graph and control touchpads-plus all wiring, connections and electronics-are integrated into a single overhead compartment to eliminate exposure of wires and the external control box
  • Uniform coverage from archway to floor
  • Greater sensitivity for detecting metal weapons-maximum of 200 distinct sensitivity levels
  • Continuous online report of operating status
  • Tamper proof settings through computerized access codes
  • Three levels of ankle-boost sensitivity
  • Self diagnostic program: complete and automatic
  • Noise reduction to prevent false alarms
  • Rugged, lightweight design for simple maintenance and easy portability
  • Easy assembly: designed with only four (4) pieces and eight (8) screws. Simple-to-follow instructions
  • Optional battery pack for use anywhere; provides up to 20 hours of backup
  • Weatherproofing/Foreign Object Protection Standards: Meets IP 31, IEC Standard. "Degrees of Protection provided by Enclosures," IEC 529
  • Interference Suppression: 100% sensor coil Faraday shielding; special Garrett built-in circuitry for noise suppression and ignoring x-ray monitor horizontal sync
  • Traffic Counter: Built-in and resettable with current reading available on LCD panel
  • Synchronization: Multiple channels permit several CS 5000s and other Garrett detectors to operate simultaneously in close proximity
  • Alarms: Ready light indicates unit is operational; alarm lights and audible alarms are activated when the target amount of metal is detected; LED bar graph indicates amplitude of alarm signal

Technical Specs

Operating Temperatures -4deg.F (-20deg.C) to + 149deg.F (65deg.C) without Battery Backup Module or CMA; -4deg.F (-20deg.C) to + 140deg.F (60deg.C) with Battery Backup Module and/or CMA; Humidity: To 95% noncondensing.
Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 55 watts; no rewiring, switching or adjustments required. Power supply meets UL, CSA, TUV and VDE standards
Construction Attractive scratch and mar-resistant laminate with resilient end caps; control panel and cross members made of heavy duty aluminum
Control Outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
Infrared Sensor Improves analysis of detection signal; increases throughput; helps eliminate "false alarms" and also provides accurate traffic counter.
Masking Programs designed to eliminate the problem of dissimilar targets canceling each other
Dimensions (W x H x D) Passageway Interior: 30 x 80 x 23" / 76.2 x 203.2 x 58.42cm
Exterior: 35 x 87 x 23" / 88.9 x 220.98 x 58.42cm
