Garrett PD 6500i Enhanced Pinpoint Walk-Through Metal Detector, 33 Pinpoint Zones, TSA Certified

SKU: GA1168411 MFR: 1168411
Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$5,495.00 List Price

Our Price

Free Shipping
Add to Wishlist

About this item

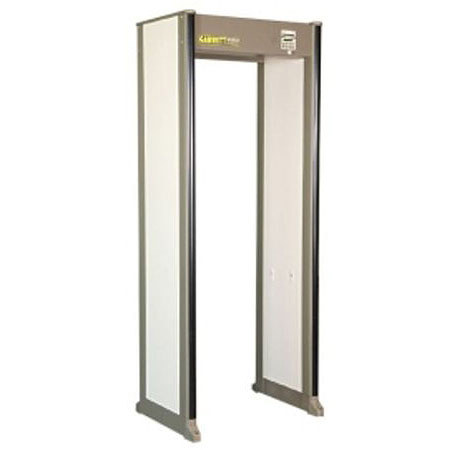

The Garrett PD 6500i 30" Walk-Through Metal Detector is the industry leader with superior pinpoint technology and unmatched discrimination features. It is designed for maximum patron output without compromising security, the PD 6500i offers exclusive multiple target pinpointing with 33 distinct zones for full target coverage on the left, center and right side of the body from head to toe.

Entry pacing lights allows smooth efficient traffic to flow through with easy-to-view symbols. The PD 6500i Walk-Through Metal Detector is easy to install for quick setup and has audible and visual LED lights that signal when a target has been detected.

What's Included With This Item

  • Installation Instructions
  • Garrett Warranty

Key Features

  • 33 pinpoint zones to precisely identify multiple target locations from head to toe on the left, center and right sides of the body
  • 21 standard programs for security application versatility
  • Dual detection: with transmitters and receivers in each panel, the PD 6500i is the equivalent of two detectors in one. By scanning from both sides, the PD 6500i provides superior detection, uniformity and performance
  • Advanced broadband detection technology provides superior target analysis, ferrous and non-ferrous weapons detection, discrimination and higher throughput
  • Directional counter with four settings for counting (forward, reverse, subtract in reverse and bi-directional)
  • Superior versatility: selectable settings designed for airports, courthouses, prisons, schools, facilities, special events, mass transit, loss prevention and many other applications
  • Networking ability: CMA provides networking, remote control, monitoring, data analysis and group management
  • Meets IP55 standards for moisture and foreign matte protection
  • Pacing lights at the entrance display universal "wait" and "proceed" symbols for traffic control
  • Programs: Twenty-one (21) independent programs designed to meet all installation- specific requirements including ECAC requirements for European airports and TSA requirements for U.S. airports
  • Interference Suppression: Advanced analog and digital filtering-as well as adjustable operating frequencies-eliminate the potential effects from x-ray units, radios and other electrical interference sources
  • Directional Counter: Counter tracks the number of patrons that have passed through the detector, the direction of patrons, the number of alarms and calculates alarm percentage. Four directional count settings (forward, reverse, subtraction reverse and bi-directional
  • Random Alarm Feature: Provides ability to randomly alarm on a selected percentage of non-alarming persons; adjustable from 0 to 50 percent
  • Alarms: Audible tone and volume adjustable. Bright LED visual alarm
  • Tamper-Proof: All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics

Technical Specs

Construction Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum
Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 55 watts; no rewiring, switching or adjustments required
Target Pinpointing Lights Thirty-three (33) distinct zones are displayed with two (2) independent columns of LEDs located on exit side of PD 6500i
Multi-Unit and Multi-Brand Compatibility 2,300 selectable operating frequencies and multiple channels allow the PD 6500i to operate in close proximity to other PD 6500is as well as with non-Garrett walk-through
Control Outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices
Operating Temperatures 4deg.F (-20deg.C) to + 158deg.F (70deg.C); Humidity: To 95 noncondensing
Meets international standards TSA - U.S. airports
ECAC - European airports
STAC - French airports
Aena - Spanish airports
CNAC - Japanese airports
DfT - U.K. airports
Dimensions (W x H x D) Passageway Interior: 30 x 80 x 23" / 76.2 x 203.2 x 58.42cm
Exterior: 35 x 87 x 23" / 88.9 x 220.98 x 58.42cm
Weight 143 lbs. (64.8 kg)
