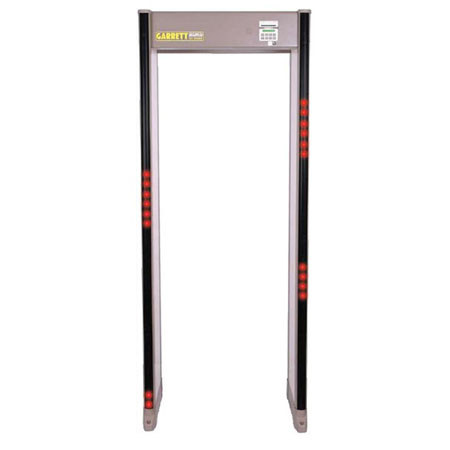

Garrett PD 6500i EZL Series Walk-Through Metal Detector, 30" Interior Passageway

SKU: GA1168412 MFR: 1168412
Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$5,745.00 List Price

Our Price

Free Shipping
Add to Wishlist

About this item

The Garrett PD 6500i EZL Series 30" Walk-Through Metal Detector is the industry leader with superior pinpoint technology and unmatched discrimination features. Designed for maximum patron output without compromising security, the PD 6500i EZL offers zone lights on both the entry and exit sides, allowing the operator to view the location of the alarmed object from any position. Entry pacing lights allows smooth efficient traffic to flow through with easy-to-view symbols. The PD 6500i EZL Walk-Through Metal Detector is easy to install for quick setup and has audible and visual LED lights that signal when a target has been detected.

What's Included With This Item

  • Installation Instructions
  • Garrett Warranty

Key Features

  • Easy to assemble, using only 8 screws and 3 internal cable connections
  • Zones lights on both the entry and exit sides, allowing the operator to view the location of the alarmed object from any position
  • Audible alarm and visual LED lights signal when a target has been detected
  • LCD display, alarm lights, LED bar graphs and control touchpad's plus all wiring, connections and electronics are integrated into a single, lockable overhead compartment which eliminates exposure of wires and external control box
  • Entry pacing lights which allow smooth, efficient traffic flow with easy-to-view eye-level symbols on the entrance side of each panel
  • Dual detection with transmitter and receivers that scans from both sides for superior detection, uniformity and protection
  • Multi-dimensional coil design provides unmatched detection of potentially lethal metal items such as guns, knives and other flat and rod-shaped weapons regardless of location and orientation
  • Directional counter with four settings for patron counting (forward, reverse, subtraction reverse and bi-directional)
  • Advanced broadband detection technology that provides superior target analysis, ferrous and non-ferrous weapons detection, discrimination and higher patron throughput
  • Superior versatility designed for airports, courthouses, prisons, schools, facilities, special events, mass transit, loss prevention and many other applications
  • Can be mounted using the optional adhesive floor mounting kit, which can be used to protect valuable flooring surfaces while preventing unit movement

Technical Specs

Operating Temperatures -4deg.F (-20deg.C) to + 158deg.F (70deg.C); Humidity - To 95% noncondensing
Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 55 watts; no rewiring, switching or adjustments required. Power supply meets UL, CSA, TUV and VDE standards
Weatherproofing/Foreign Standards Meets IP 55, IEC Standard. "Degrees of Protection provided by Enclosures," IEC 529
Target Pinpointing Lights Thirty-three (33) distinct zones are displayed with two (2) independent columns of LEDs located on exit side of PD 6500i
Programs Eighteen (18) independent programs designed to meet all installation specific requirements including European Airports and TSA's Enhanced Metal Detector (EMD) requirements for all U.S. airports
Multi-Unit and Multi-Brand Compatibility 2,300 selectable operating frequencies and multiple channels allow the PD 6500i to operate in close proximity to other PD 6500is as well as with non-Garrett walk-through
Interference Suppression Advanced analog and digital filtering "as well as adjustable operating frequencies "eliminate the potential effects from x-ray units, radios and other electrical interference sources
Traffic Counter Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage
Random Alarm Feature Provides ability to randomly alarm a selected percentage of non-alarming persons; adjustable from 0 to 50 percent
Alarms Audible tone and volume adjustable. Bright LED visual alarm
Pacing Lights International symbols located at entrance
Tamper-Proof All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics
Control Outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices
Construction Attractive scratch and mar-resistant laminate. Detection Heads and Support - Heavy duty aluminum
Passageway Interior Dimensions 30" x 23" x 80"/76.2 x 58.42 x 203.2 cm (W x D x H)
Passageway Exterior Dimensions 35" x 27" x 87" /88.9 x 68.58 x 220.98 cm(W x D x H)
