Gefen DVI Dual Link 2CAT6 Extender

See all Gefen items
SKU: GE2CAT6DL MFR: EXT-DVI-2CAT6DL
Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify when in stock

Our Price

$1,499.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

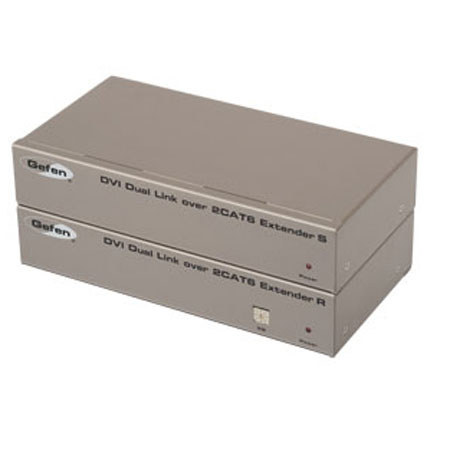

Gefen DVI Dual Link Extender: Picture 1 regular $1,499.00

About Gefen DVI Dual Link Extender

Extend Dual-Link DVI over two CAT-6a cables:
• The Dual-Link DVI over 2CAT6 extends any dual-link DVI source up to 200 feet (60meters) using two CAT-6a cables or up to 150 feet (45 meters) using two CAT-5e cables, at resolutions up to 3840 x 2400. Extending dual-link resolutions over standard DVI cables have a limitation of 15 feet.

•Exceeding this distance normally requires additional repeaters and/or boosters. The Dual-Link DVI over 2CAT6 Extender provides an easy to install solution using CAT-6a cables. This product also extends RS-232 using the same CAT-6a cable, allowing access and control of devices using RS-232.

How It Works:
• Place the DVI Dual Link over 2CAT6 Extender Sender unit next to the dual-link DVI source. Use the included dual-link DVI cable to connect the source to the Sender unit. Connect the Receiver unit to the display with a dual-link DVI cable. Connect an RS-232 serial cable from the RS-232 port on the Sender unit tothe RS-232 control device.

•Connect the RS-232 port on the Receiver unit to the RS-232 host device. Use two CAT-6a cables, up to 200 feet (60 meters), to connect the Sender unit to the Receiver unit. Connect the included locking power supplies to the Sender and Receiver unit, then connect both power cables to available electrical outlets.

Note: This product supports HDCP pass-through only when using a single-link source.

Gefen DVI Dual Link Extender Features

  • Supports dual-link resolutions up to 3840 x 2400
  • EDID management for Local and Pass-through modes
  • Trim pot adjustment to compensate for cable skew
  • Firmware upgradable via RS-232
  • Locking Power Supplies
  • Rack-mountable

Gefen DVI Dual Link Extender Specifications

Maximum Pixel Clock:
2 x 165 MHz
Input Video Signal:
1.2V p-p
Input DDC Signal:
5V p-p (TTL)
Video Input Connector (Sender):
(1) DVI-I, 29-pin, female
Video Output Connector (Receiver):
(1) DVI-I, 29-pin, female
Link Connectors (Sender / Receiver):
(2) RJ-45
Serial Port (Sender):
DB-9, female
Serial Port (Receiver):
DB-9, male
Power Supply (Sender / Receiver):
5V DC, Locking
Power Consumption:
10W per unit (max.)
Dimensions (W x H x D):
8.4" x 1.7" x 4.3"(213mm x 43mm x 109mm)
Shipping Weight:
4.5 lbs.(2 kg)
Other:
Operating Temperature: 0 - 40 °C
Mfr #
EXT-DVI-2CAT6DL
SKU
GE2CAT6DL
