Gefen DVI to HD-SDI Single Link Video Scaler, 165MHz Input Video Bandwidth

Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist In Stock

About this item

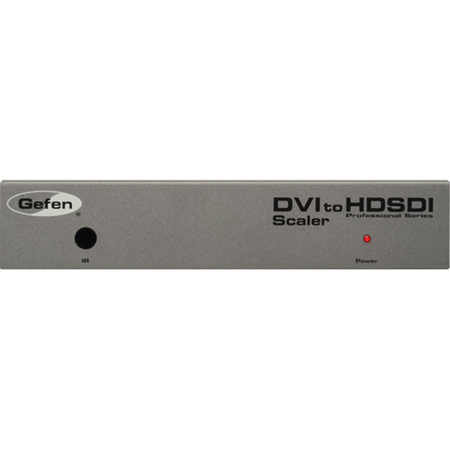

The Gefen EXT-DVI-2-HDSDISSL DVI to HD-SDI Scaler is a device that scales DVI-D input signals to an SD/HD-SDI single-link output. This unit supports resolutions up to 1080p and also includes Gennum's VXP Scaler onboard for superior picture quality. This unit also includes a fully integrated sprite-based multi-plane OSD controller and frame-rate conversion to and from any refresh rate. A maximum active image size of 2048 samples x 2048 lines PBP processing for various combinations of video and graphics with alpha blending is also included, as is a pattern mode with color bars and cross-hatch patterns.

Other features include color & gamma correction, noise reduction, detail enhancement, aspect ratio selection, pattern generator mode, multiple-language menu support and custom-timing output mode. This unit can be controlled with an IR remote control or via an RS-232 connection. Menu options are available in English and French.

What's Included With This Item

  • Gefen DVI to HDSDI Single Link Scaler
  • 6 ft DVI Cable ( M-M)
  • 5V DC Locking Power Supply
  • RMT-8HDS-IR Remote Control
  • DB9 6 Feet Serial Cable M-F
  • Set of Rack Ears
  • User Manual
  • Gefen 2 Years Warranty

Key Features

  • 10-bit resolution for greater precision and dynamic range
  • Proprietary 10-bit motion adaptive video de-interlacing with edge interpolation for HD / SD formats
  • Advanced noise reduction and detail enhancement
  • Max. active image size of 2048 samples x 2048 lines PBP processing for various combinations of video and graphics with alpha blending
  • Fully integrated sprite based multi-plane OSD controller
  • Frame rate conversion to / from any refresh rate
  • Pattern mode w/ color bars & cross-hatch patterns
  • Color correction
  • Noise Reduction
  • Detail Enhancement
  • Brightness Adjustment
  • Gamma Selection
  • Aspect Ratio Select
  • Custom Timing output mode
  • French/English Menu Set
  • RS-232 upgradeable firmware
  • RS-232 and/or IR Control
  • Genlock capable

Technical Specs

Input Video Bandwidth 165 MHz
Output Video Bandwidth 1.485 Gbps
Maximum Input Resolution 1920 x 1200 @ 24/30
Maximum Output Resolution 2048 x 1080 @ 24/30
DVI Connector DVI-I 29 pin female
SDI/HDSDI Connector BNC female
Data Port DB-9; RS-232 serial communication
Input/Output Connector BNC female
Power Supply 5V DC w/ locking power connector
Power Consumption 10 W
Dimensions (W x H x D) 8.4 x 1.7 x 6.7" / 21.33 x 4.31 x 17.01 cm
