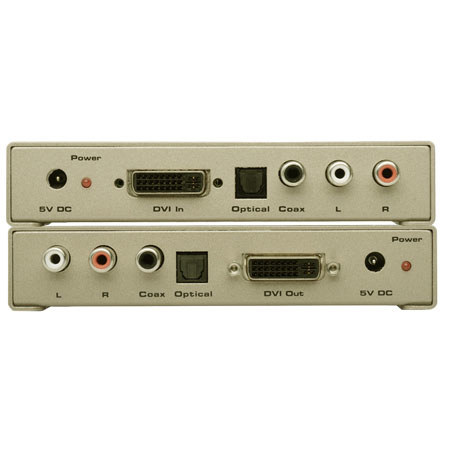

Gefen DVI Audio CAT5 Extender, 1.65GHz Bandwidth, 1.2V p-p Input Video Signal

See all Gefen items
SKU: GEAUDIOCAT5 MFR: EXT-DVI-AUDIO-CAT5
Gefen : Picture 1 thumbnail Gefen : Picture 2 thumbnail Gefen : Picture 3 thumbnail

Our Price

$769.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Gefen

At times, when installing a home theater, the limits of cable length can become a problem when distancing and separating components. All cables types suffer from issues of signal degradation, limited maximum length or the exorbitant cost of long cable runs. To address this, Gefen has created the DVI-AUDIO-CAT5 DVI Audio Extender which has the capability to convert and broadcast DVI/HDMI video, TOSlink optical or S/PDIF coaxial digital audio.

This signal can be transmitted over two inexpensive and common CAT5 network cables to connect the sender and receiver units over great distances. The signal path is able to maintain complete stereo or multi-channel audio formats (DTS, Dolby Digital, 8.1 etc.) from the source with a maximum range of 150 feet (45.7 m.).

Gefen Features

  • Extends any DVI & Digital or Analog Audio compliant device up to 200 feet from the computer
  • Uses CAT-5e cable for DDC and control signals
  • Supports Digital 8.1(DTS, Dolby Digital, etc.)
  • Audio and video are transmitted digitally over the CAT-5e cable for zero signal loss
  • Supports resolutions up to 1080p, 2K and 1920 x 1200
  • Supports DDWG standard for DVI compliant monitors
  • HDCP compliant

Gefen Specifications

Maximum Pixel Clock
165 MHz
Digital Audio Input/Output
S/PDIF (Digital Coax), Optical TOSlink
Analog Audio Input/Output
RCA Left and Right
S/PDIF (Digital Coax)
96 kHz Performance
Video Amplifier Bandwidth
165 MHz
Single Link Range
1080P/1920 x 1200
Input Video Signal
1.2 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Input/Output DVI Connector
DVI-I (29 pin) female, Supports ONLY Digital Signals
Link Connector
RJ-45
Power Supply
(2) 5Vdc Power Supplies / 10W each power consumption (max)
Dimensions (W x H x D)
3.3" x 5.5" x 1" (8.3 x 13.9 x 2.5 cm)
