Gefen

Gefen 1x8 VGA CAT5 Distribution Amplifier, 350MHz Bandwidth, 1.2V p-p Input Video Signal

SKU: GECAT5148S MFR: EXT-VGA-CAT5-148S
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$480.00 $19 per week
Free Shipping
Qty:
Add to Wishlist

About this item

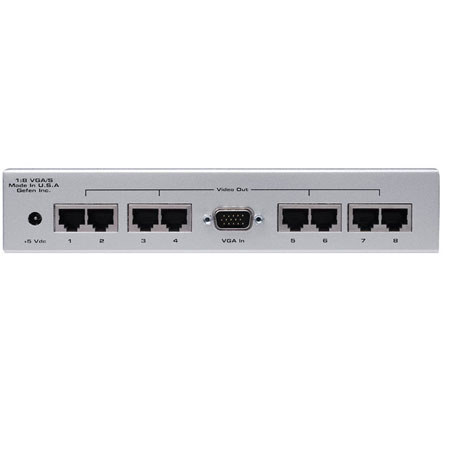

The Gefen EXT-VGA-CAT5-148S 1x8 VGA CAT5 Distribution Amplifier (Sender) is one piece of a larger system that allows you to extend the distance of signal transmissions up to 330 feet away from your equipment using CAT-5 cables. This unit works in conjunction with 1x8 VGA CAT5 Distribution Receiver devices. It connects to those units and sends them VGA signals flawlessly despite the extended distance between equipment.

The 1x8 VGA CAT5 Distribution Sender accepts (1) source feed and outputs it simultaneously to (8) separate channels. An individual 1x8 VGA CAT5 Distribution Receiver is required to receive each of these (8) output channels. This unit will also extend a Component video signal or Composite video with left-right analog audio (separate VGA-to-Component cables and VGA female-to-female adapter required). This unit maintains 1920 x 1200 resolution video.

What's Included With This Item

  • Gefen 1x8 VGA CAT5 Distribution Amplifier
  • 6' VGA Cable (M-F)
  • 5V External Power Supply
  • Gefen 2 Years Warranty

Key Features

  • Easily distribute one source to eight simultaneous displays
  • Extends video signals up to 330 feet over CAT-5e
  • Supports component video distribution
  • Maintains 1920 x 1200 resolution video
  • Allows eight monitors to be connected to the same video source at the same time

Technical Specs

Video Amplifier Bandwidth 350 MHz
Input Video Signal 1.2 Volts p-p
Input Sync Signal 5 Volts p-p (TTL)
Horizontal Frequency Range 15 - 70 KHz
Vertical Frequency Range 30 - 170 Hz
Video In HD-15
Video out HD-15
Link Connector RJ-45 Shielded
Power Supply 5V DC
Power Consumption 30W (max.)
Dimensions: Sender (W x H x D) 8.5" x 1.75" x 4.5" (21.6 x 4.4 x 11.4 cm)
Dimensions: Receiver (W x H x D) 1" x 1" x 4" (2.5 x 2.5 x 10 cm)
