Gefen HDMI to Composite Scaler
Gefen

Gefen HDMI to Composite Scaler, Up to 1080p Resolution, 1.2V p-p Input Video Level

SKU: GECOMPSVIDS MFR: GTV-HDMI-2-COMPSVIDS
What's Included
What's Included With This Item:
  • Gefen HDMI to Composite Scaler
  • 6 foot HDMI Cable (Male-Male)
  • 5V DC Power Supply
  • Gefen 2 Years Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$199.99
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

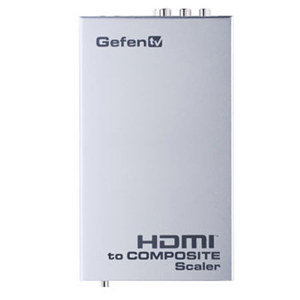

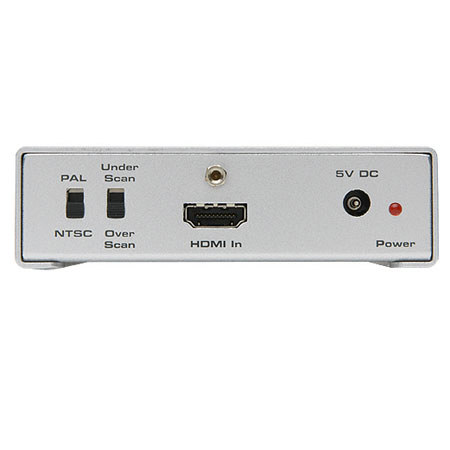

The Gefen HDMI to Composite Scaler allows you to transform HDMI video in resolutions from 480p to 1080p into composite video or S-video format. The scaled video is properly sized for optimal viewing on your display.

What's Included With This Item

  • Gefen HDMI to Composite Scaler
  • 6 foot HDMI Cable (Male-Male)
  • 5V DC Power Supply
  • Gefen 2 Years Warranty

Key Features

  • HDMI to Composite / S-Video conversion plus scaling
  • Supports HDTV input resolutions of 480p up to 1080p at 50/60 Hz and computer resolutions from VGA to UXGA at 60Hz
  • Outputs 480i / 576i signal for Composite/S-Video
  • Supports both NTSC and PAL formats

Technical Specs

Maximum Pixel Clock 225 MHz
Input Video Signal 1.2V p-p
Input Sync Signal 5V p-p (TTL)
Video In/Out (1) HDMI 19-pin Female, type "A"
Video In/Out (1) Composite RCA female jack / (1) S-Video female Mini-DIN connector
Audio In/Out (2) L/R RCA audio, (1) S/PDIF digital audio jack, female coaxial
Horizontal Frequency Range 31-70 KHz
Vertical Frequency Range 50-60 KHz
Power Consumption 7.5 Watts (maximum)
Power Supply 5V DC
Dimensions (W x H x D) 4.1" x 7.1" x 1.2" (10.4 x 18 x 3cm)
