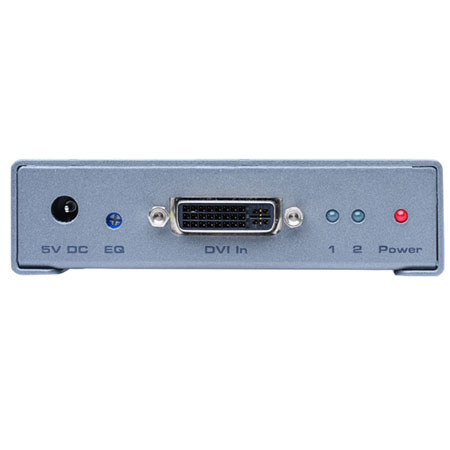

Gefen 2 Dual-Link DVI Video Splitter, 2 x 165MHz Bandwidth, 1.2V p-p Input Video Signal

Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$236.99 $10 per week
Free Shipping
Add to Wishlist

About this item

The Gefen 2 Dual-Link DVI Splitter allows you to connect your DVI source to (2) or more Dual-Link DVI displays at the same time. This flexible distribution hub features (1) input and (2) outputs, but can accommodate multiple displays when (2) or more DVI DL splitters are connected together to achieve greater distribution.

What's Included With This Item

  • Gefen 2 Dual-Link DVI Splitter
  • 5V Power Supply
  • 6 ft Dual Link DVI Cable (M-M)
  • User's Manual
  • Gefen 2 Years Warranty

Key Features

  • Splits a dual link DVI signal to two or more dual link DVI displays
  • Allows simultaneous display
  • Supports resolutions up to 1080p, 2K and 3840 x 2400
  • Supports HDCP pass-through for output one
  • Supports DDWG standard for DVI compliant monitors

Technical Specs

Maximum Pixel Clock 2 x 165 MHz
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Dual Link Maximum Resolution 3840 x 2400
DVI Input/Output Connector DVI-I (29 pin) female (digital only)
Operating Temperature range +5 to +45 Deg. Celsius
Operating Humidity range 5 to 65% RHL, non-condensing
Storage Temperature range -20 to +70 Deg. Celsius:
Storage Humidity range 5 to 95% RHL, non-condensing
Power Supply 5V DC
Power Consumption 8.15 Watts (max)
Dimensions (W x H x D) 4.06 x 1.06 x 3.23" / 10.31 x 2.69 x 8.20 cm
