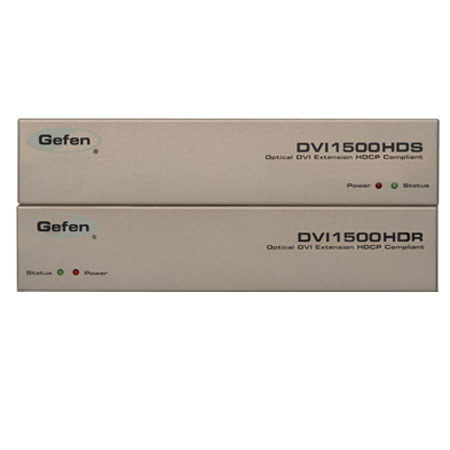

Gefen EXT-DVI-1500HD DVI Over Fiber Extender

SKU: GEDVI1500HD MFR: EXT-DVI-1500HD
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$399.99
Free Shipping
Qty:

Add to Wishlist

About the Gefen EXT-DVI-1500HD

The Gefen EXT-DVI-1500HD DVI Over Fiber Extender is a distribution system that allows you to extend a DVI signal up to 1640' from its source using fiber-optic cabling. The unit uses 4-strand multi-mode LC-LC fiber-optic cable.CAT-5 Ethernet cabling can be used for DDC and control signals. It supports resolutions up to 1080p, 2k and 1920 x 1200. Also supported are HDCP and DDWG standards for DVI monitors. This device can be used in a desktop configuration or placed in a rack with the included rack ears.

Gefen EXT-DVI-1500HD Includes

  • Gefen DVI 1500S Sender Unit
  • DVI 1500R Receiver Unit
  • 2 x 5VDC Power Supplies with Locking Connectors
  • 6' DVI-DL Cable (M-M)
  • Set of Rack Ears
  • Quick-Start Guide
  • Gefen 2 Years Warranty

Gefen EXT-DVI-1500HD Features

  • Extends any DVI device without HDCP up to 1650 feet (500 meters)
  • Extends any DVI device with HDCP up to 330 feet (100 meters) (requires additional CAT-5e Cable)
  • Supports resolutions up to 1920 x 1200
  • Uses a four-strand multimode LC-LC fiber optic cable
  • Uses one CAT-5e cable for DDC and control signals
  • Eliminates computer noise at your workstation
  • Supports DDWG standard for DVI-compliant monitors
  • HDCP compliant (maximum distance is 330 feet with HDCP)
  • Rack-mountable

Gefen EXT-DVI-1500HD Specifications

Maximum Pixel Clock 165MHz
Input Video Signal 1.2V p-p
Input DDC Signal 5V p-p (TTL)
DVI Connector (1) DVI-D 19-pin, female
Video Link Connectors (Sender/Receiver) (4) Type LC Fiber connectors (50µ or 62.5µ)
Fiber Cable CAB-LC-XXX (62.5µ multi-mode)
DDC Link Connector (Sender / Receiver) (1) RJ-45, Shielded
Power Supplies (Sender / Receiver) 5V DC, Locking
Power Consumption 10W (max.) each
Operating Temperature +14 to +122 deg.F (-10 to +50 deg.C)
Storage Temperature -22 to 140 deg.F (-30 to +60 deg.C)
Humidity (Operating) 5% to 80 %
Humidity (Storage) 5% to 95 %
Dimensions (WxHxD) Half Rack: 8.5x1.7x4.3" / 21.59x4.3x10.9 cm
