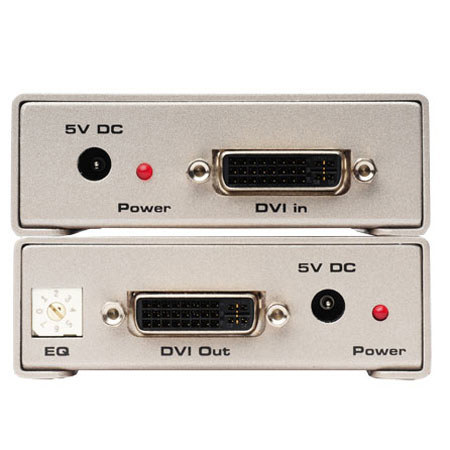

Gefen DVI Video Console/Extender, 165MHz Bandwidth, 1.2V p-p Input Video Signal

See all Gefen items
Gefen : Picture 1 thumbnail Gefen : Picture 2 thumbnail Gefen : Picture 3 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Gefen

The Gefen DVI Over 1 CAT6 Extender will send a single-link DVI video signal over just one (1) CAT-6a cable at distances of up to 200 feet (60m) at 1920x1200@60Hz, or up to 150 feet (45m) using CAT5e cable. Extension of DVI can now be simplified with the use of a single CAT-6a cable. Other solutions use at least 2 CAT5/CAT6 cables to accomplish this. The Gefen DVI Over 1 CAT6 Extender fully supports all of the DVI specification for true compatibility with DVI devices. The Extender's pure digital transmission method insures 100% signal integrity over this single cable extension solution.

Gefen Features

  • Flexible extension of single-link DVI
  • Supports Video Resolutions up to 1080p and 1920x1200@60 Hz
  • Compliant with all of the DVI 1.1 standard and all true DVI-Compliant peripherals
  • Equalizes the video signal and retransmits it in optimal quality regardless of incoming signal quality
  • Eliminates computer noise in the viewing environment
  • Improved compensation for cable skew

Gefen Specifications

Video Amp. Bandwidth
165 MHz
Max. Video Resolution
1920x1200@60 Hz
Input Video Signal
1.2 Volts p-p
Input DDC Signal
5 Volts p-p (TTL)
DVI Input and Output Connectors
(2) 24-pin DVI Female
Link Connector
RJ-45 Shielded
Power Supply
(2) 5V DC / 10W (max)
Dimensions (W x H x D)
3.3 x 1.3 x 3.4" ( 8.38 x 3.30 x 8.63 cm) each unit
