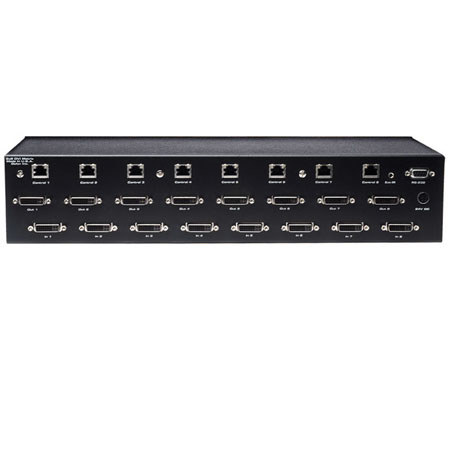

Gefen 8x8 DVI Matrix Video Switch, 165MHz Bandwidth, 1.2V p-p Input Video Signal


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: Temporarily On Backorder Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. Notify me when in stock

Free Shipping

See all shipping options

Gefen : Picture 1 regular $3,499.00

About Gefen

The Gefen 8x8 DVI Matrix is a cross-platform device that allows you to combine (8) DVI computers with (8) DVI displays without networking. This solution is an effective method of creating multiple workstations that can be accessed locally or remotely with a Gefen extender. Once connected, each workstation can access any one of the computers at any time.

Simply connect your computer DVI ports to the switcher's inputs and the DVI displays to the switcher's outputs to begin working. The switcher maintains resolutions up to 1080p, 2K and 1920 x 1200. This unit also supports DDWG standards for DVI monitors. Please note that this unit is intended for use with computers only and is not HDCP-compliant, meaning that copyright-protected material intended for use on traditional video components may not display correctly.

Gefen Features

  • Increases productivity by providing access to eight computers from eight workstations
  • Maintains beautiful, sharp HDTV resolutions up to 1080p, 2K and 1920x1200
  • Long-distance remote control at distances of up to 330 feet using optional wired CAT5 cabled remotes
  • Serial RS232 port for remote control via computer or a control automation device such as Crestron
  • Supports DDWG standards for DVI monitors

Gefen Specifications

Maximum Pixel Clock
165 MHz
Single Link Range
1080p (HDTV) / 1920x1200 (PC)
Input Video Signal
1.2 Volts p-p
Input DDC Signal
5 Volts p-p (TTL)
Remote Control Ports
One RS232 female, One mini-stereo
Rack mountable
2U rack space, rack ears included
DVI Connector
DVI-I 29 Pin Female (digital only)
Power Supply
24V DC
Power Consumption
60 Watts (max)
Dimensions (W x H x D)
17.1 x 3.5 x 7.1" / 43.43 x 8.89 x 18.03 cm
